Colorful CVN B850M GAMING FROZEN V14A DDR5 AMD Motherboard (CVN-B850M-GMFRV14A)

Feature

Exclusive custom white motherboard for CVN series

CVN series customized frost cooling armor, paired with fully covered condensing fins to enhance heat dissipation

Adopting a 10+2+1 phase enhanced power supply design (Dr MOS 60A)

Provide 2 PCIe 5.0 x4 M.2 SSD slots and 1 PCIe 4.0 x4 M.2 SSD slot

Provide 1 rear USB 3.2 5 Gbps Type-1 interface

Provide 1 rear USB 3.2 10 Gbps Type-1 interface

Provide 1 rear USB 3.2 Gen 2 10Gbps Type-C high-speed rear interface

Equipped with Realtek 2.5G high-speed wired network card and WiFi 6 wireless network card, supporting Bluetooth 5.2

Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory

I/O backplane supports one click BIOS upgrade function

Six major protective technologies for more stable product operation

Strict testing of 200 processes ensures quality assurance

PCB atomization process fully upgraded

Specifications

Model : CVN B850M GAMING FROZEN V14A

Product Series : CVN series

Chipset : AMD B850

Processor

Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

Memory

4 DDR5 memory slots, supporting up to 192 GB memory (single slot supports up to 48 GB)

-Supports DDR5-8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)4800(OC)/4600(OC)/4400MHz memory

-Supports Extreme Memory Profile (XMP) memory technology

-Supports EXtended Profiles for Overclocking (EXPO) Memory Technology

-Supports dual-channel memory technology

(*Please visit Colorful's official website www.colorful.cn to check the latest memory compatibility list)"

SATA Ports

3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0 and RAID 1 disk arrays with M.2 NVMe hard disk devices

-M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)

-M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)

-M.2_3 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

(*Whether PCIe 5.0 is supported depends on the CPU of the motherboard)

Board I/O

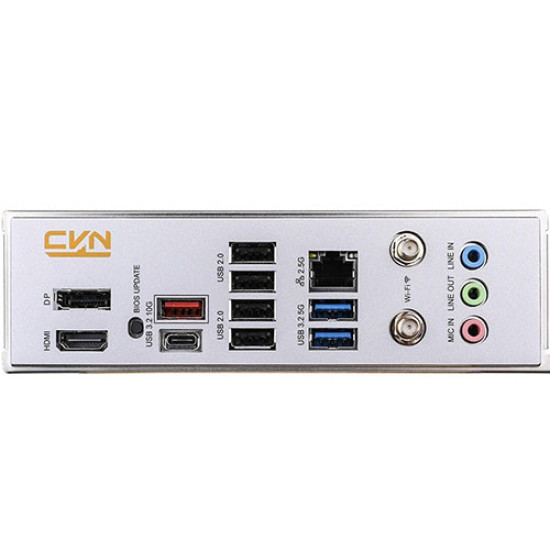

Rear I/O :

-4×USB 2.0 interfaces

-2×USB 3.2 Gen 1 5Gbps Type-A interfaces

-1×USB 3.2 Gen 2 10Gbps Type-C interface

-1×USB 3.2 Gen 2 10Gbps Type-A interface

-1×DP 1.2 interface, supporting up to 4K 60Hz resolution

-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution

-1×2.5G network interface

-2×Wi-Fi 6 antenna interfaces

-3×Audio interfaces (audio input/audio output/microphone)

-1×BIOS update button

On board :

-2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 5Gbps Type-A interfaces

-1×USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 5Gbps Type-C interface

-1×CPU fan pin

-3×System fan pins

-1×Water cooling pump pin

-3×5V 3-pin ARGB pins

-1×12V 4-pin RGB pin

-1×Front audio pin

-1×Front panel pin

-1×Speaker pin

-1×Serial port pin

-1×Clear CMOS jumper

-1×BIOS burner pin

-1×POST card pin

Expansion Slots

1×PCIe 5.0 x16 slot

1×PCIe 4.0 x1 slot

BIOS : 256M UEFI, supports multiple languages

Power Management : Support S3, S4, network S5 wake-up, support scheduled startup, call startup

Hardware Monitor

CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring

LAN : RTL8125BG 2.5Gbit network card, AX200 WiFi 6 wireless network card, Bluetooth 5.2

Audio : Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration : M-ATX 245mm x 245mm
