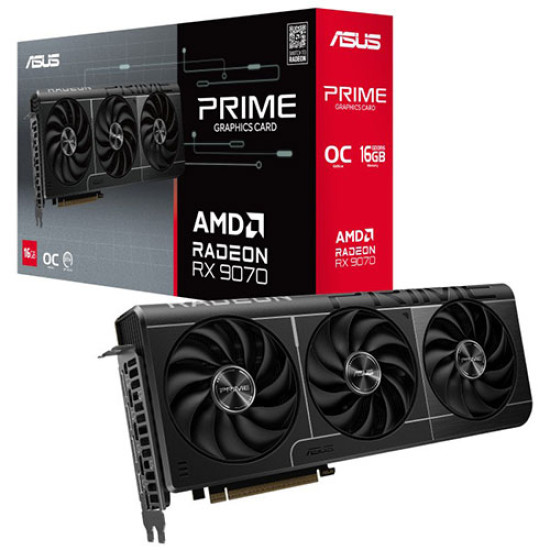

Asus Prime Radeon RX 9070 OC Edition 16GB GDDR6 (PRIME-RX9070-O16G)

Primed for Power

Experience Primal performance with the Prime Radeon™ RX 9070 graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.

2.5-slot Design

The Prime Radeon™ RX 9070 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

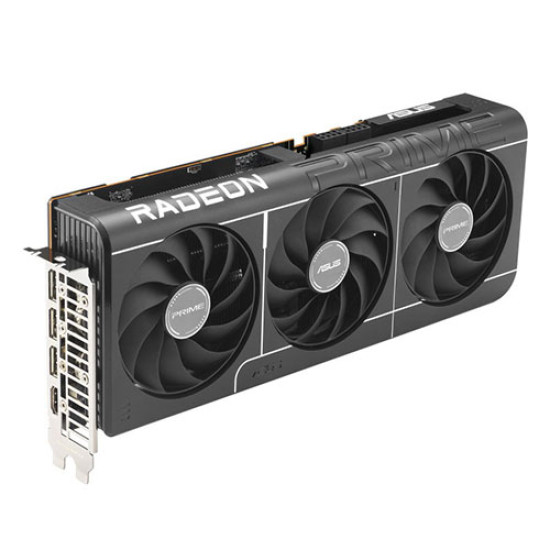

Axial-tech Upgrades

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

Dual BIOS

Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

Auto−Extreme Technology

An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

BEST PSU FOR RADEON™ RX 9000 SERIES

Use the wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.

Specification

Model : PRIME-RX9070-O16G

Graphic Engine : AMD Radeon™ RX 9070

Bus Standard : PCI Express 5.0

OpenGL : OpenGL®4.6

Video Memory : 16GB GDDR6

Engine Clock : OC mode(GPU Tweak III): up to 2610 MHz (Boost Clock)/up to 2140 MHz (Game Clock) : Default mode: up to 2590 MHz (Boost Clock)/up to 2120MHz (Game Clock)

Stream Processors : 3584

Memory Speed : 20 Gbps​

Memory Interface : 256-bit

Resolution : Digital Max Resolution 7680 x 4320

Interface

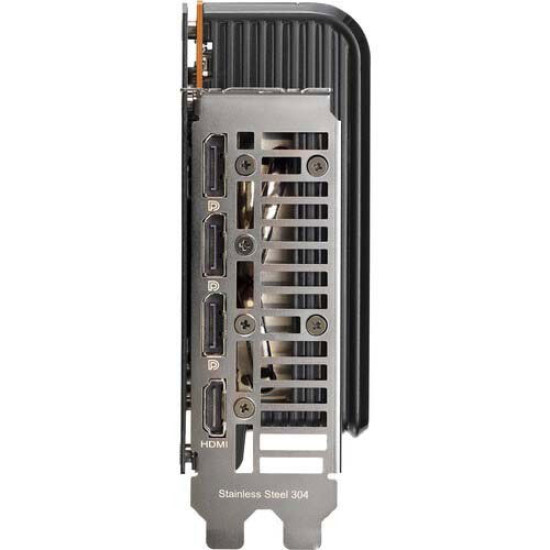

Yes x 1 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1a)

HDCP Support Yes (2.3)

Maximum Display Support : 4

NVlink/ Crossfire Support : No

Accessories

1 x Thank you card

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

312 x 130 x 50 mm

12.3 x 5.1 x 2.0 inch

Recommended PSU

650W

Power Connectors

2 x 8-pin

Slot

2.5 Slot

AURA SYNC

RGB
