Qnap TL-D800C 8-Bay USB 3.2 Gen2 Type-C High-Capacity JBOD Storage Enclosure

Qnap TL-D800C 8-Bay USB 3.2 Gen2 Type-C High-Capacity

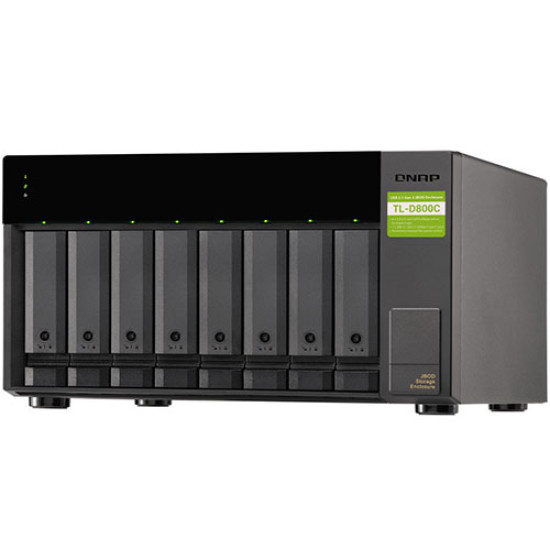

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

Flexible Storage Configuration And Management
The TL-D800C provides software-controlled configurations for greater management flexibility. Users can use the QTS / QuTS hero Storage & Snapshots Manager to configure the TL-D800C as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D800C, you can easily expand storage capacity.

JBOD Migration Speeds Up Remote File Transfers
Migrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-D800C supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-D800C to another place and connect it with the NAS to experience the device’s simple plug and play feature and fast data migration.

Technical Detail
Brand : Qnap
Modal : TL-D800C

Technical Spec
Drive Bay : 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility : 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
 Audio Alert On/Off Switch
Form Factor : Tower
Host Interface : 1 x USB 3.2 Gen 2 Type-C
LED Indicators : HDD 1-8, Status, Link, Fan error
 Buttons Power switch
Dimensions (HxWxD) : 188.2 × 329.3 × 281.4 mm
Weight (Net) : 6.18 kg
Weight (Gross) : 7.54 kg
Max. number of HDDs/SSDs supported : 8
Hard Drive Type : 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating Temperature : 0 - 40 °C (32°F - 104°F)
Storage Temperature : -20 - 70°C (-4°F - 158°F)
Relative Humidity : 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF)
Power Supply Unit : 250W PSU, 100 - 240V
Power Consumption: Operating Mode, Typical : 48.4 W
Tested with drives fully populated.
Fan Mode Switch (Auto, high, medium, low)
Fan : 2 x 120mm, 12VDC
System Warning : Buzzer
