Noctua NH-D9 DX-4677 4U Premium CPU Cooler for Intel Xeon LGA4677

Key Features

DX series for Intel Xeon

First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).

Customised for LGA4677

The Noctua DX-4677 line coolers are dedicated, customised solutions for Intel’s professional socket E1 (LGA4677-1) platforms, which makes them an ideal fit for quiet, high-performance servers and workstations utilising Xeon processors.

Enlarged contact surface

At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4677-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

SecuFirm2™ mounting system with standard Intel parts

Integrating standard Intel parts such as the anti-tilt mechanism, Torx® T30 PEEK nuts and the CPU-specific carrier frames (included with boxed retail CPUs and available separately for tray CPUs), the cooler’s mounting system is fully compliant with Intel’s installation guidelines and provides a familiar mounting procedure for experienced LGA4677 users. A Torx® T30 mounting tool is included.

Compatible with various Intel carrier frames

LGA4677 processors require plastic CPU carrier frames for installation, which are included with retail boxed CPUs and available separately via Intel sales partners for tray CPUs. The SecuFirm2™ mounting for LGA4677 is compatible with all types of carriers (E1A, E1B, E1C, E2A, E2B).

Compact 92mm size for best compatibility

Thanks to its compact footprint (95x95mm with center fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 DX-4677 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.

Airflow parallel to long axis of the socket

The NH-D9’s direction of airflow is parallel to the long axis of the LGA4677 socket, so it is ideal for systems where the exhaust fans of the chassis are in this direction. For systems that require the airflow to go perpendicular to the long axis of the socket, please choose the NH-U9 DX-4677 4U.

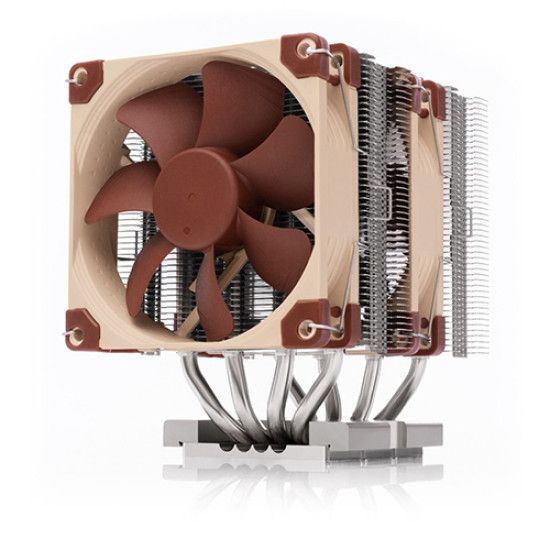

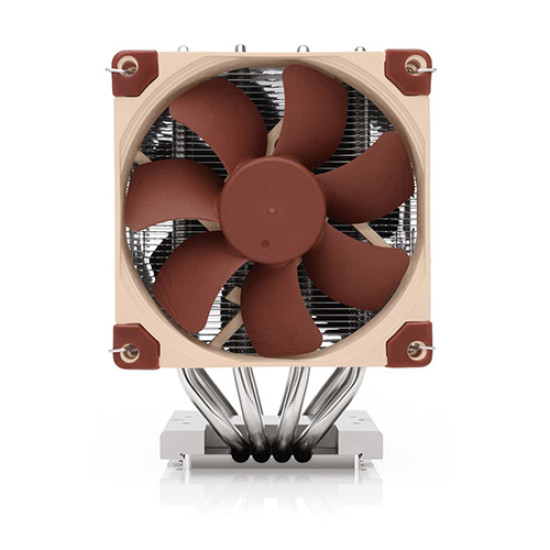

Dual NF-A9 HS-PWM fans

The NH-D9 DX-4677 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-4677.

PWM support and y-cable

The NF-A9 premium fans supplied with the NH-D9 DX-4677 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.

Pre-applied NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!

Specification

Cooler

Socket compatibility : Intel Xeon LGA4677

Height (without fan) : 134 mm

Width (without fan) : 95 mm

Depth (without fan) : 95 mm

Height (with fan) : 134 mm

Width (with fan) : 95 mm

Depth (with fan) : 120 mm

Material : Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR : 134

Max. TDP : see NSPR

Fan compatibility : 2x 92x92x25mm

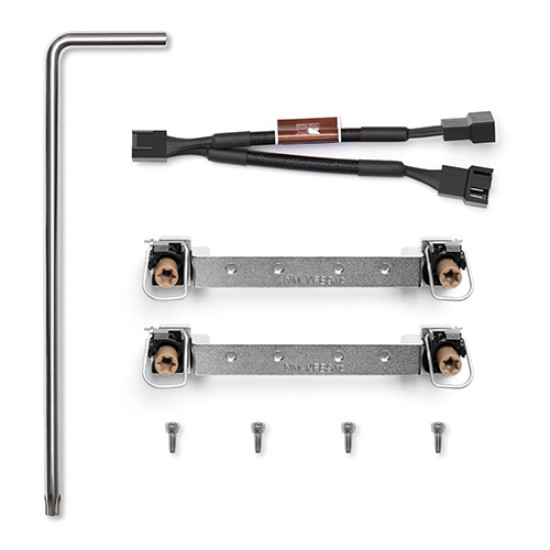

Scope of delivery

2x NF-A9 HS-PWM premium fan

NA-YC1 4-pin PWM y-cable

NT-H1 high-grade thermal compound (pre-applied)

SecuFirm2™ mounting kit for LGA4677

NM-SMT5 Torx® T30 mounting tool

FAN

Model : Noctua NF-A9 HS-PWM

Bearing : SSO2

Max. rotational speed (+/- 10%) : 2500 RPM

Min. rotational speed @ 20% PWM (+/-20%) : 400 RPM

Max. airflow : 96,3 m³/h

Max. acoustical noise : 30,6 dB(A)

Input power (max.) : 1,68 W

Voltage range : 12 V

MTTF > : 150.000 h
