Asus Expert Center PN64 Mini PC PN64-B-S7200MD (Intel Core i7-12700H Processor)

Architecture Design
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.

Superior Computing Performance
ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 model, PN64 offers a 28% boost on overall system performance, making it perfect for multitasking

Faster and better DDR5 RAM
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN64 provides excellent performance for daily computing tasks.

Ultrafast PCIe® 4.0 SSD
ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that’s twice the data transfer speeds of PCIe 3.0.

Superfast 2.5 Gbps Ethernet
ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

Configurable Port
ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.

Technical Detail
Brand : Asus
Modal : PN64-B-S7200MD

Technical Spec
CPU
Intel® Core™ i7-12700H Processor, 35W TDP

Chipset
Integrated

Integrated
Intel® Iris® Xe Graphics

Memory
2 x DDR5 SO-DIMM, \
Max. 16GB x 2

Storage
1 x M.2 2280 PCIe Gen4x4 slot,
1 x SATA 6Gb/s connector for 2.5" HDD

Wireless Data Network
Intel® Wi-Fi 6E (Gig+), Bluetooth® 5, 2x2

LAN
10/100/1000/2500 Mbps,
2.5G Intel® LAN

Audio
Realtek® ALC3251 HD Audio CODEC

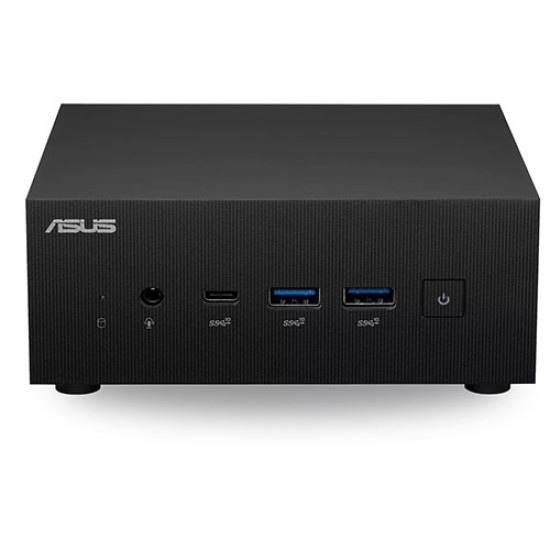

Front(Side) I/O Ports
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x Audio Jack

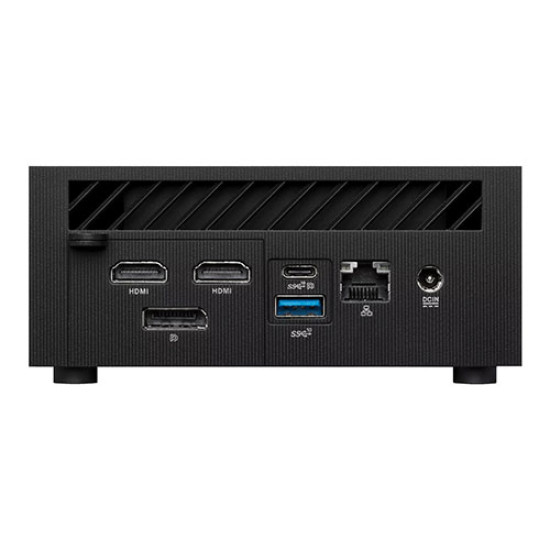

Back I/O Ports
1 x USB 3.2 Gen2 Type-C (w/ DP output, PD input)
1 x USB 3.2 Gen2 Type-A
2 x HDMI
1 x Configurable Port
1 x 2.5G RJ45 LAN
1 x Padlock ring
1 x DC-in

Configurable Port Options
1 x HDMI
1 x DisplayPort1.4
1 x COM
1 x VGA
1 x 2.5G LAN

Speaker
No

Dimensions (W x D x H)
120 x 130 x 58 mm
120 x 130 x 58 mm

Weight
1.0KG

Color
ECO Black

Accessories
AC Adapter
Driver DVD (non OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)
