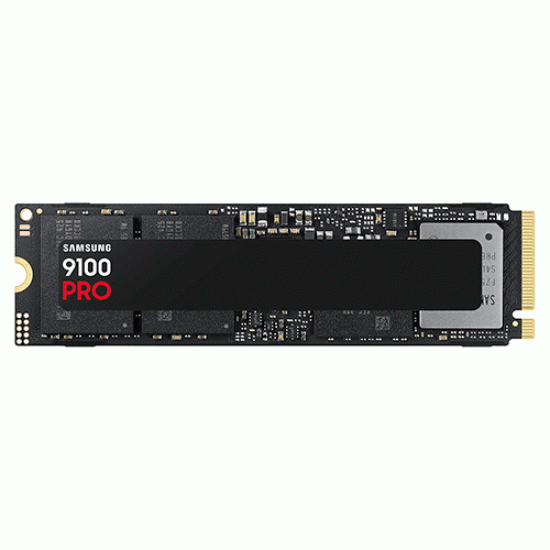

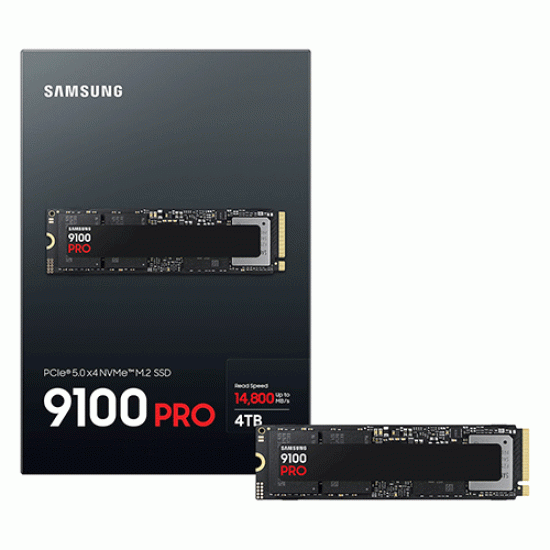

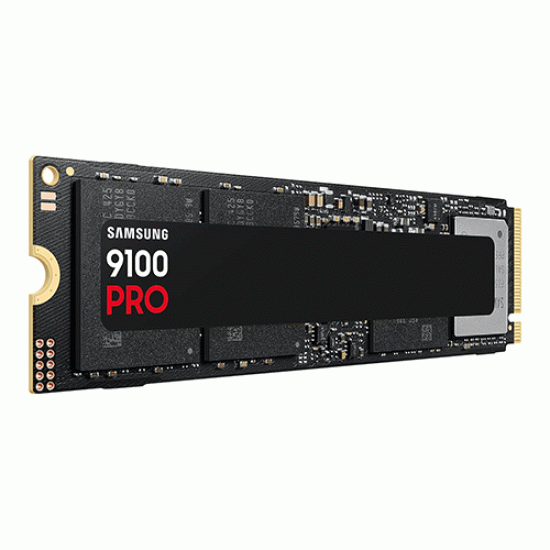

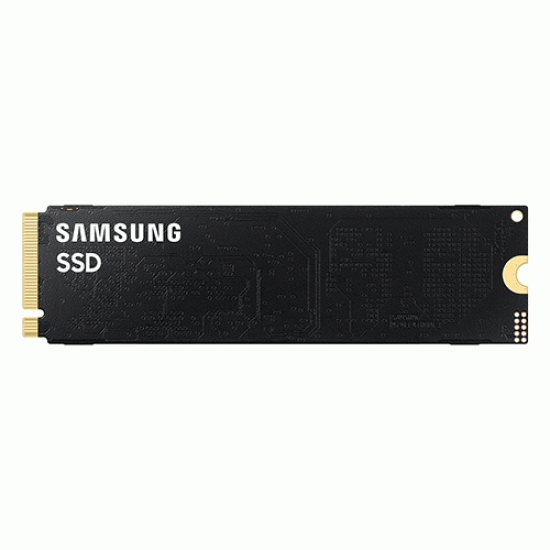

Samsung 9100 PRO 4TB PCIe Gen 5.0 NVMe M.2 SSD (MZ-VAP4T0BW)

9100 PRO PCIe 5.0 NVMe M.2 SSD

Breakthrough PCIe 5.0 performance resulting in sequential Read speed up to 14800 MB/s

Optimized for AI workloads, defy limits in work and play with an on board AI PC and AI content generation, fuelled by 9100 PRO with exhilirating random read/write speeds

Breeze through video editing, 3D art & long streaming session with latest PCIe5.0 interfaces

PCIe® 5.0 Performance

Max 14,800/13,400 MB/s sequential speeds, two times faster than 990 PRO.

Expanded Experience

Supermassive capacity with exceptional compatibility.

Innovative Power & Thermal Control

Up to 49% enhanced power efficiency with advanced thermal control.

Every task, powerfully parallel

Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Exceptional everywhere

Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency

Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life

For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Specifications :

Application : Client PCs, Game Consoles

Interface : PCIe® 5.0 x4, NVMe™ 2.0

Dimension (WxHxD) : Max 8.01 cm x Max 2.21 cm x Max 0.23 cm

Product Weight : Max 9.0g Weight

Performance : Up to 14,800 MB/s * Performance may vary based on system hardware

Sequential Write : Up to 13,400 MB/s * Performance may vary based on system hardware

General Feature :

Application : Client PCs, Game Consoles

Form Factor : M.2 (2280)

Dimension (WxHxD) : Max 8.01 cm x Max 2.21 cm x Max 0.23 cm

Storage Memory : Samsung V-NAND TLC

Cache Memory : Samsung 4GB Low Power DDR4X SDRAM

Capacity : 4,000GB

Interface : PCIe® 5.0 x4, NVMe™ 2.0

Product Weight : Max 9.0g Weight

Controller : Samsung in-house Controller

Special Feature :

TRIM Support : Supported

GC (Garbage Collection) : Auto Garbage Collection Algorithm

WWN Support : Not supported

S.M.A.R.T Support : Supported

Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

Device Sleep Mode Support : Yes

Performance :

Sequential Read :

Up to 14,800 MB/s * Performance may vary based on system hardware & configuration

Random Read :

Up to 2,200,000 IOPS * Performance may vary based on system hardware & configuration

Sequential Write :

Up to 13,400 MB/s * Performance may vary based on system hardware & configuration

Random Write :

Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration

Environment :

Average Power Consumption (system level) :

Average: Read 9.0 W / Write 8.2 W* Actual power consumption may vary depending on system hardware & configuration

Power Consumption (Device Sleep) :

Typical 5.7 mW * Actual power consumption may vary depending on system hardware & configuration

Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)

Shock : 1,500 G & 0.5 ms (Half sine)

Power consumption (Idle) :

Typical 6.5 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage : 3.3 V ± 5 % Allowable voltage

Operating Temperature : 0 - 70 ℃ Operating Temperature
