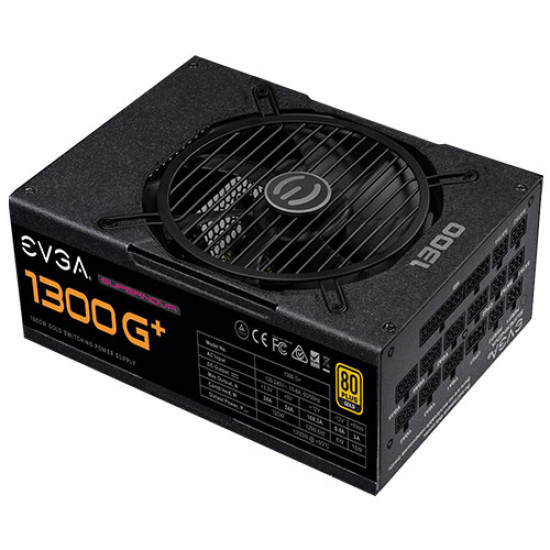

EVGA 1300 Watt 80 Plus GOLD Fully Modular SMPS (220-GP-1300-X1)

Features

Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

Fully Modular to reduce clutter and improve airflow

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

100% Japanese Capacitors ensure long-term reliability

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

DC-DC Converter improves 3.3V/5V stability

135mm Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan

Specifications

Cable Length

ATX Cable : 1x 600mm

EPS Cable : 2x 750mm

PCIe Cable : 4x 750mm, 2x 750mm, 900mm

SATA Cable : 4x 550mm, 650mm, 750mm

Four-Pin Peripheral Cable

2x 550mm, 650mm, 750mm

Floppy Adapter : 1x 100mm

AC Power : 1x 1800mm

Modular Cable Type : Full

Molex to FDD : 1x

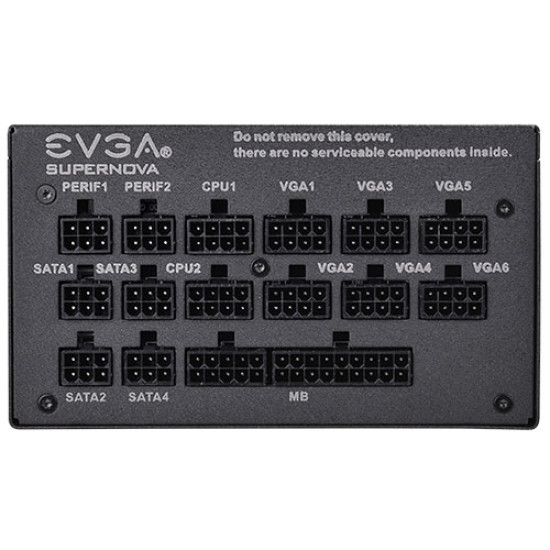

Connector Quantity

24 Pin ATX : 1x

EPS (CPU) : 2x 8pin (4+4)

PCIe : 8x 8pin (6+2)

SATA : 12x

Four-Pin Peripheral : 6x

Floppy : 1x

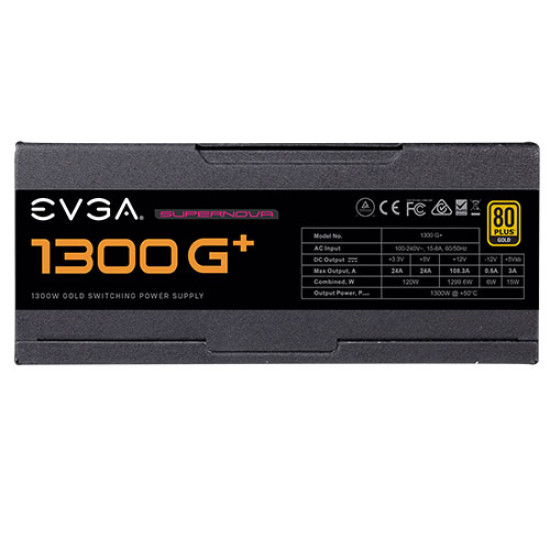

Power Specs

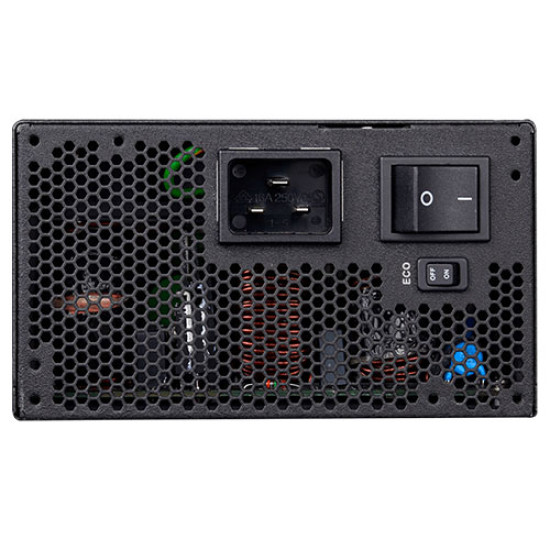

AC Input : 100-240V~, 15-8A, 60/50 Hz

Rail : +3.3V +5V +12V +5Vsb -12V

Max Output : 24A 24A 108.3A 3.0A 0.5A

120W 1299.6W 15W 6W

Total 1300W

Additional Details

Operating Temperature : 0° to 50° C

Japanese Capacitors : 100%

ECO Mode : Yes

MTBF : 100,000 Hours

Net Weight : 8.20 lbs

Size : 86mm (H) x 150mm (W) x 200mm (L)

Approvals

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS

Compliance with ErP Lot 3 2014 Requirement

Fan Size / Bearing 135mm Fluid Dynamic Bearing
