EVGA 1000 Watt 80 Plus GOLD Semi-Modular SMPS (210-GQ-1000-V1)

Features

80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

NVIDIA SLI & AMD Crossfire Ready

5 Year Warranty and unparalleled EVGA Customer Support

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

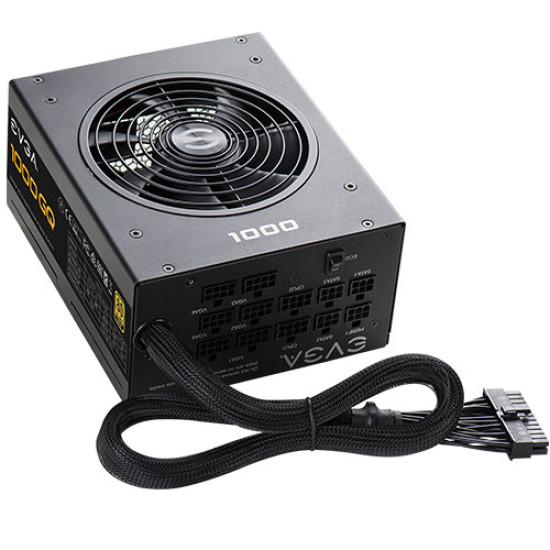

Modular Design to reduce clutter and improve airflow

100% Japanese Capacitors ensure long-term reliability

Active Clamp +DC to DC design for efficient operation

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

Whisper Silent with 135mm Fluid Dynamic Bearing Fan

Active Power Factor Correction

Specifications

Cable Length

ATX Cable : 1x 600mm

EPS Cable : 2x 650mm

PCIe Cable : 4x 650mm, 750mm, 2x 650mm

SATA Cable : 3x 550mm, 650mm, 750mm, 850mm

Four-Pin Peripheral Cable

1x 550mm, 650mm, 750mm

Floppy Adapter : 1x 100mm (m)

AC Power : 1x 1530mm

Modular Cable Type : Semi-Modular

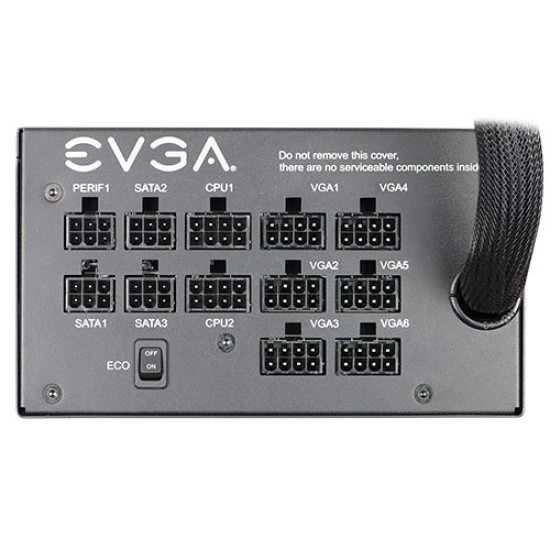

Connector Quantity

24 Pin ATX : 1x

EPS (CPU) : 2x 8pin (4+4)

PCIe : 10x 8pin (6+2)

SATA : 12x

Four-Pin Periphera : 3x

Floppy : 2x

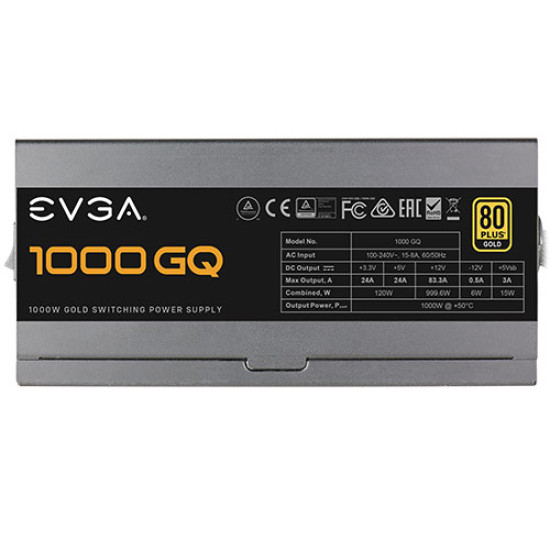

Power Specs

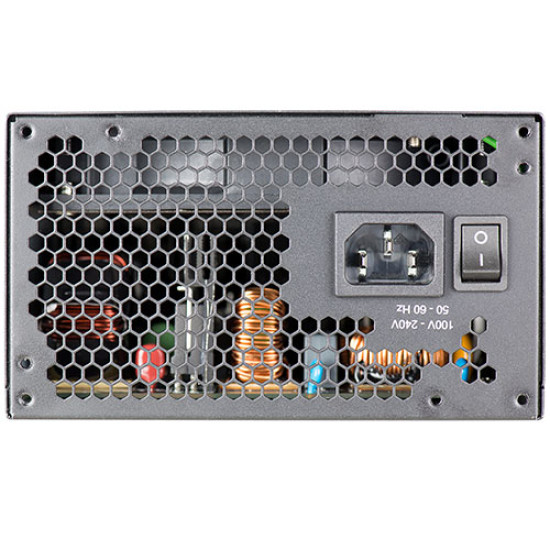

AC Input : 100 - 240 VAC, 16A, 50 - 60 Hz

Rail : +3.3V +5V +12V +5Vsb -12V

Max Output : 24A 24A 83.3A 3A 0.5A

83.3A

120W 999.6W 15W 6W

Total 1000W @ +50C

Additional Details

Operating Temperature : 0° to 50° C

Japanese Capacitors : 100%

ECO Mode : Yes

MTBF : 100,000 Hours

Net Weight : 7.00 lbs

Size : 85mm (H) x 150mm (W) x 180mm (L)

Approvals

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS

Compliance with ErP Lot 6 2013 Requirement

Fan Size / Bearing 135mm Fluid Dynamic Bearing
