NZXT H5 Flow Compact Mid Tower ATX Cabinet Black (CC-H52FB-01)

H5 Flow

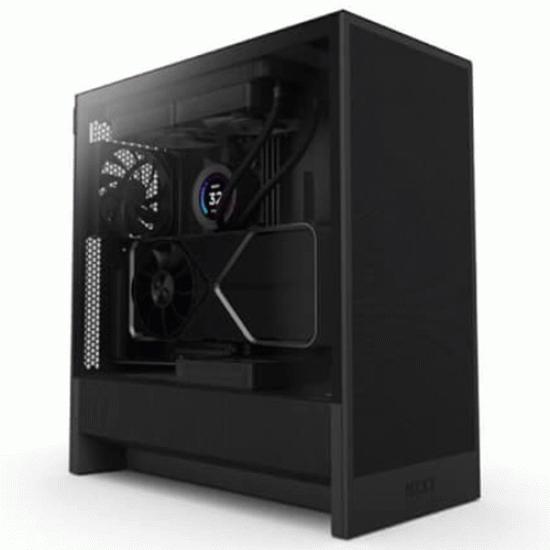

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

More Air to the GPU

Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

Fits Large Radiators

Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

Optimized for Airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

Pre-Installed Fans*

Equipped with two 120mm Quiet Airflow fans (CV)—one in front, one in rear—for out-of-the-box cooling. *Case Version (3-pin DC)

Easy Cable Management

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

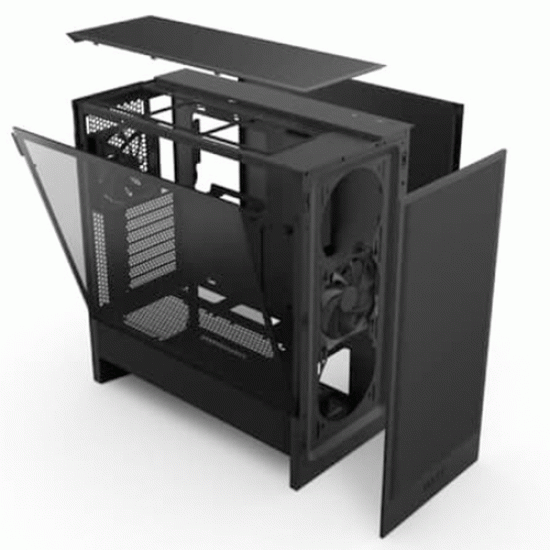

Tool-less Access

Easily open up the front, side, and top panels without any tools.

Strong and Sleek

Crafted from thick steel and tempered glass for long-lasting quality.

Features

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).

Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.

Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.

Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Specification

Model Name : CC-H52FB-01

Key Specs

Motherboard Support : E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

Enclosure Type : Mid-Tower

Case Material : SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

Height (with feet) : 465 mm / 18.31 in

Width : 225 mm / 8.86 in

Depth : 430 mm / 16.93 in

Weight : 7.28 kg / 16.04 lb

Compatibility & Clearance

CPU Cooler Height : Up to 170 mm

GPU Length : Up to 410 mm

PSU Length : Up to 200 mm

Cable Management : Up to 28.7 mm

Top Radiator : Up to 240 mm (280 mm with low-profile memory)

Top Mounted : 140mm / 280mm Radiator & Fan Combined Thickness Up to 55 mm

Front Ports

USB 3.2 Type-A : 1

USB 3.2 Type-C : 1

Headset Audio Jack : 1

Expansion Slots

Standard : 7

Vertical : 0

Drive Bays

2.5" : 2

3.5" : 1

Fan Support

Front : 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)

Top : 2 x 120 mm / 2 x 140 mm

Bottom : 2 x 120 mm

Rear : 1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

Front : Up to 360 mm

Up to 360 mm : Up to 240 mm (280mm with low-profile memory only)

Fan Specs

Model : F120Q (Case Version)

Speed : 1,350 ± 150 RPM

Airflow : 60.2 CFM

Static : 1.05 mm-H₂O

Noise : 24.1 dBA

Fan Connector : 3-pin
