Gamdias AURA GP750 750W Efficient Power Supply

Key Features

• 750W Power Supply
• 120mm Hydraulic Bearing Fan
• 1x 24-pin Main Connecter
• Compatible with ATX12V v2.4

750W EFFICIENT POWER SUPPLY

The AURA GP750 is a non-modular power supply unit featuring high efficiency and a 120mm hydraulic bearing smart fan with automatic temperature control to achieve extremely stable performance.

HIGH EFFICIENCY

The AURA GP750 delivers watts at approximate 80% efficiency to reduce power waste and heat.

SMART VENTILATION

The power supply unit supports automatic fan speed optimization which adjusts the 120mm hydraulic bearing fan speed according to load.

HEAVY-DUTY PROTECTION

The power supply unit ensures stable output voltage and provides multiple protections against short circuits, overload, overheating, low voltage, etc.

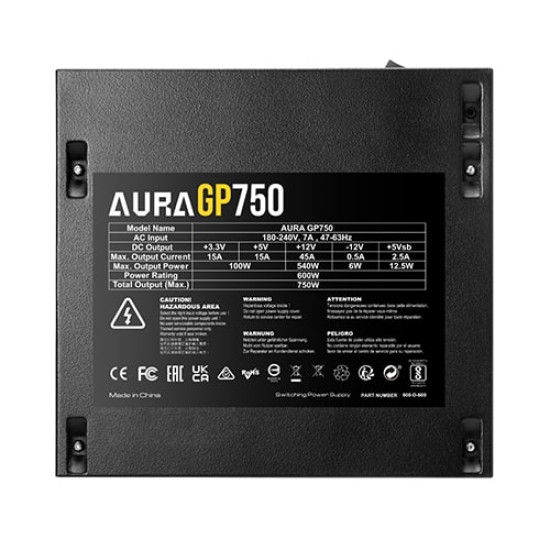

Specification

Model : AURA GP750

Type : ATX12V v2.4

Efficiency : Close to 80 PLUS White efficiency

Dimensions (LxWxH) : 140 x 150 x 86 mm

AC Input : 180-240V / 7A / 47-63Hz

DC Output : +3.3V / +5V / +12V / -12V / +5Vsb

Max. Output Current : 15A / 15A / 45A / 0.5A / 2.5A

Max. Output Power : 100W / 540W / 6W / 12.5W

Power Rating : 600W

Total Output (Max.) : 750W

Protection : OVP / UVP / OPP / OCP / SCP

Main Power : 1 (24 Pin)

CPU : 2 (4+4 Pin)

PCI-E : 2 (6+2 Pin)

SATA : 4 (4 Pin)

Molex : 2 (4 Pin)

Modular : Non Modular

Flat Cable : Yes

Cooling System : 120mm hydraulic bearing fan
