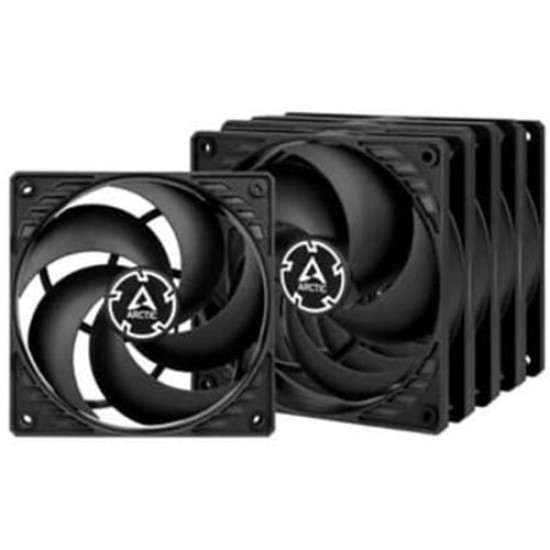

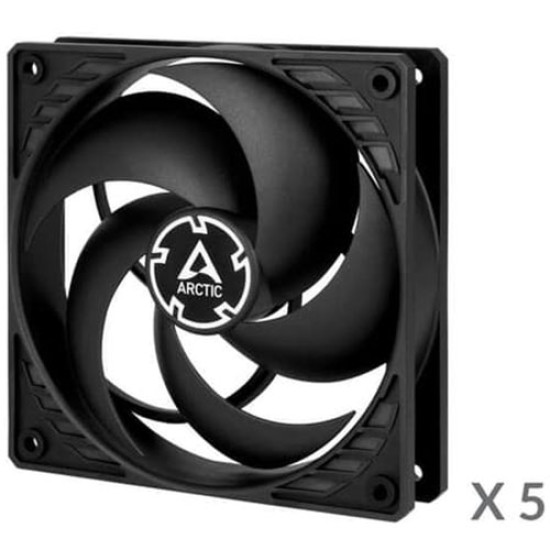

Arctic P12 PWM PST 120 mm PWM Fan 5 Pack Black (ACFAN00137A)

Optimised for Static Pressure

During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

0 dB Mode — Zero rpm

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

Strong Cooling Performance

Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB(A), the new P-fans left many competitors behind.

More Efficient Technology

The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

200 to 1800 rpm Regulated via PWM PST

Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

Push warm air out of the case

Pull cool air into your case

Specification

Fan Speed : 200—1800 rpm PWM Controlled (0 rpm below 5 % PWM)

Airflow : 56.30 cfm | 95.70 m³/h

Static Pressure : 2.20 mmH2O

Noise Level : 0.3 Sone

Operating Ambient Temperature : 0—40 °C

Fan

Fan Frame : Standard

Control Type : PWM PST

Connector : 4-Pin Connector + 4-Pin Socket

Fan Bearing : Fluid Dynamic Bearing

Electric Characteristic

Typical Voltage : 12 V DC

Starting Voltage : 3.9 V

Current | Voltage : 0.1 A | 12 V DC

Cable Length : 400 mm

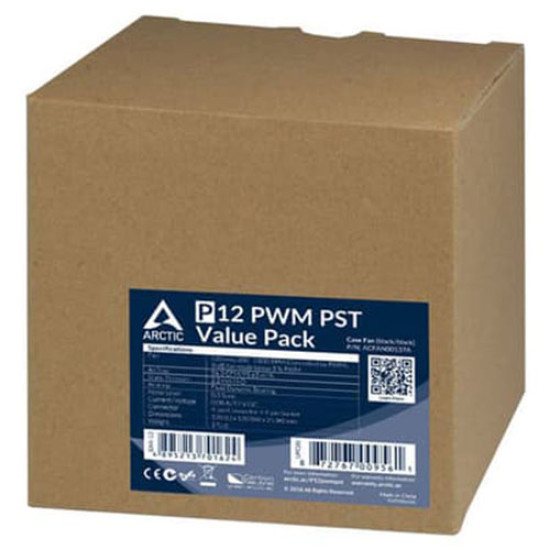

Packaging

Width : 130 mm

Height : 127 mm

Length : 123 mm

Weight : 0.8 kg

Size & Weight

Length : 120 mm

Width : 120 mm

Height : 25 mm

Weight : 145 g
