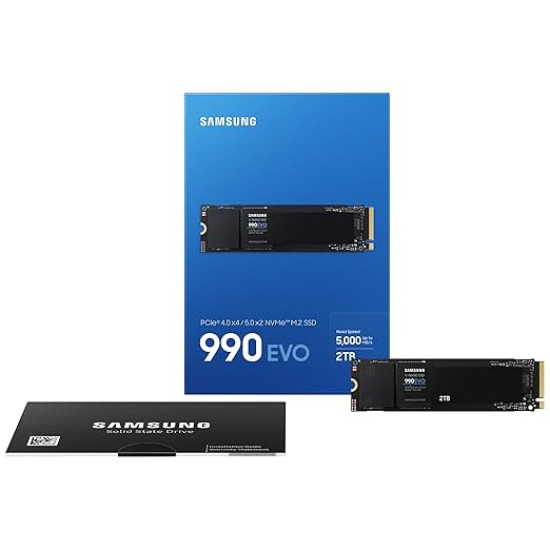

Samsung 990 EVO NVMe 2TB Internal SSD (MZ-V9E2T0B)

Give every task a boost

Read/Write Speeds up to 5,000/4,200 MB/s

Load games and save files in a flash. Bring power to your productivity with read and write speeds of up to 5,000/4,200 MB/s.¹ The 990 EVO provides continuous speed to keep you going.

Keep your cool

Smart Thermal Control

Now you can ramp things up without overheating the system. Samsung’s fine-tuned controller and heat spreading label deliver effective thermal control to avoid sudden performance drops mid-project. It cools things down even when things are running high, so your hard earned checkpoints are saved.

Latest PCIe technology

PCIe 4.0 and Gen 5.0

Optimized to support the latest technology for SSDs—990 EVO is compatible with PCIe 4.0 x4 and PCIe 5.0 x2. This means you get more bandwidth and higher data processing and performance.

Always Up-to-Date via Magician Software

It’s not hocus-pocus. Your 990 EVO SSD performs like new with the always up-to-date Magician Software. Stay up to speed with the latest firmware updates, extra encryption and continual monitoring of your drive health–it works like a charm.

General Feature

Interface

PCIe® 4.0 x4 / 5.0 x2, NVMe2.0

Form Factor

M.2 (2280)

Performance

Seq. Read/Write (MB/s)

Up to 5,000/4,200 performance may vary based on system hardware & configuration

Ran. Read/Write (IOPS ,QD1)

Up to 20K/90K performance may vary based on system hardware & configuration

Ran. Read/Write (IOPS ,QD32)

Up to 700K/800K performance may vary based on system hardware & configuration

Power

Active (Read/Write)

5.5W / 4.7W

Device Sleep (L1.2)

Typical 60mW / Typical 5mW

Data Encryption

Class 0 (AES 256) , TCG/Opal v2.0, MS eDrive (IEEE1667)

Total Bytes Written (TBW)

1200

Storage

Capacity

2TB

Hardware

NAND

Samsung V-NAND TLC

Controller

In-House Controller

Cache Memory

HMB (Host Memory Buffer)

Warranty

Product

Five (5) Year Limited Warranty
