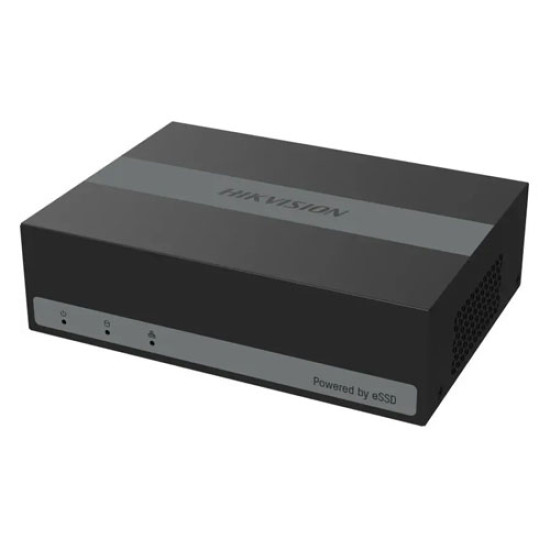

Hikvision 8-ch 1080p Lite 1U H.265 eSSD DVR (DS-E08HGHI-B)

8-ch 1080p Lite 1U H.265 eSSD DVR
Powered by eSSD technology
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Scene-adaptive bitrate control video compression
Up to 1080p Lite@15 fps encoding capability
Low power consumption
Audio via coaxial cable

Technical Detail
Brand : Hikvision
Model : DS-E08HGHI-B

Technical Spec
Motion Detection 2.0 :
Human/Vehicle Analysis :
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Recording :
Video Compression : H.265 Pro/H.265
Encoding Resolution : 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame Rate :
Main stream :
1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
Sub-stream: CIF/QVGA@15 fps
Video Bitrate :
According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps

Video And Audio
IP Video Input : 2-ch Up to 5 MP resolution
                 Support H.265+/H.265 IP cameras
Analog Video Input : 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
AHD Input  : 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input :  Support
HDMI Output :
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode : HDMI/VGA simultaneous output
Audio Input : 8-ch via coaxial cable
Audio Output : 1-ch via HDMI
Synchronous Playback : 8-ch

Network :
Total Bandwidth : 72 Mbps
Remote Connection : 32
Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface :
Capacity : Built-in 512 GB eSSD (480 GB available)
Alarm In/Out : N/A
USB Interface : Real panel: 2 × USB 2.0

General :
Power Supply : 12 VDC, 1 A
Consumption  : ≤ 6.2 W (with eSSD)
Working Temperature : -10 °C to +55 °C (+14 °F to 113 °F)
Working Humidity : 10% to 90%
Dimension (W × D × H) : 151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)
Weight : ≤ 0.5 kg (with eSSD, 1.1 lb.)
