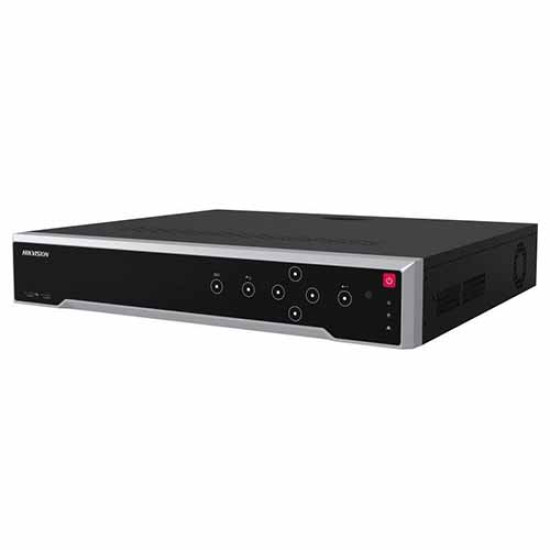

Hikvision 64-ch 1.5U 8K NVR (DS-7764NI-M4)

Key Features

64-ch 1.5U 8K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 64-ch IP camera inputs
• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI and 1 VGA interfaces, 8K or dual 4K video outputs
• Up to 8-ch IP speakers can be connected

Specification

Video and Audio

IP Video Input : 64-ch, Up to 32 MP resolution

Incoming Bandwidth : 400 Mbps

Outgoing Bandwidth : 400 Mbps

HDMI 1 Output : 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output : 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output : 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode : HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output

CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output : 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format : H.265+/H.265/H.264+/H.264

Recording Resolution : 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback : 16-ch

Decoding Capability : 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)

Dual-Stream Recording : Support

Stream Type : Video, Video & Audio

Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Remote Connection : 128

Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Network Interface : 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Camera Access Protocol : ONVIF(Version 2.5), RTSP

RAID

RAID Type : N/A

Auxiliary Interface

eSATA : 1 eSATA interface

SATA : 4 SATA interfaces

Capacity : Up to 16 TB capacity for each disk

Serial Interface : 2 RS-485 (half-duplex), 1 RS-232

Alarm In/Out : 16/9

USB Interface : Front panel : 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12V : Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

DC 12V : 12 VDC, 1 A power output

General

Power Supply : 100 to 240 VAC, 50 to 60 Hz

Consumption : ≤ 15 W (without HDD)

Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity : 10% to 90%

Chassis : 19-inch rack-mounted 1.5U chassis

Dimension (W × D × H) : 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
