Thermaltake TH360 V2 Ultra EX ARGB Sync All-In-One Liquid Cooler Snow Edition (CL-W426-PL12SW-A)

Key Features

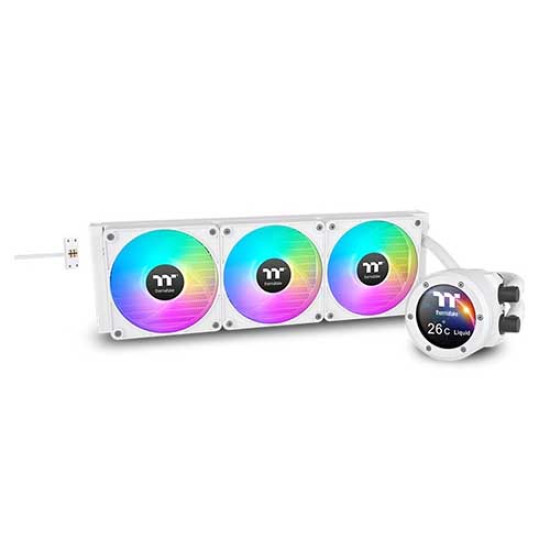

TH360 V2 Ultra EX ARGB Sync All-In-One Liquid Cooler - Snow Edition

The TH360 V2 Ultra EX ARGB Sync Snow is equipped with three CT120 EX ARGB Sync White Fans, providing an enhanced PC building experience with the new MagForce 2.0, enabling quicker fan assembly and a more stable connection. This AIO also features a full modular design, allowing the fans to be used on the AIO by connecting with one single cable or as individual fans that power up with three different cables provided. Additionally, the TH360 V2 Ultra EX ARGB Sync Snow has an industrial cap design with a 480 x 480 resolution LCD Display and is suitable for medium to large chassis that accommodate 360mm AIOs, offering both Ultra aesthetics and MagForce 2.0 functionality.

Full Modular Design

The CT EX ARGB Fans come with the new MagForce 2.0 which allows you to easily connect AIO fans with only one cable. Alternatively, you may also use them as individual fans with the three different cables in the package.

Steady Connection with MagForce 2.0

Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Say Goodbye to Excessive Cables

Connect your fans with CT EX’s MagForce 2.0 Quick Connect Design and be free from messy cables!

Sync with CT120 EX ARGB Sync Fans

Utilizing the CT120 EX ARGB Sync White Fans on this model, not only you can match up some of our chassis’ pre-installed fans, but you can unify your fans with your build! The CT120 EX ARGB Sync White provides an 68 CFM of air flow with 2.95 mm-H2O static pressure while maintaining 28.5 dB-A noise levels.

Enhanced Cooling Surface With A Compact Design

The TH V2 Ultra EX ARGB Sync Snow Series has a 27m

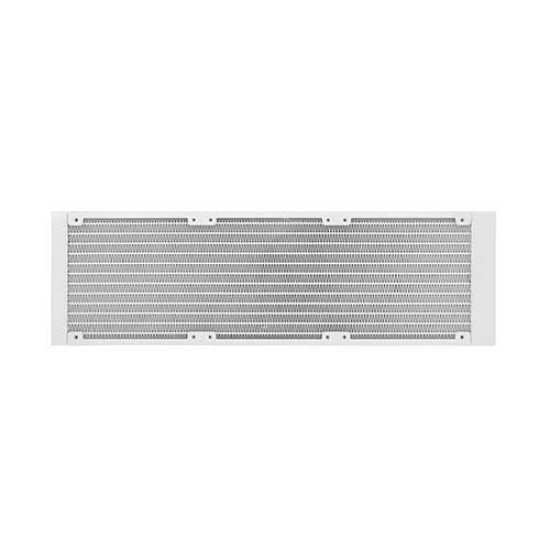

Enhanced Cooling Surface With A Compact Design

The TH V2 Ultra EX ARGB Sync Snow Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

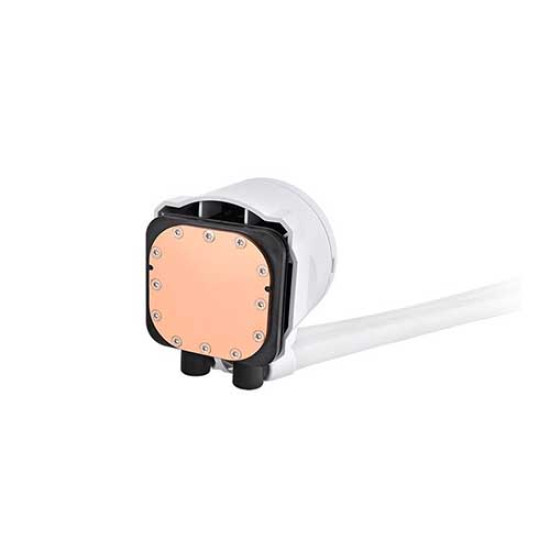

Keep it COLD with Copper

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

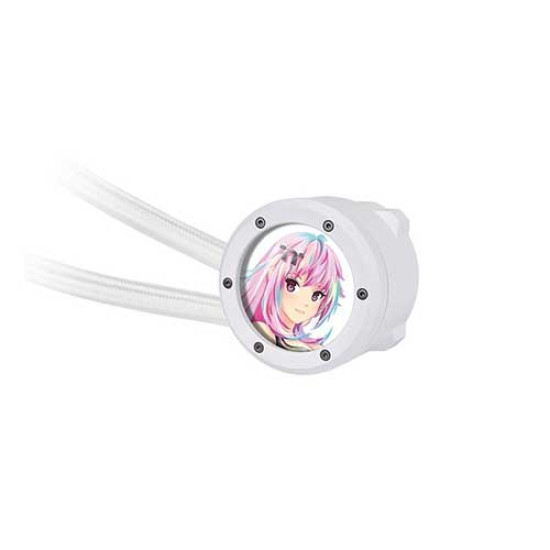

Personalize Your LCD Display

The TH V2 Ultra EX ARGB Sync Series features an industrial-inspired design to freshen up its 2.1” LCD Display.  The highly customizable LCD Display has a 480*480 high resolution, allowing you to showcase 16.8M color videos or photos effortlessly, enhancing the visual aesthetics of your build.

Fully Customizable with TT RGB Plus 2.0

Monitor frequency and real-time temperature directly from the 2.1” LCD display, or customize start-up and standby screens by uploading images or GIFs to add extra flair with the TT RGB Plus 2.0 software.

TT RGB PLUS Ecosystem

Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.

TT RGB PLUS Software

The new version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.

TT PlayLink Mobile App

TT PlayLink is a new mobile application that simplifies the customization of PC LCD screens, enabling quick visual uploads and live streaming from a smartphone.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Specification

P/N : CL-W426-PL12SW-A

WATER BLOCK : Material : Copper

PUMP

Motor Speed : PWM 1500~3300 RPM

Rated Voltage : 12V

Rated Current : 0.43A

Power Input : 5.16W

CPU Display

Rated Voltage : 5V

Power Input : 1.15W

Display Type : 2.1”TFT-LCD

Display Resolution : 480x480 (RGB) px

Display Support

Interface : Micro USB to USB (9PIN)

System Compatibility : Windows 10 / 11

Fan

Dimension : 120 x 120 x 25 mm

Speed : PWM 500~2000 R.P.M

Rated Voltage : 12V/5V

Rated Current :0.19A & 0.32A (one fan)

Power Input : 2.28W & 1.6W (one fan)

Air Flow. : 68 CFM (one fan)

Static Pressure. : 2.95 mm-H2O (one fan)

Noise Level. : 28.5 dB-A

Tube

Length : 460mm

Material : Rubber

Radiator

Dimension : 396 x 120 x 27 mm

Material : Aluminum

COMPATIBILITY

Intel: LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150

AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
