Prolab Design AI360 LCD 360mm AIO Liquid Cooler

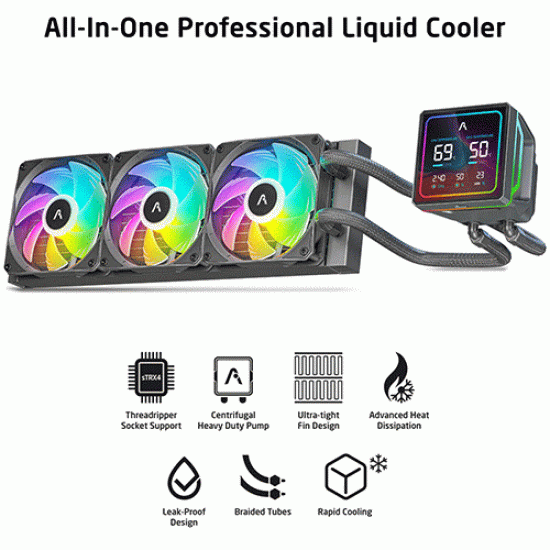

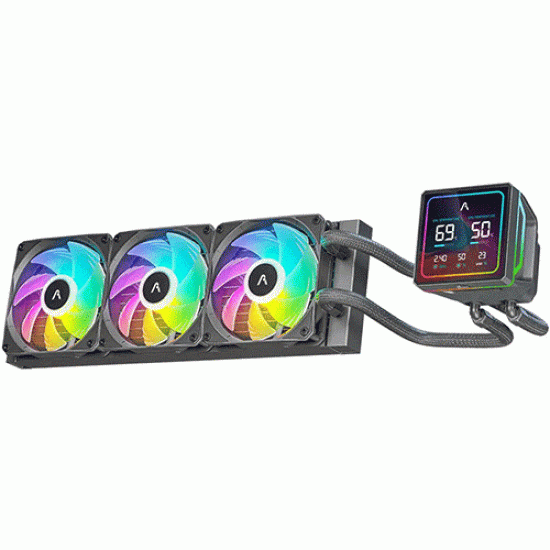

AI360 LCD AIO Liquid Cooler

The AI360 LCD is a 360mm AIO Liquid cooler designed for high-performance Workstations and PCs. The cooler features an Ultra-tight radiator design, a bigger 3348 Sq-mm cold plate, and kink-free braided tubes.The cooling Fans are also one of a kind, with seamless interconnection for wire-free daisy chain, up to 2500 RPM of revolution speed, 4.5 mmAq of static pressure, and 73.5 CFM of airflow.The cooler is compatible with all the latest AM5 and LGA1851 CPUs, as well as the AMD HEDT Threadripper CPUs, making this the only cooler in the price segment to feature Threadripper support out of the box.The pump is an efficient 2700 RPM unit, at par with the flagship cooler pumps in the market, while the radiator has the highest FPI (~30) due to the high fin-density design

Tasteful ARGB with 4″ HD Display for Endless Customization

High-performance ARGB Fans, subtle ARGB on the CPU block, and a 4″ detachable HD display make this cooler perfect for a workstation or a consumer build.

Flagship performance, with all the bells and whistles

With compatibility for the latest High TDP CPUs, Ultra-tight radiator fin density, leak-proof design, and rapid, efficient cooling, the AI360 LC checks all the boxes for a flagship cooler.

Heat-ressistant, kink free tubing

The braided high-quality PTFE tubing ensures great performance and longevity during prolonged, intense workloads

More FPI compared to any other cooler in the market!

White conventional radiators have ‘V’ shaped fins, which make the radiator FPI top out ~25, while the radiator of AI360 LC has a whopping 30 FPI for superior cooling

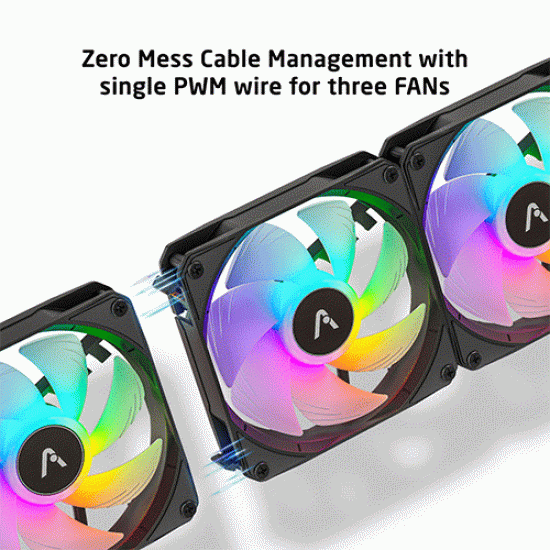

Interconnecting Wire-Free Daisy Chain FANs

The Radiator FANs feature an interlocking mechanism, making them controllable through a single PWM & ARGB connection while reducing cable clutter.

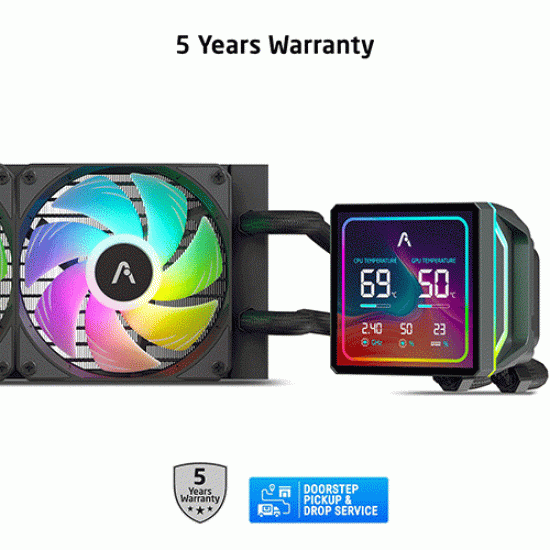

The 4″ 720p Detachable IPS-LCD Display

The 4″ Detachable 720p IPS Display with magnetic back can be attached to any metal surface, or the top of the pump head, the single Type C Connection makes it easy to connect the internal motherboard header or any external USB port.

Class-leading Radiator FANs

With up to 2500 RPM speed, 73.5 CFM Airflow, and 4.5 mm-Aq Static Pressure, the AI360 LC features one of the best radiator FANs for high-TDP use cases.

Specifications

Intel Socket Support : LGA1851/LGA1700/LGA1200/LGA115X/LGA1366

AMD Socket Support : AM5/AM4/AM3+/AM3/AM2+/AM2/AM1/FM2+/FM2/FM1

Threadripper Socket Support : TR4/SP3/sTRX4/sWRX8

PUMP Speed (RPM) : up to 2700 RPM

Pump Noice (dB) : 23 Max.

Pump Connector : 3-Pin PWM

FAN Speed (RPM) : 500-2500

FAN Airflow (CFM) : 73.5

FAN Static Pressure (mm-Aq) : 4.5

FAN Noise (dB) : 33.5

FAN Connector : 4-Pin PWM, 3-Pin ARGB

Tube Length (mm) : 395 mm ±5 mm

Pump Embedded VRM FAN : 500-2100 RPM, 50 CFM, 1.2 mm-Aq

Radiator Dimensions (LxWxH) : 396 x 120 x 27 mm

Radiator Matrerial : Aluminium Alloy

Net Weight / Gross Weight : 1.6/2.2 Kg
