Thermaltake The Tower 600 Bubble Pink Mid Tower Chassis (CA-1Z1-00MAWN-00)

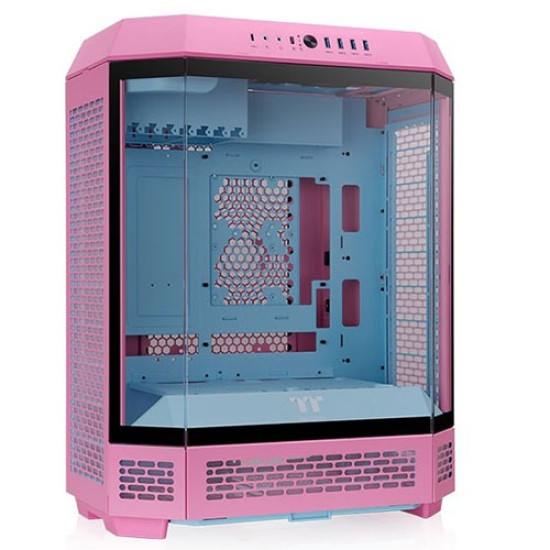

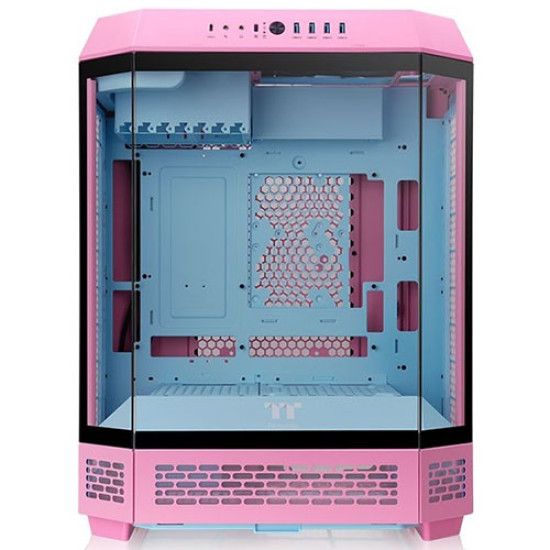

The Tower 600 Bubble Pink Mid Tower Chassis

The Tower 600 Bubble Pink is an ATX case with a classic vertical case design and comes in an octagonal prism shape that is compatible with the latest hidden-connector motherboards. It supports up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. With a separately sold Chassis Stand Kit, users can enjoy a unique view with a special horizontal placement.

Unlock Your True Potential

Being the new mid tower chassis of The Tower Series, The Tower 600 Bubble Pink is an ATX case with a classic vertical case design and comes in an octagonal prism shape that is compatible with the latest hidden-connector motherboards. It supports up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. If you want to make The Tower 600 Bubble Pink more visually appealing, you can purchase the separately sold 3.9" LCD Screen Kit and Chassis Stand Kit to upgrade the build; the former to display real-time component information and the latter for a unique view with a special horizontal placement. With its unique design and ample space, The Tower 600 Bubble Pink is ready to unlock the full potential of your configuration.

Classic Vertical Body Design

The Tower 600 Bubble Pinkretains the iconic contours of its predecessors with a vertical body design, but in an octagonal prism shape that provides flexibility and minimizes obstructions to your gaming and workspace.

A Unique View - Horizontal Case Placement

With the optional chassis stand kit, which includes a bottom cover panel and a display stand for horizontal case placement, The Tower 600 Bubble Pink allows for easy customization of the case for a unique viewing experience.

Compatible with Hidden-Connector Motherboards

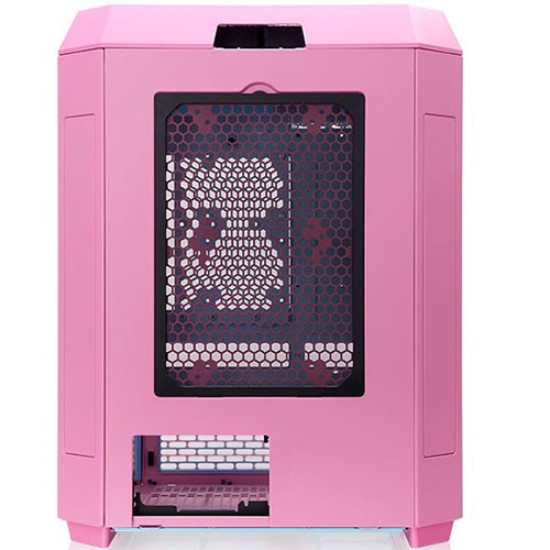

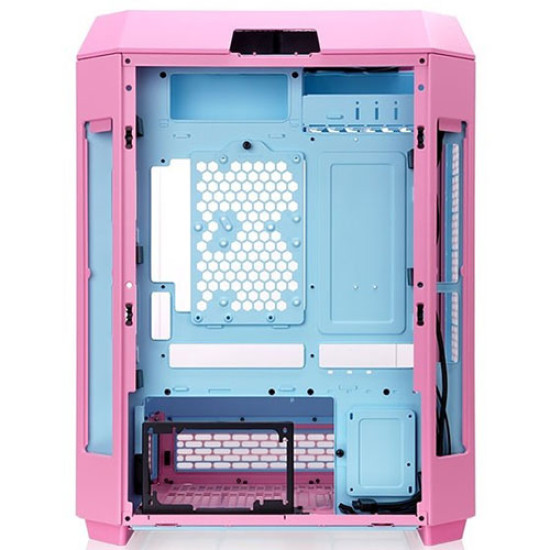

Created for next-generation motherboards, The Tower 600 Bubble Pink features a special design that enables support for both standard motherboards and hidden-connector motherboards. Moreover, there are two removable panels on the both left and right sides of the rear side for easy access to cable routing.

Supports up to a 420mm Radiator on the Right and a 360mm Radiator on the Left

The Tower 600 Bubble Pink provides excellent cooling by supporting up to a 420mm radiator on the right side and a 360mm radiator on the left side, effectively reducing the temperature inside the chassis and maintaining optimal system performance.

Display It Your Way

Rotating PCI-E slots allow you to mount your graphics card in a variety of ways. Two additional GPU brackets provide additional support for your GPU and riser cables. (Riser cable sold separately)

Tool Free Panels for Easy Access

The Tower 600 Bubble Pink features three 3mm tempered glass panels on the front and two perforated panels on each side. All are easily removable without tools.

Two CT140 PC Cooling Fans Pre-installed

The Tower 600 Bubble Pink features two 140mm PWM fans on the top to provide good cooling performance.

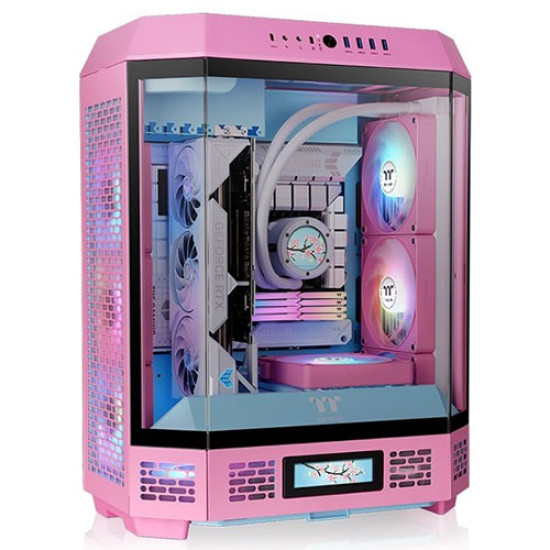

Visually Pleasing, Totally Interactive

Maximize your Tower 600’s visual effects by upgrading it with our LCD Screen Kit.

Personalize Your LCD Display

Through the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.

Choose The Way You Install

Featuring the brackets on the top, left and right side, The Tower 600 Bubble Pink has the capacity to support up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. Installation is a breeze thanks to the removable fan bracket that simplifies the process.

Air Intake and Exhaust

Featuring a vertical chassis design, The Tower 600 Bubble Pink still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

We've Tested Everything, So You Don’t Have To

At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The Tower 600 products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

Massive Airflow & Incredible Performance

Thermal images were taken during thermal testing. Thanks to two CT140 PC Cooling Fans pre-installed, we were able to ensure that The Tower 600 has massive airflow, which ensures amazing cooling performance and a low internal temperature while using the most upscale components.

Perfect Dust Protection

The Tower 600 Bubble Pink has well-designed filters on the top, rear, inner sides, and inner bottom layer to protect the system from dust.

Excellent Hardware Support and Cooling Solution

The Tower 600 Bubble Pink offers excellent hardware support. It can support a CPU cooler with a maximum height of 210mm, a GPU with a maximum length of 400mm (without power cover), a power supply with a length of up to 220mm, three 2.5‘’ SSDs or a total of one 3.5‘’ HDD. Two CT140 fans are pre-installed on the top of the case to improve thermal efficiency. Additionally, three 120mm or two 140mm fans can be installed on top, and up to thirteen 120mm fans or nine 140mm fans can be placed in total. It also supports up to one 420mm AIO radiator on the right side and one 360mm AIO radiator on the left side of the chassis for maximum cooling performance.

How Much Storage Is Totally up to You

For the storage compatibility, The Tower 600 Bubble Pinkcan fit one 3.5” hard drive or up to three 2.5” hard drives.

Optimal Cable Management

The Tower 600 Bubble Pink provides effective cable management with its spacious space and two sets of cable clips in the rear chamber, plus Velcro straps and cable ties in the accessory box for a neat and organized setup.

Top-located I/O ports consist of following functions:

Power Button with Integrated Power LED (White)

HDD LED (Red)

USB 3.0 Type-A x 4

USB 3.2 Gen 2 Type-C x 1

HD Audio

Reset Button

DMD: Dismantlable Modular Design

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

Specifications

P/N : CA-1Z1-00MAWN-00

Series : The Tower

CASE TYPE : Mid Tower

Dimension (H x W x D)

550 x 420 x 286.4 mm

(21.65 x 16.54 x 11.28 inch)

PANEL : 3mm Tempered Glass x 3

Color : Bubble Pink

MATERIAL : SPCC

COOLING SYSTEM

Top(exhaust):

140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2

Drive Bays : 1 x 3.5”, 2 x 2.5” or 3 x 2.5”

EXPANSION SLOTS : 7

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1

PSU : Standard PS2 PSU (optional)

FAN SUPPORT

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Left:

3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Power Cover:

1 x 120mm, 1 x 140mm

Bottom:

1 x 120mm, 1 x 140mm

RADIATOR SUPPORT

Right Side(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Left Side(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

CLEARANCE

CPU cooler height limitation:

210mm

VGA length limitation:

280mm(With power cover)

400mm(Without power cover)

PSU length limitation:

220mm
