Thermaltake View 270 TG ARGB Mid Tower Chassis (CA-1Y7-00M1WN-00)

View 270 TG ARGB Mid Tower Chassis

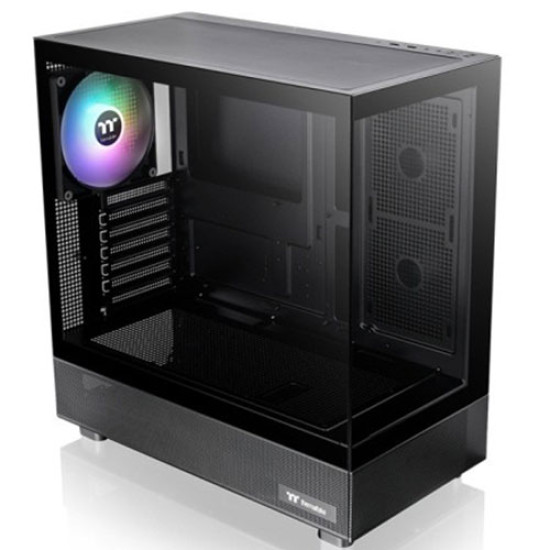

Built for amazing viewing, the View 270 TG ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear.

View 270 TG ARGB Mid Tower Chassis

Built for amazing viewing, the View 270 TG ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 TG ARGB Mid Tower Chassis.

Tempered Glass Front and Left Panels

The View 270 TG ARGB is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.

Supports up to a 360mm Radiator on the Top

Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 TG ARGB.

One CT140 ARGB Sync PC Cooling Fan Pre-installed

The View 270 TG ARGB Mid Tower Chassis comes with a CT140 ARGB Sync PC Cooling Fan pre-installed at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Unify Your Fans with Your Build!

Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.

Unify Your Fans with Your Build!

Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.

Opportunities For High-End Expansion

The View 270 TG ARGB Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes with a pre-installed CT140 ARGB Sync PC Cooling Fan at the rear, and up to nine 120mm fans can be installed. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!

How Much Storage Is Totally Up To You

For storage compatibility, the View 270 TG ARGB gives maximum support of up to two 2.5″ SSDs or two 3.5″ HDDs in total.

Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Specifications

P/N : CA-1Y7-00M1WN-00

Series : View

Model : View 270 TG ARGB

Dimension (H x W x D)

456 x 230 x 454 mm

(18 x 9.1 x 17.9 inch)

NET WEIGHT : 6.3 kg / 13.9 lbs.

PANEL : Tempered Glass x 2

Color : Black

MATERIAL : SPCC

COOLING SYSTEM

Rear(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Drive Bays : 2 x 3.5”, 1 x 2.5” or 2 x 2.5”

EXPANSION SLOTS : 7

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU : Standard PS2 PSU (optional)

FAN SUPPORT

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right (M/B Side):

2 x 120mm, 1 x 120mm

Rear:

1 x 120mm, 1 x 140mm

Power Cover:

3 x 120mm, 2 x 120mm, 1 x 120mm

RADIATOR SUPPORT

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:

1 x 120mm

CLEARANCE

CPU cooler max height: 180mm

VGA max length: 420mm

PSU max length: 220mm
