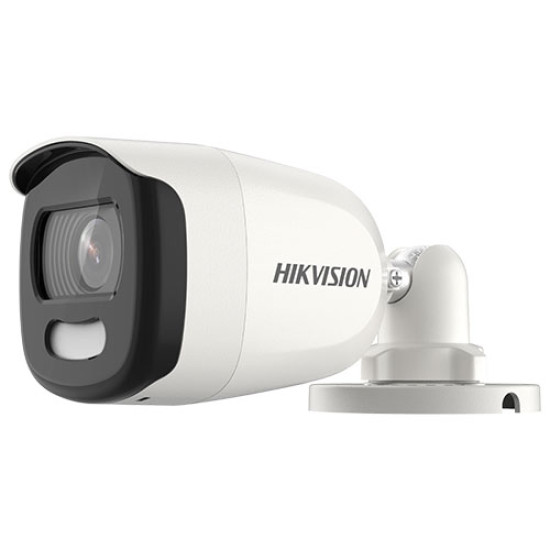

Hikvision 5MP ColorVu Fixed Mini Bullet Camera (DS-2CE10HFT-F)

5 MP ColorVu Fixed Mini Bullet Camera

• 5 MP full time color bullet camera
• 24/7 full color imaging
• Warm supplemental light with 20 m range
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specification
Camera
Image Sensor : 5 MP CMOS
Max. Resolution : 2560 (H) × 1944 (V)
Min. Illumination : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time : PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & Night : Color
Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal System : PAL/NTSC

Lens
Lens Type : 3.6 mm, 6 mm fixed lens
Focal Length & FOV : 80.1° (3.6 mm), 49.3° (6 mm)
Lens Mount : M16

Image Parameters Switch : STD/HIGH-SAT
Image Settings : Brightness, Sharpness, Mirror, Smart Light
Frame Rate : TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
Day/Night Mode : Color
Wide Dynamic Range (WDR) : ≥130 dB
Image Enhancement : BLC, HLC
White Balance : Auto/Manual
White Light : Auto/​Off
AGC : Yes

Interface
Video Output : Switchable TVI/AHD/CVI/CVBS

General
Material : Metal
Dimension : 68 mm × 70 mm × 168.2 mm (2.68" × 2.76" × 6.62")/Approx. 350 g (0.77 lb.)
Operating Condition : ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication : HIKVISION-C
Language : English
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.

Consumption : Max. 3.5 W
White Light Range : Up to 20m

Approval
Protection : IP67
