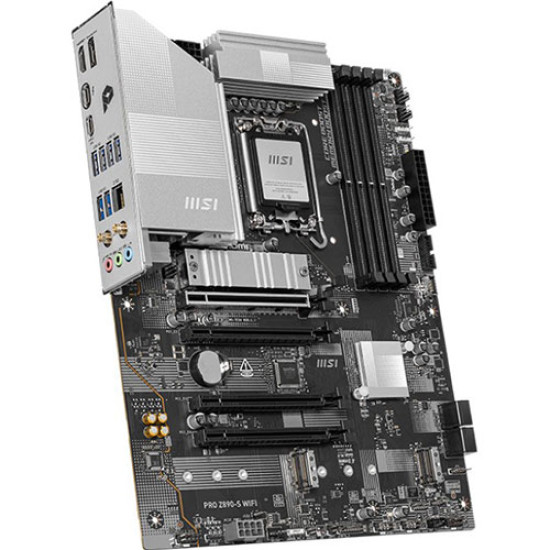

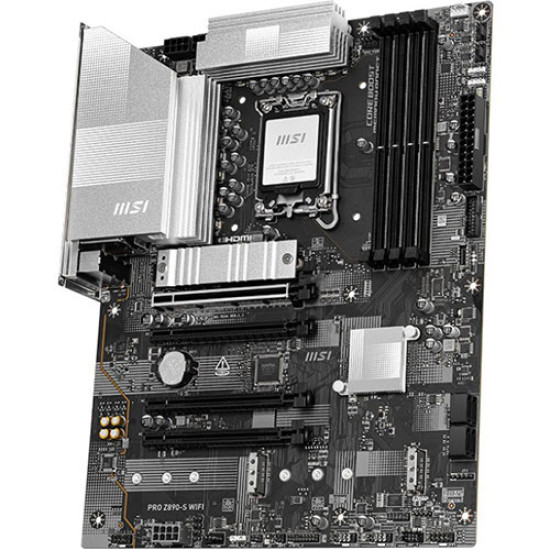

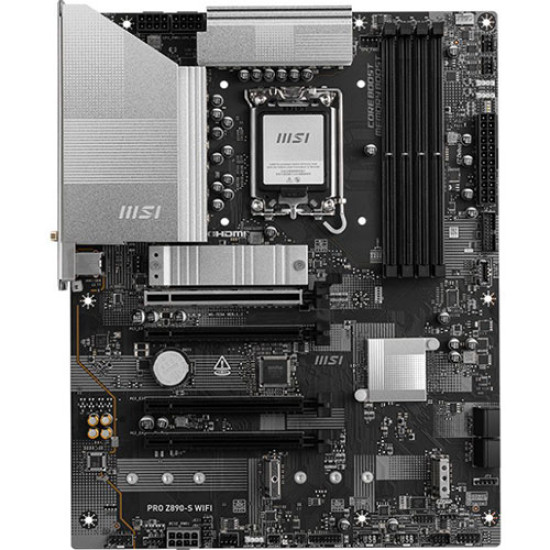

MSI PRO Z890-S WIFI DDR5 Intel Motherboard

PRO Z890-S WIFI

PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

One Finger for EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

12+1+1+1 DRPS POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI is ready for the challenge of high-end processors.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

PRO Z890-S WIFI

Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket

Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)

Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience

EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna

Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2

Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant

2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications

Chipset : INTEL Z890

CPU : Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8800+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel® XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

• The DIMM slots on this motherboard have double-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort

Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

USB

4x USB 2.0 (Front)

6x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 20Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

LAN : Realtek® 8125D 2.5Gbps LAN

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

4x System Fan

1x EZ Conn-header (JAF_1)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE : 4x EZ Debug LED

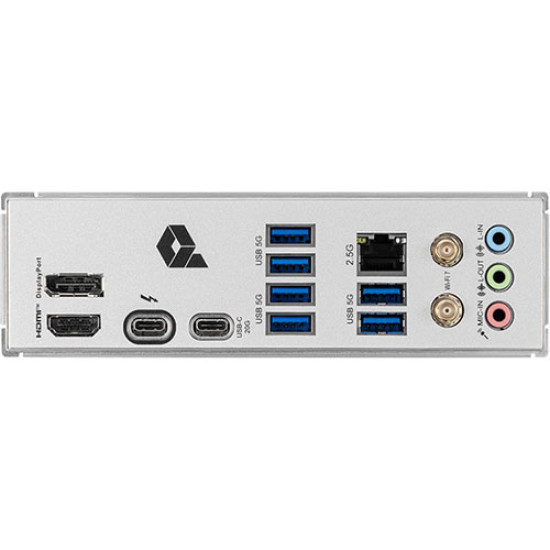

BACK PANEL PORTS

DisplayPort

USB 5Gbps Type-A

2.5G LAN

Wi-Fi / Bluetooth

Audio Connectors

HDMI™

Thunderbolt™ 4 40Gbps (Type-C)

USB 20Gbps Type-C

USB 5Gbps Type-A

OPERATING SYSTEM : Support for Windows® 11 64-bit

PCB Info : ATX 243.84mmx304.8mm
