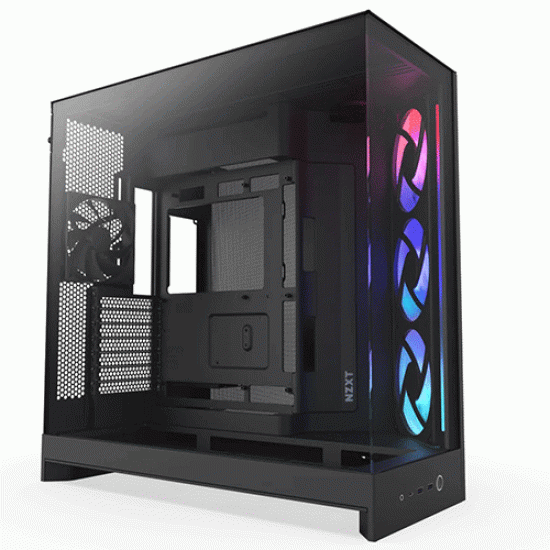

NZXT H9 Flow RGB Dual-Chamber Mid-Tower ATX Case Black (CM-H92FB-R1)

H9 Flow RGB

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

Dual-Chamber Design

Separates main components from the PSU and drives for improved thermal performance and cable management.

Optimized Airflow

Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

Pre-Installed Fans

Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)

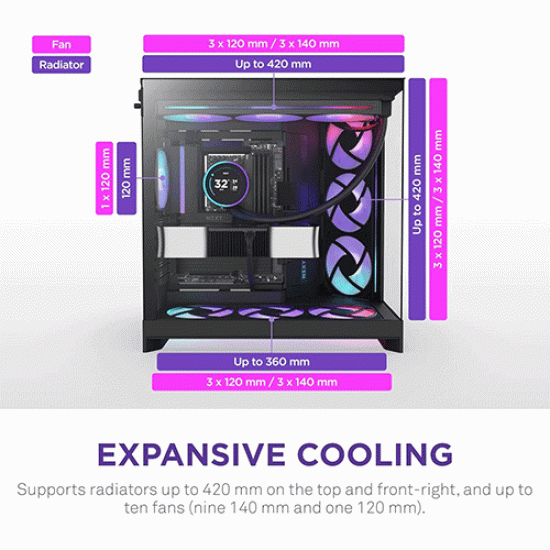

Ten-Fan Capacity

Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

Panoramic View

Showcase every detail of your build with seamless, wraparound tempered glass paneling.

Large Radiators & GPUs

Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

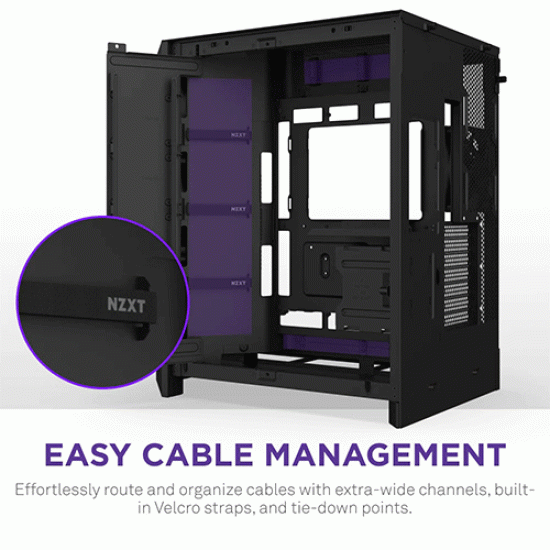

Easy Cable Management

Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.

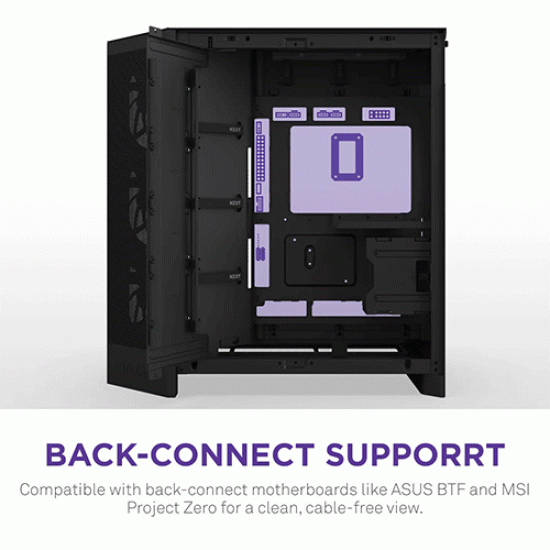

Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

Optimized Airflow

Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Specification

Enclosure Type : Mid-tower

Motherboard Compatibility : E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support (BTF, Project Zero) : Yes (ATX)

Materials : SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Clearance

CPU Cooler Height : 165 mm

GPU Length : Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length : 200 mm

Top Radiator & Fan Thickness : Up to 80 mm (360 mm) Up to 62 mm (420 mm)

Front I/O Ports

USB 3.2 Type-A : 2

USB 3.2 Gen2x2 Type-C : 1

Headset Jack : 1

Expansion Slots

Standard : 7

Vertical : 0

Drive Bays

2.5" : 4+2

3.5" : 2

Fan Support

Front-Right : 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Top : 3 x 120 mm / 3 x 140 mm

Bottom : 3 x 120 mm / 3 x 140 mm

Rear : 1 x 120 mm (1 x F120Q (CV) included)

Radiator Support

Front-Right : Up to 420 mm

Top : Up to 420 mm

Bottom : Up to 360 mm

Rear : Up to 120 mm

Fan Specs - F420 RGB Core

Model : F420 RGB Core

Speed : 2,000 ± 200 RPM

Airflow : 98.61 CFM

Static Pressure : 3.2 mmH2O

Noise : 34.5 dBA

Fan Connector : 8-pin w/ splitter

Fan Specs - F120Q (CV)

Model : F120Q (CV)

Speed : 1,350 ± 150 RPM

Airflow : 60.2 CFM

Static Pressure : 1.05 mmH2O

Noise : 24.1 dBA

Fan Connector : 3-pin

Dimensions

Height : 506 mm (19.9 in)

Width : 315 mm (12.4 in)

Depth : 481 mm (18.9 in)

Volume : 76.7 L

Weight : 12.6 kg (27.78 lb)
