Asus NUC 13 Pro Kit Barebone Mini PC (A-RNUC13ANHI50000)

Key Features

• 13th Generation Intel® Core™ i5 with integrated Intel® Iris® Xe Graphics for selected SKUs.
• For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
• Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
• Dual HDMI 2.1and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
• Qualified for 24×7 operation

Smaller, Faster, Better, AI Ready

The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences. With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Built for Business

Business-class features include remote power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.

The right form factor for your needs

ASUS NUC 13 Pro Mini PCs, Kits, and Boards give the performance you need for desktop applications, embedded devices, and more. Choose the ASUS NUC 13 Pro form factor that fits your needs. You can get a ready-out-of-the box 4×4, a kit with all you need to start your own build, and an NUC 13 Pro board to customize and upgrade.

Kits

ASUS NUC 13 Pro Kits are easy to customize with OS, memory, and storage to meet a wide range of business and home, office needs.

Specification

Model Name :  ASUS NUC 13 Pro Kit

Operating System : Without OS

CPU : Intel® Core™ i5-1340P Processor (TDP28W)

Chipset : Integrated

Graphics : Intel® Iris® Xe Graphics

Wireless Data Network : Pre-Installed Intel® Wi-Fi 6E AX211, 2×2, and Bluetooth® v5.3

Audio : Realtek audio via 3.5mm stereo headset jack Supports 4 HD audio streams via 4 Digital ports (over HDMI& DP)

Memory

Support 2 x SO-DIMM DDR4 2400/2666/3200 MHz

Support 8 GB and 16 GB technology up to 64 GB

Storage

1 M.2 PCIe Gen4 M.2 22×80 (key type M) NVMe only

1 M.2 M.2 22×42 (key type B) SATA SSD, PCIe x1 or

USB 3.2 expandability

LAN

2.5G Ethernet, 10/100/1000/2500 Mbps via Intel® i226 Foxville Gigabit Ethernet

Core i3, i5 and i7 non-vPro SKUs: i226-V

Core i5 vPro and Core i7 vPro SKUs: i226-LM

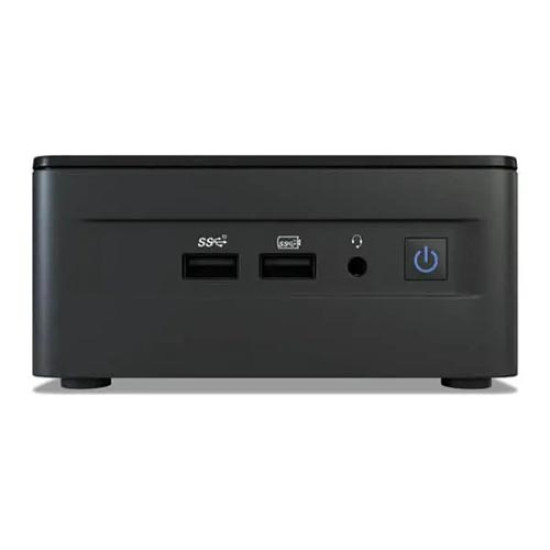

Front(Side) I/O Ports

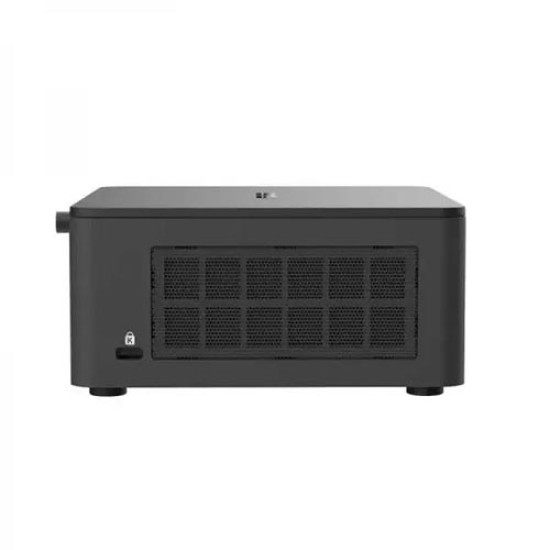

2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging) *Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm

2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging) *Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm

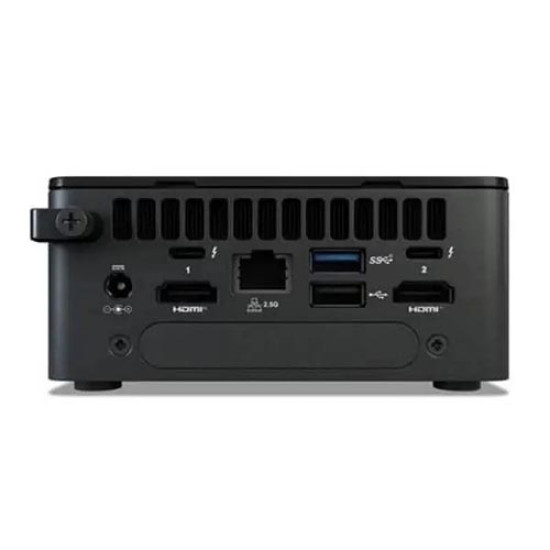

Back I/O Ports

2 x Thunderbolt 4 Type-C Ports

1 x USB 3.2 Gen 2 Type-A

2 x HDMI 2.1 (TMDS) ports

1 x RJ45 LAN Port

1 x DC-in”

2 x Thunderbolt 4 Type-C Ports

1 x USB 3.2 Gen 2 Type-A

2 x HDMI 2.1 (TMDS) ports

1 x RJ45 LAN Port

1 x DC-in

Dimensions (W x D x H)

117mm x 112mm x 36.81mm

117mm x 112mm x 54mm
