Asus NUC 13 Pro Mini PC Barebone (RNUC13ANHH500000I)

Features

13th Generation Intel® Core™ i7/i5/i3 with integrated Intel® Iris® Xe Graphics or Intel® UHD Graphics, and Intel vPro® Technology for selected SKUs.

14 Processor Cores (6P+8E), 20 threads, 24MB Smart Cache, 35W TDP

For professional-grade performance, the 13th Gen Intel Core™ i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP

For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs

Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)

Dual HDMI 2.1and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays

Qualified for 24x7 operation

Smaller, Faster, Better, AI Ready

The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Business Driver. Space Saver.

ASUS NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.

It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.

The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.

To provide an eco-friendly foundation for businesses, ASUS NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.

Built for Business

Business-class features include remote power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.

Intel® Stable IT Platform Program

Take advantage of hardware stability and enterprise-level validation of key hardware components. This formal process helps reduce the number of changes that an organization would see over the life of a device. Intel SIPP program aims for no hardware driver or firmware changes for at least 15 months, or until the next generation product is released.

Comprehensive, Multilayer Security

Evolving threats require all-inclusive security features, designed to the most stringent standards. Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

Complete, Remote Management

In today’s work-at-home world, the office is everywhere. With PCs running on Intel vPro®, IT can be everywhere too.

Sustainability

To provide an eco-friendly foundation for businesses, ASUS NUC 13 Pro Mini PCs and Kits are upgradable, repairable, and reusable.

Every system is qualified for 24x7 operation.

Tested Tough for the Best Performance

Designed to exceed industry standards, each NUC unit undergoes extensive and rigorous testing to ensure exceptional durability and long-term performance—even in the harshest environments. ASUS NUC is committed to delivering one of the best compact solutions in the world, bringing lasting value to businesses.

The right form factor for your needs

ASUS NUC 13 Pro Mini PCs, Kits, and Boards give the performance you need for desktop applications, embedded devices, and more. Choose the ASUS NUC 13 Pro form factor that fits your needs. You can get a ready-out-of-the box 4x4, a kit with all you need to start your own build, and an NUC 13 Pro board to customize and upgrade.

Specifications

Model

ASUS NUC 13 Pro Mini PC

Form Factor

Mini PC

Kit

Board

Operating System

W/O OS

Windows 11 Home

*Pre-configured Windows OS version may differ by country inquire with local sales

No preinstalled OS​

CPU

Intel® Core™ i3-1315U Processor, cTDP 20W

Chipset

Integrated

Graphics

Intel® Iris® Xe Graphics (i5/i7)

Intel® UHD Graphics (i3)

Memory

Max Capacity: 32GB DDR4-3200 SO-DIMM x 2

Storage

Support:

128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD+

128GB~1TB M.2 2242 SATA SSD

Wireless Data Network

Intel® Wi-Fi 6E AX211 (Gig+), Bluetooth 5.3

*Bluetooth® version may change with different OS version.

LAN

Intel® Ethernet Controller I226-V, 2.5G

Audio

Realtek ALC269

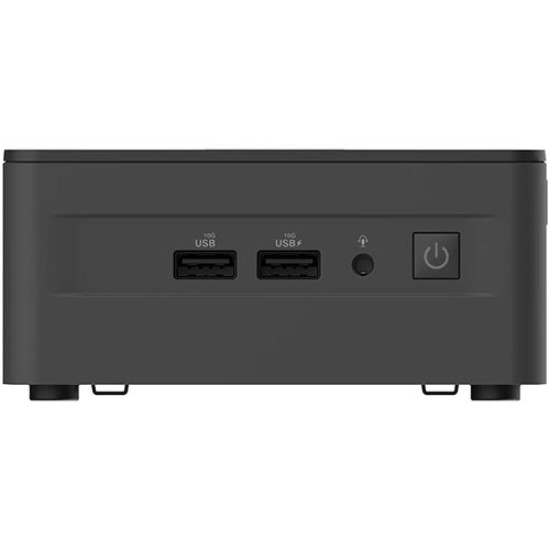

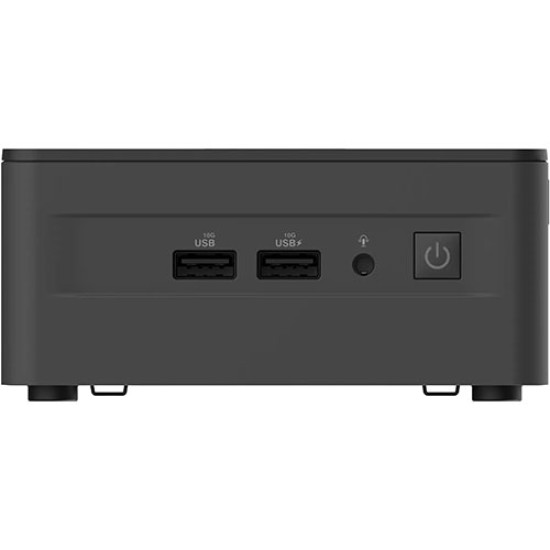

Front(Side) I/O Ports

2 x USB 3.2 Gen2 Type-A

1 x 3.5mm Headset Jack

1 x Kensington Lock

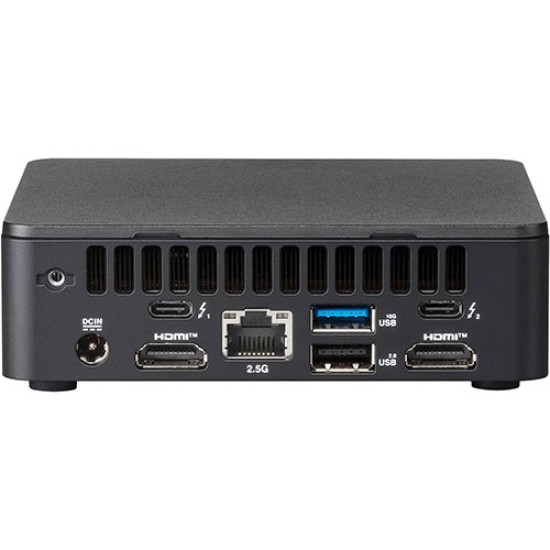

Back I/O Ports

2 x Thunderbolt 4 Type-C w/ DisplayPort 1.4

1 x USB 3.2 Gen 2 Type-A

1 x USB 2.0 Type-A

2 x HDMI 2.1 (TMDS)

1 x RJ45 LAN

1 x DC-in

Power Supply

19VDC, 4.74A, 90W Power Adapter (i3 CPU)

Dimensions (W x D x H)

117 x 112 x 37 mm

Weight

502g

ID

Black, With ASUS LOGO

Accessories

AC Adapter+Power Cord*

VESA Bracket and Screws

Cable Clip

Safety/Caution/Regulatory Insert
