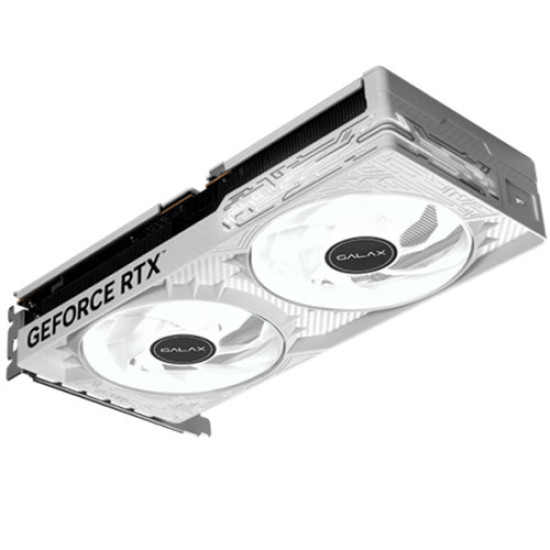

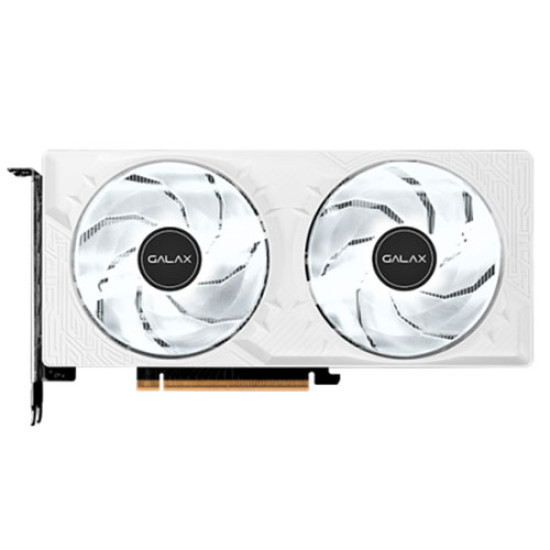

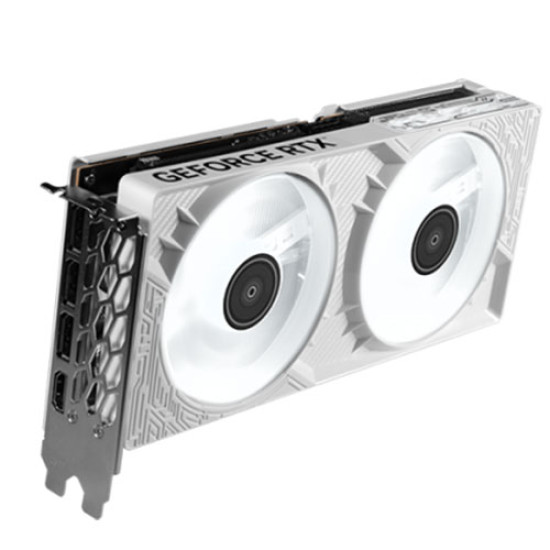

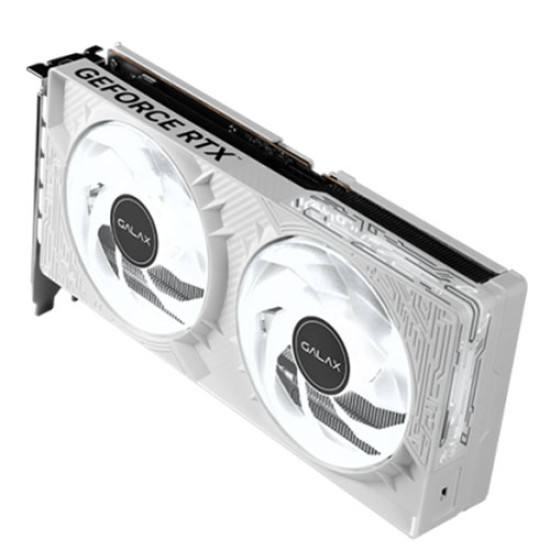

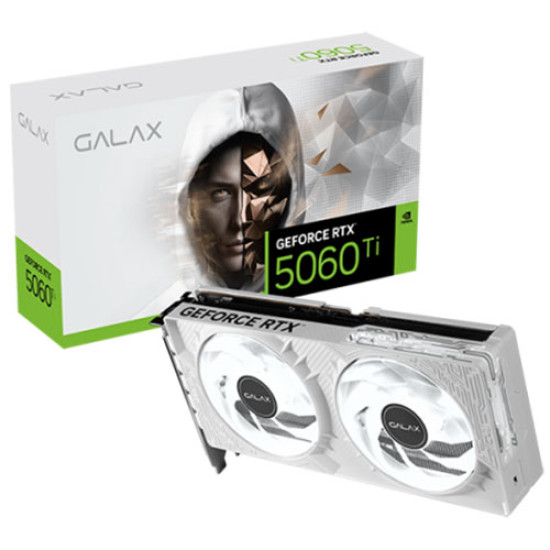

GALAX GeForce RTX 5060 Ti 1-Click OC White 8GB GDDR7

GALAX GeForce RTX™ 5060 Ti 1-Click OC White 8GB

Joining the GeForce RTX 50 Series family, the NVIDIA GALAX GeForce RTX 5060 Ti 1-Click OC takes the stage as the latest addition of the brand-new lineup. Featuring 3*6mm heat pipes and the dual 92mm WINGS 3.0 fans that effectively dissipate heat of the graphics cards, the GPUs are optimized to run at optimal temperatures for sustained peak AI performance, letting the users to harness the groundbreaking power of NVIDIA’s newest Blackwell architecture. It deliver world-leading AI performance for compact PCs, uplifting gaming experiences with faster speed and stunning visuals while simultaneously accelerating workflows for increased productivity.

Features

Powered by the NVIDIA Blackwell Architecture and DLSS 4

Dedicated Tensor Cores

Dedicated RT Cores

Microsoft DirectX® 12 Ultimate

GDDR7 Graphics Memory

NVIDIA DLSS 4

NVIDIA® App

NVIDIA G-SYNC®

NVIDIA GPU Boost™

Game Ready and NVIDIA Studio Drivers

DisplayPort 2.1b, HDMI 2.1b

VR Ready

To 1-Click OC, overclock and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.

The LED lighting effects can be toggled on or off via the onboard physical switch.

All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.

Specifications

GPU Engine Specs:

CUDA Cores: 4608

Boost Clock: 2587MHz

1-Click OC Clock: 2602MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)

Memory Specs:

Memory Speed: 28Gbps

Standard Memory Config: 8GB

Memory Interface Width 128-bit GDDR7

Memory Bandwidth: 448 GB/sec

Feature Support:

PCI-E 5.0

Windows 10/11 64-bit

Fan Feature:

2 * 92mm

WINGS 3.0 with Fan Stop @ Idle (All Fans)

Display Support:

DisplayPort 2.1b x 3, HDMI 2.1b x 1

Dimensions:

Dimensions(with Bracket): 247*131*40.6mm

Dimensions(without Bracket): 235*115.5*39.6mm
