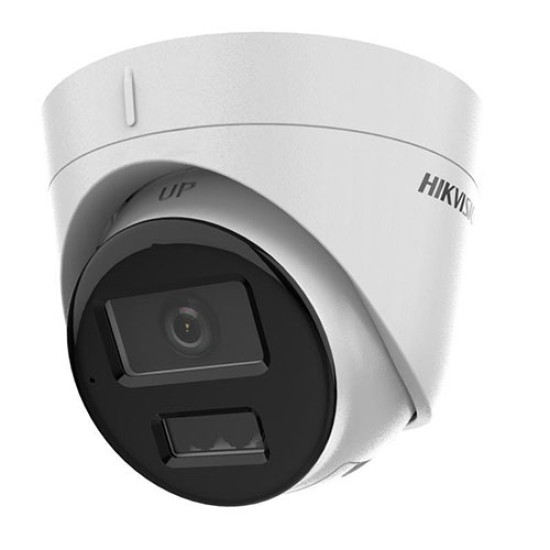

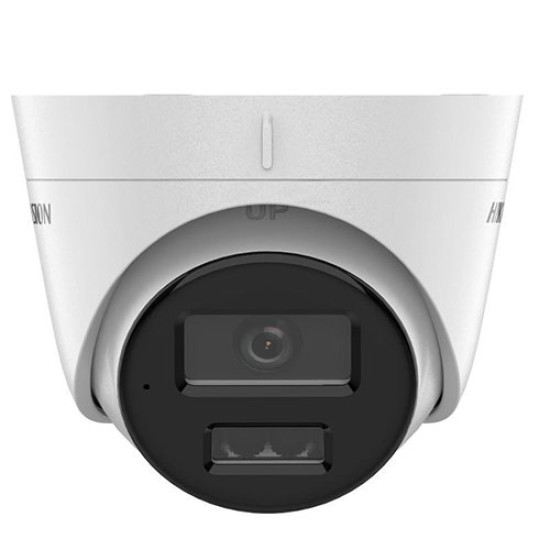

Hikvision 4MP IP Smart Hybrid Light Dome Camera (DS-2CD1343G2-LIU)

Feature

High quality imaging with 4 MP resolution

Support Human and Vehicle Detection

Smart Hybrid Light: advanced technology with long range

Built-in microphone for real-time audio security

Efficient H.265+ compression technology

Support on-board storage up to 512 GB (SD card slot) (Optional)

Water and dust resistant (IP67)

Specification

Camera

Image Sensor : 1/3" Progressive Scan CMOS

Max. Resolution : 2560 × 1440

Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time : 1/3 s to 1/100,000 s

Day & Night : IR cut filter

Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

Lens Type : Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV : 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

Lens Mount : M12

Iris Type : Fixed

Aperture : F1.6

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type : IR,White Light

Supplement Light Range : Up to 30 m

Smart Supplement Light : Yes

IR Wavelength : 850 nm

Video

Main Stream : 50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate : 32 Kbps to 8 Mbps

H.264 Type : Baseline Profile,Main Profile,High Profile

H.265 Type : Main Profile

Bit Rate Control : CBR,VBR

Region of Interest (ROI) : 1 fixed region for main stream

Audio

Audio Type : Mono sound

Environment Noise Filtering : Yes

Audio Sampling Rate : 8 kHz/16 kHz

Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate : 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network Security

Simultaneous Live View : Up to 6 channels

API : Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host : Up to 32 users

3 user levels: administrator, operator, and user

Client : iVMS-4200,Hik-Connect

Web Browser : Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR) : 120 dB

SNR : ≥ 52 dB

Day/Night Switch : Day,Night,Auto,Schedule

Image Enhancement : BLC,HLC,3D DNR

Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Privacy Mask : 4 programmable polygon privacy masks

Interface

Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage : -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone : Yes

Reset Key : -F: Yes

Event

Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage : Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

Power : 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W

Material : Metal & Plastic

Dimension : Ø110 mm × 89.2 mm (Ø4.3" × 3.5")

Package Dimension : 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight : Approx. 340 g (0.7 lb.)

With Package Weight : Approx. 560 g (1.2 lb.)

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language : English, Ukrainian

General Function

Heartbeat,anti-banding,mirror,password protection,password reset via email
