Thermaltake H570 TG ARGB Snow Mid Tower Chassis (CA-1T9-00M6WN-01)

Key Features

H570 TG ARGB Snow Mid-Tower Chassis

H570 TG ARGB Snow mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12“ x 13”) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.

Mesh Front Panel

H570 TG ARGB Snow mid-tower chassis comes with a large airflow-optimized mesh panel at the front for massive airflow performance.

Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans

H570 TG ARGB Snow mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite fans at the front of the case. Users may enjoy the fascinating lighting effects by controlling them through the motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Built-in PSU Cover

H570 TG ARGB Snow mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

Hinged Tempered Glass Panel

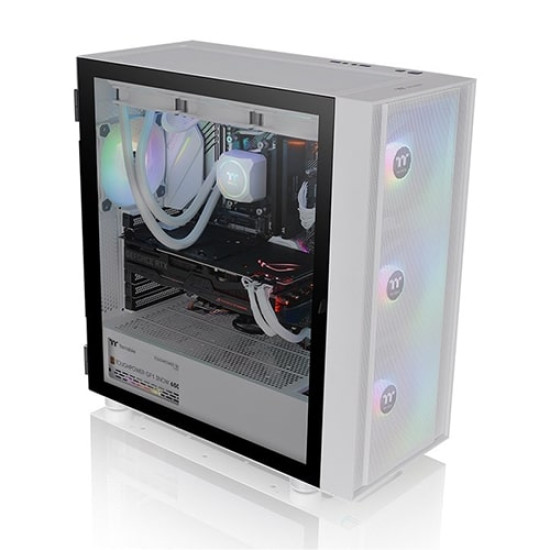

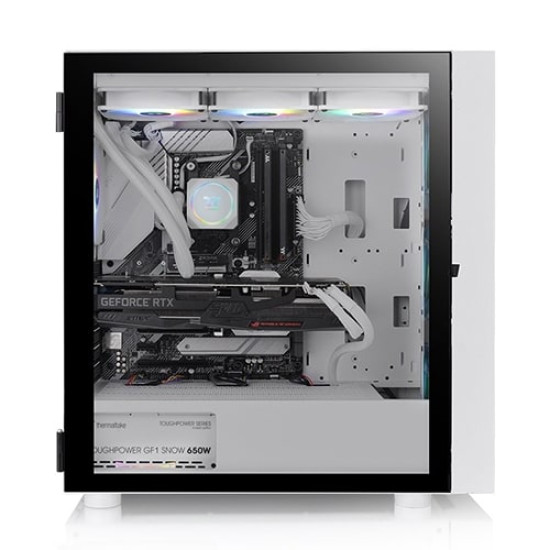

H570 TG ARGB Snow mid-tower chassis comes with one 4mm hinged tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.

Opportunities For High-End Expansion

H570 TG ARGB Snow mid-tower chassis has good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement of up to 375mm in length, a power supply with a length of up to 180 mm (without HDD Rack). Optimized for excellent cooling capability, the case comes with three hydraulic bearing 120mm ARGB Lite fans pre-installed at the front; you can also choose to put two 140mm fans at the front and on top, or even two 200mm fan at the front will fit. For radiator compatibility, it can support up to 360mm at the front and on top, giving more opportunities for high-end expansion!

Handy I/O Ports

Two USB 3.0 ports, and one HD Audio are placed on the top panel to grant direct access when needed.

Specification

P/N : CA-1T9-00M6WN-01

Model : H570 TG ARGB Snow

CASE TYPE : Mid Tower

Dimension (H x W x D) : 487 x 216 x 463.6 mm (19.2 x 8.5 x 18.3 inch)

PANEL : 4mm Tempered Glass x 1

Color : White

MATERIAL : SPCC

Drive Bays : 2 x 3.5”, 2 x 2.5” or 4 x 2.5”

EXPANSION SLOTS : 7

MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),12” x 9.6” (ATX), 12” x 13”(E-ATX)

I/O Port : USB 3.0 x 2, HD Audio x 1

PSU : Standard PS2 PSU (optional)

COOLING SYSTEM

Front(intake):120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3

FAN SUPPORT

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm,

2 x 140mm, 1 x 140mmRear: 1 x 120mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear:

1 x 120mm

CLEARANCE

CPU cooler height limitation:

160mm

VGA length limitation:

375mm

PSU length limitation:

180mm
