ASRock B760M PG Lightning WiFi DDR5 Intel Motherboard

Optimized VRM Design

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Intelligent Cooling Design

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.

The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

High Speed M.2 Solution

This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Wireless Networking

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks

Specification

CPU

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

Supports Intel® Hybrid Technology

Supports Intel® Turbo Boost Max 3.0 Technology

Supports Intel® Thermal Velocity Boost (TVB)

Supports Intel® Adaptive Boost Technology (ABT)

Chipset

Intel® B760

Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

Max. capacity of system memory: 256GB

Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Graphics

Intel® Xe Graphics Architecture (Gen 12)

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Phantom Gaming LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Wireless LAN

802.11ax Wi-Fi 6E Module

Supports IEEE 802.11a/b/g/n/ac/ax

Supports Dual-Band 2x2 with extended 6GHz band support*

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.3 + High speed class II

Supports MU-MIMO

Slots

CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Supports AMD CrossFire™

Supports NVMe SSD as boot disks

Storage

CPU:1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

4 x SATA3 6.0 Gb/s Connectors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

1 x USB 3.2 Gen1 Type-C (Rear)

5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

6 x USB 2.0 (2 Rear, 4 Front)

Connector

1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)*

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector

1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

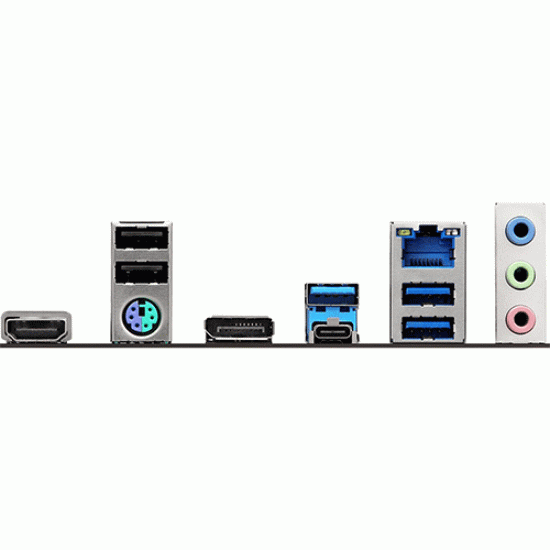

Rear Panel I/O

2 x Antenna Ports

1 x PS/2 Mouse/Keyboard Port

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen1 Type-C Port

3 x USB 3.2 Gen1 Type-A Ports

2 x USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone

Accessories

1 x User Manual

1 x I/O Shield

2 x SATA Data Cables

2 x SMA WiFi Antenna Cables

2 x ASRock WiFi 2.4/5/6 GHz Antennas

1 x Plastic Cover for Wi-Fi Module

3 x Screws for M.2 Sockets

1 x Standoff for M.2 Socket

Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

Microsoft Windows® 10 64-bit / 11 64-bit
