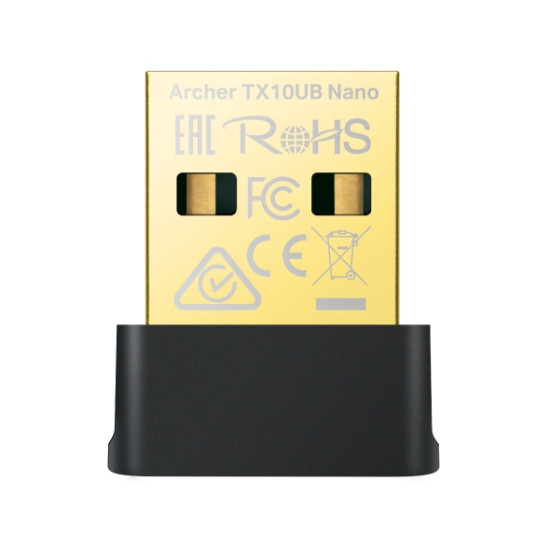

TP Link Archer TX10UB Nano AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter

AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter

High Speed WiFi – Up to 900 Mbps speeds with 287 Mbps on 2.4 GHz and 600 Mbps on 5 GHz, upgrades your devices to higher AX WiFi speeds.

Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.

Reliable Bluetooth 5.3 – Bluetooth 5.3 has been enhanced in terms of reliability and security, which ensures a more robust coordination with your game controllers, headphones, keyboards an etc.

Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there

Operating System – Supports Windows 11/10

Advanced Security – Supports WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption standards

HARDWARE FEATURES

Interface USB 2.0

Dimensions ( W x D x H ) 19.2*15.7*7.4mm

Antenna Omni Directional

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz

Frequency 5GHz

2.4GHz

Signal Rate 5GHz

11ax: Up to 600Mbps(dynamic)

11ac: Up to 433Mbps(dynamic)

11n: Up to 150Mbps(dynamic)

11a: Up to 54Mbps(dynamic)

2.4GHz

11ax: Up to 287Mbps(dynamic)

11n: Up to 200Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 5GHZ：

11a6M：-94dBm；

11ax HE80 MCS11：-59dBm；

11ax HE80 MCS0：-87dBm；

2GHZ：

11g6M：-95dBm；

11ax HE40 MCS11：-65dBm；

11ax HE40 MCS0：-93dBm；

Wireless Modes Infrastructure Mode

Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK

Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,

256-QAM, 1024-QAM

OTHERS

Certification CE, FCC, RoHS

Package Content AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter Archer TX10UB Nano

Quick Installation Guide

System Requirements Windows 11/10

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing
