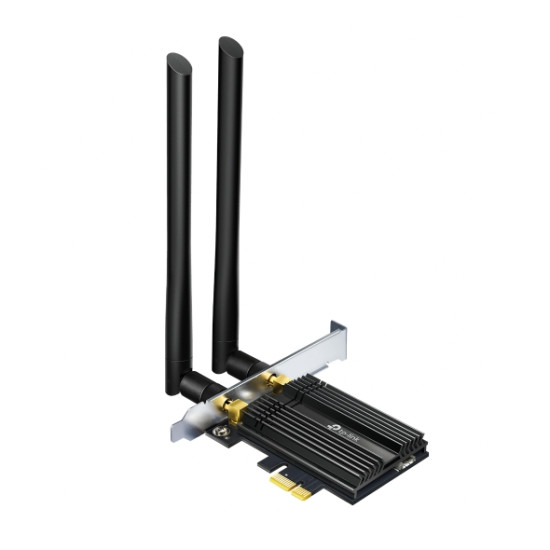

TP Link Archer TX50E AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter

Archer TX50E

AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter

Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Smoother Experience— lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming

Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability

Bluetooth 5.3—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version

Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety

Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments

Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

HARDWARE FEATURES

Dimensions ( W x D x H ) 3.7 x 4.8 x 0.8 in

(95.2 x 120.8 x 21.5 mm)

Antenna Two High-Gain Dual Band Antennas

Bluetooth Features

Standards and Protocols Bluetooth 5.3, Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0

Interface F_USB 2.0

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/g/b 2.4 GHz

Bluetooth 5.3/5.2/5.0/4.2/4.0

WLAN Signal Rate 5 GHz

11ax: Up to 2402 Mbps(dynamic)

11ac: Up to 1733 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11ax: Up to 574 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity 5 GHz :

11ax HT160：-56.25dBm

11ax HT80: -59dBm

11ax HT40: -62.25dBm

11ax HT20: -65dBm

11ac HT160：-62dBm

11ac HT80: -65.5dBm

11ac HT40: -69.75dBm

11ac HT20: -73.75dBm

11n HT40: -74.5dBm

11n HT20: -77.5dBm

11a 54Mbps: -77.75dBm

11a 6Mbps: -94.5dBm

2.4GHz :

11ax HT40: -60.75dBm

11ax HT20: -63.75dBm

11n HT40: -73dBm

11n HT20: -76.25dBm

11g 54Mbps: -76.5dBm

11b 11Mbps: -89dBm

WLAN Transmit Power 5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP),

2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes Infrastructure mode

Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS

Certification CE, FCC, RoHS

Package Content Archer TX50E

Two High-Gain Antennas

Low-Profile Bracket

Standard Bluetooth Header Cable

Quick Installation Guide

Resource CD

System Requirements Windows 11/10(64-bit) only

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
