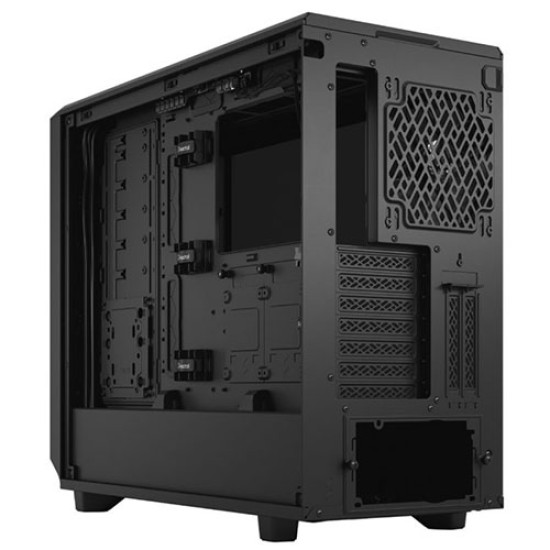

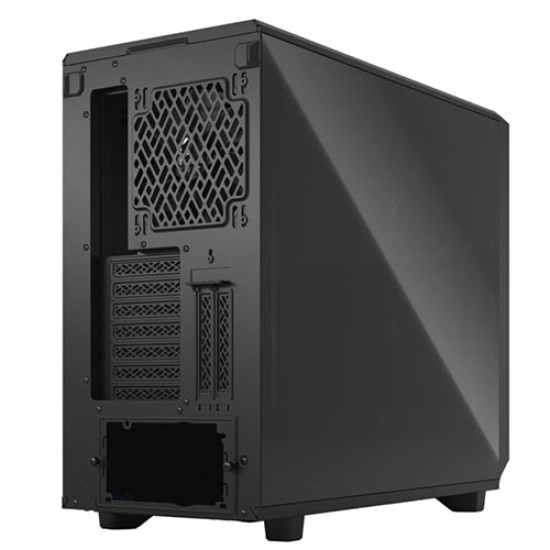

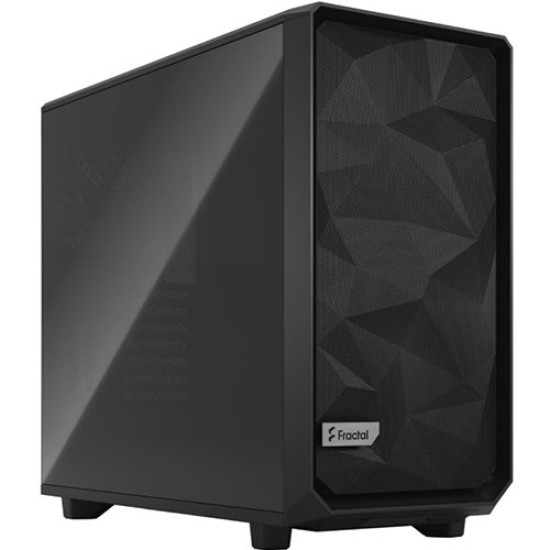

Fractal Design Meshify 2 ATX Mid Tower Case (FD-C-MES2A-03)

Detachable front filter

New front nylon filter that can be removed for increased airflow

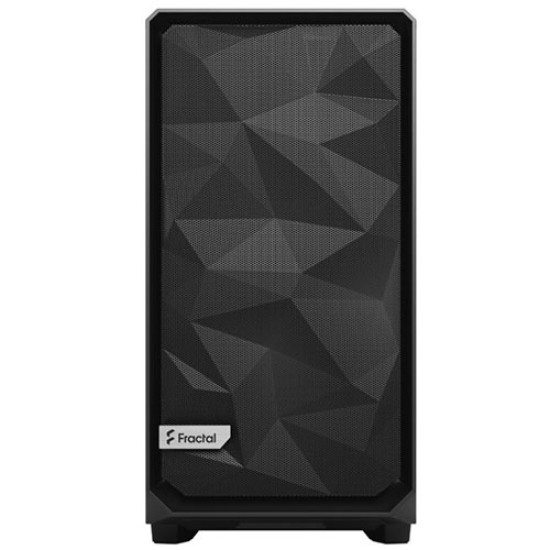

New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans

Superlative storage

Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)

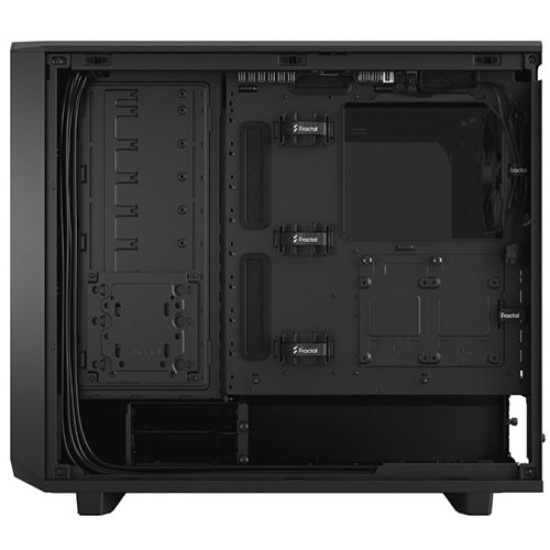

Transformable interior design utilizing a movable wall for enhancing custom builds

The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount

Tool-less, top-latching side panels allow quick access while preventing accidental drops

Extremely flexible

Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout

Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)

Easily holds large motherboards up to and including 285 mm E-ATX

Remove the entire top to build and route with zero hindrance

Type-C Interface

Front I/O offers easy access to ports, including one USB Type-C with speeds up to 20 Gbps.

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Versatile Multibracket

Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

Cable management

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Specifications

3.5"/2.5" Universal drive mounts : 6 included, 14 positions total + 1 Multibracket

Dedicated 2.5" drive mounts : 2 included, 4 positions total

Expansion slots : 7 + 2

Front interface

1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, Reset button

Total fan mounts : 9x 120/140 mm

Front fan : 3x 120/140 mm (2x Dynamic X2 GP-14 included)

Top fan : 3x 120/140 mm

Rear fan : 1x 120/140 mm (1x Dynamic X2 GP-14 included)

Bottom fan : 2x 120/140 mm

Dust filters : Top, front and bottom

Fixed velcro straps : Yes

Cable routing grommets : Yes

Captive thumbscrews : HDD, SSD and PSU brackets

Left side panel : Steel

Right side panel : Steel

Compatibility

Motherboard compatibility : E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX

Power supply type : ATX

PSU max length : 250 mm (with HDD cage installed)

GPU max length

Open layout: 470 mm (445 mm w/ front fan) - Storage layout: 290 mm

CPU cooler max height : 185 mm

Front radiator : Up to 360/280 mm

Top radiator : Up to 360/420 mm

Rear radiator : 120 mm

Bottom radiator : Up to 240/280 mm

Cable routing space : 30 mm

Dimensions

Case dimensions (LxWxH) : 542 x 240 x 474 mm

Case dimensions w/o feet/protrusions/screws : 541 x 240 x 454 mm

Package dimensions (LxWxH) : 634 x 542 x 324 mm

Net weight : Solid: 10.1 kg TG: 10.5 kg

Gross weight : Solid: 12.8 kg TG: 13.2 kg

Volume : 58.95 liters
