Thermaltake MAGFloe 360 Ultra ARGB Sync AIO Liquid Cooler (CL-W432-PL12SW-A)

MAGFloe 360 Ultra ARGB Sync AIO Liquid Cooler

The MAGFloe 360 Ultra ARGB Sync features a large 3.95” square LCD display that presents clear, vivid visuals and allows for instant customization through the TT PlayLink app on smartphones. This AIO liquid cooler comes with SWAFAN EX fans, which boast the MAGForce 2.0 Quick Connection Design and Swappable Fan Blade Design, elevating aesthetics by reducing cable clutter and fully showcasing dual-ring RGB lighting in different airflow directions.

Striking Visuals, Peak Performance

Experience superior cooling with the MAGFloe Ultra ARGB Sync, blending sleek design and advanced functionality. Its 3.95” square LCD display offers stunning personalization, while SWAFAN EX fans feature quick magnetic connections and swappable blades for easy installation, tidy cable management, and ideal airflow direction.

Personalize Your LCD Display

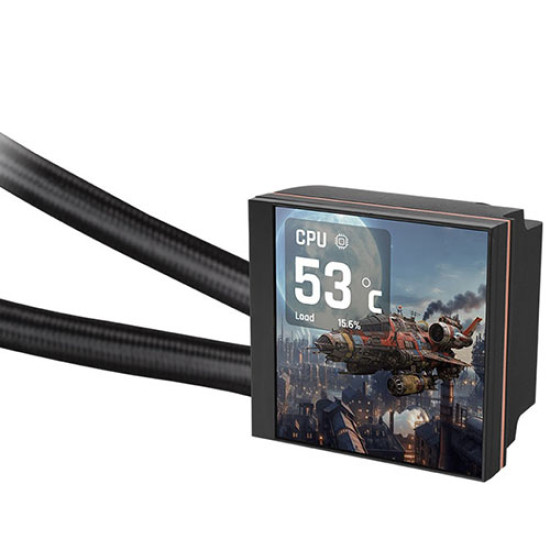

The MAGFloe Ultra ARGB Sync features a premium 3.95” Square LCD Display. This impressive-sized LCD screen comes with 480 x 480 resolution, delivering vibrant, clear, and high-quality visuals that enhance the aesthetics of your build.

Supports the New TT RGB PLUS 3.0 Software

TT RGB PLUS 3.0 software is designed with an enhanced user interface for smoother and more customizable operation. You can monitor real-time information, present local weather and time, and even upload any images or videos on the 3.95” Square LCD Display. Make your system more dynamic and uniquely yours

Take Full Control of Your Real-Time Display

TT RGB PLUS 3.0 offers enhanced control over how real-time system information is presented. Freely choose which system information to show, adjust its on-screen position, customize text colors, and select a background that complements your setup. Make your rig truly your own with a visual showcase that’s uniquely tailored to you.

Enhanced Visual Customization

With the TT RGB PLUS 3.0 software, elevate your experience with optimized default visuals in six styles (CityPunk, WeirdCore, VaporPunk, NeonPunk, Chinese Ink Painting, Minimalist). It supports a wide range of formats including JPG, GIF, PNG, MP4, MOV, and AVI. Effortlessly showcase your favorite images or videos,to unlock creativity with a distinct and personalized visual effect.

Steady Connection with MagForce 2.0

The SWAFAN EX fans included in MAGFloe Ultra ARGB Sync are upgraded to the MagForce 2.0 connector, whose Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment, whether you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Say Goodbye to Excessive Cables

Connect your fans with SWAFAN EX’s MagForce 2.0 Quick Connect Design and be free from messy cables

Unlocks the Full Potential of RGB Lighting

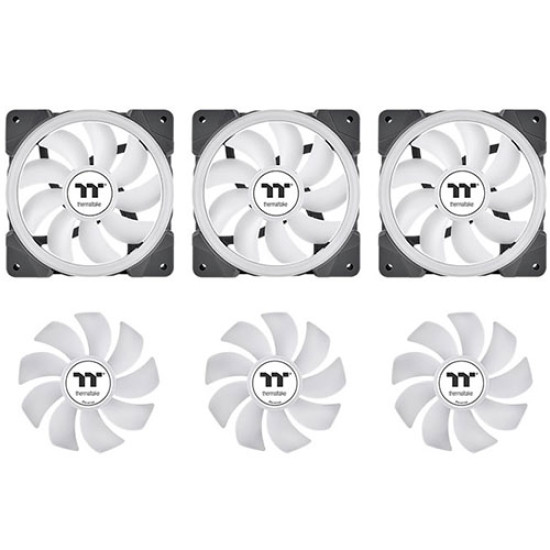

With the Swappable Fan Blade Design, the MAGFloe Ultra ARGB Sync Liquid Cooler incorporates three standard blades and reverse blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction

Enhanced Cooling Surface With A Compact Design

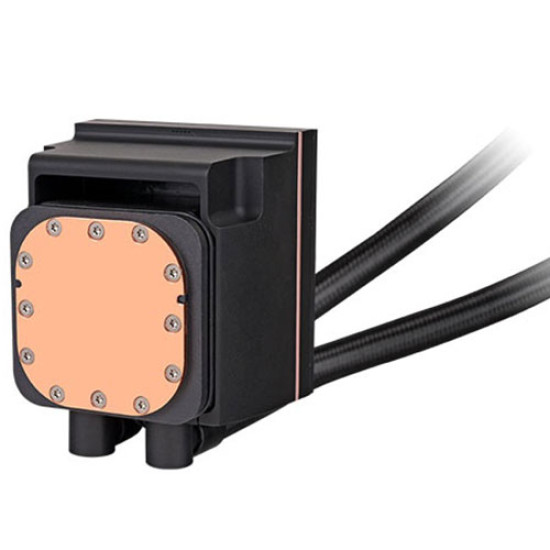

The MAGFloe Ultra ARGB Sync series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.

Specifications

P/N : CL-W432-PL12SW-A

PUMP

Motor Speed : PWM 1500~3300 RPM

Rated Voltage : 12V

Rated Current : 0.43A

Power Input : 5.16W

CPU Display

Rated Voltage : 5V

Rated Current : 0.26A

Power Input : 1.3W

Display Type : 3.95”TFT-LCD

Display Resolution : 480x480 (RGB) px

Display Support

Interface : Micro USB to USB (9PIN)

System Compatibility : Windows 10 / 11

WATER BLOCK

Material : Copper

Fan

Dimension : 120 x 120 x 25 mm

Fan Speed : PWM 500~2000 R.P.M

Rated Voltage : 12V/5V

Rated Current : 0.27 A & 0.72 A (one fan)

Power Input : 3.24 W & 3.6 W (one fan)

Air Flow

Standard Fan Blade : 57.11 CFM (one fan)

Reverse Fan Blade : 56.26 CFM (one fan)

Static Pressure :

Standard Fan Blade : 2.39 mm-H2O (one fan)

Reverse Fan Blade : 2.02 mm-H2O (one fan)

Noise Level :

Standard Fan Blade : 30.6 dB-A (one fan)

Reverse Fan Blade : 32.5 dB-A (one fan)

Tube

Length : 460mm

Material : Rubber

Radiator

Dimension : 396 x 120 x 27 mm

Material : Aluminum

COMPATIBILITY

Intel LGA 2066/2011-3/2011/1851/1700

1200/1156/1155/1151/1150

AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

TDP : 355W
