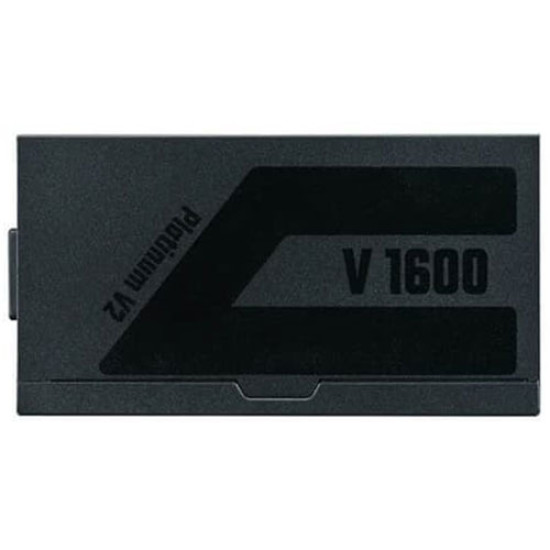

Cooler Master V Platinum 1600 Watt V2 ATX 3.1 SMPS (MPZ-G002-AFAP-BIN)

Features:

Dual 40 series​ GPU support

ATX 3.1 support & two durable 90° 12V-2x6 cables

Advanced heat dissipation

Ultra-quiet Mobius fan

80 Plus Platinum certification

12-year warranty

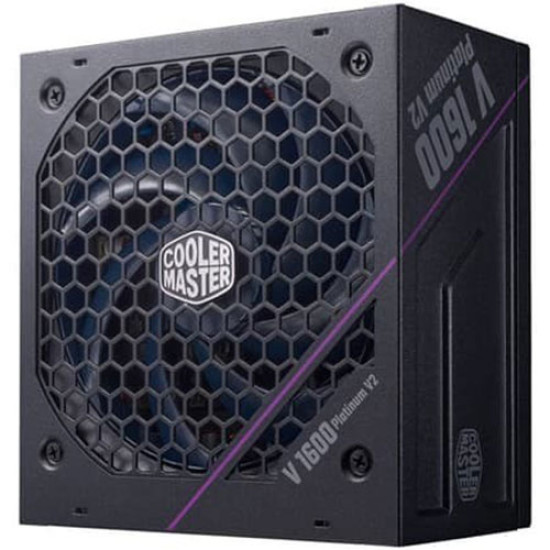

Ultra-quiet Mobius fan

An ultra-quiet Mobius fan featuring high-performance oil reflow and an innovative ring blade design.

80 Plus Platinum efficiency certification

This unit is certified to achieve more than 92% efficiency at typical loads.

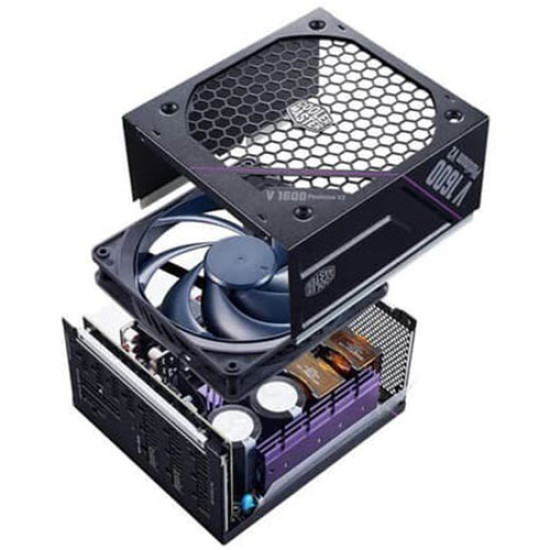

Optimized thermal performance

Anodic-coated heat sinks keep average component temperatures lower than a traditional heatsink for enhanced durability and a prolonged life span.

ATX 3.1 support & a durable 12V-2x6 cable

Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 cable featuring lower temperatures,enhanced durability, and improved safety.

Dual 40 series GPU support

Two 12V-2x6 connectors for dual 40 series GPU support.

Protective coating: A conformal coating provides protection against dust, moisture, and insects.

Interleaved PFC design

An interleaved PFC decreases power loss by minimizing the current and reducing interference.

Smart thermal control mode

Fan speed is automatically adjusted according to the PSU’s operating temperature.

Silent fan performance with a zero-RPM mode

This unit defaults to zero fan spin, providing silent fan performance.

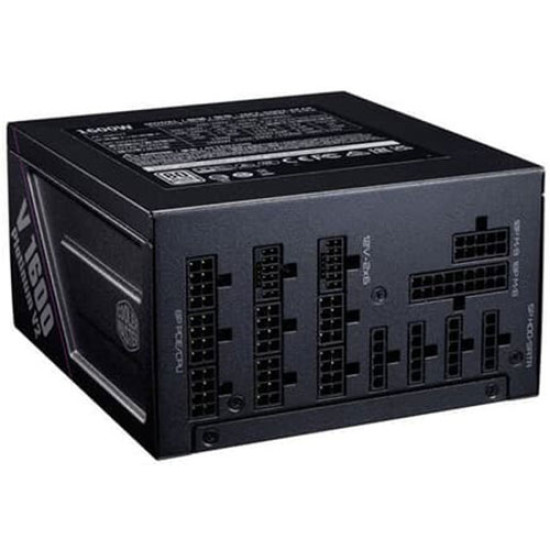

Fully modular cabling

Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.

High-quality Japanese capacitors

Large, high-quality Japanese capacitors feature reduced ripple noise and enhanced reliability.

Specifications

Model : V Platinum 1600 V2

Item Code : MPZ-G002-AFAP-BIN

ATX Version : ATX 12V Ver. 3.1

PFC : Active PFC

Input Voltage : 100 - 240V

Input Current : 16 - 8A

Input Frequency : 50 - 60Hz

Dimensions (L x W x H) : 160 x 150 x 86mm

Fan Size : 135 mm

Fan Bearing : LDB (Mobius FAN)

Fan Speed : 2400±10% rpm

Efficiency : ≥ 92% @ Typical Load

80 PLUS Rating : 80 PLUS Platinum

ErP 2014 Lot : Yes

Operating Temperature : 0 ~ 50℃

Power Good Signal : 100 - 150ms

Hold Up Time : ≥ 16ms

MTBF : >100,000 hours

Protections : OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush

Protection

Regulatory

cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,

RoHS2.0 / BIS, KC (based on region's request.)

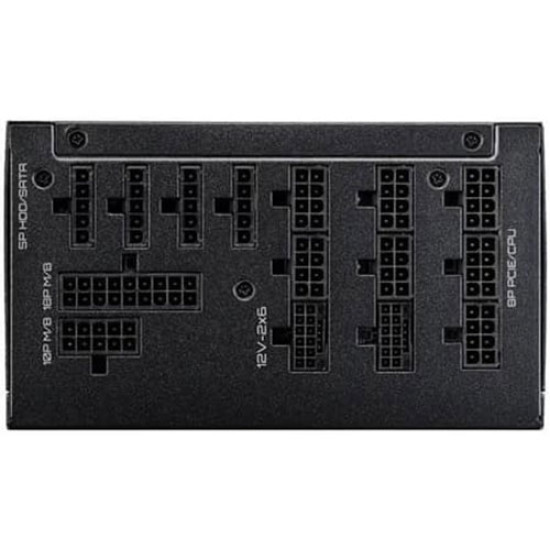

Connectors

ATX 24 Pin : x1 = 1x (650mm)

EPS 4+4 Pin : x1 = 1x (650mm)

EPS 8 Pin : x1 = 1x (650mm)

SATA : x16 = 4x (500+120+120+120mm)

Peripheral 4 Pin : x4 = 1x (500+120+120+120mm)

PCI-e 6+2 Pin : x5 = 5x (550mm)

12V-2x6 : x2 = 2x (650mm)
