Cooler Master MasterLiquid 360 Core II ARGB CPU Liquid Cooler (MLW-D36M-A18PA-R1)

MasterLiquid 360 Core II

Innovative design

Dual chamber pump

Optimum tubing length

Revamped fans

Updated CPU compatibility

Easy installation

Included Cryo-Fuze thermal paste

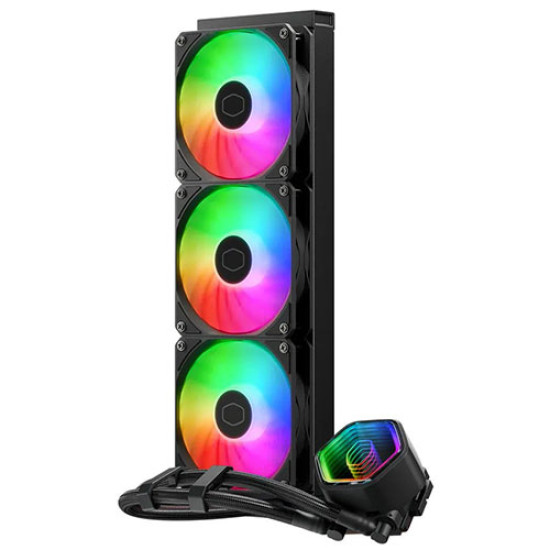

MASTERLIQUID 360 CORE II

Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid 360 Core II. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid 360 Core II

Optimum Tubing Length

400 mm long tubing enables effortless mounting of the cooler in any orientation

Revamped fans

The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look

UPDATED CPU COMPATIBILITY

The Core II is compatible with all of the latest AMD and Intel CPUs

SUPPORT LGA 1851 RL-ILM SOCKET DESIGN

Specifications

Product Number : MLW-D36M-A18PA-R1

Exterior Color : Black

CPU Socket

Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket

CPU Socket : AMD® AM5 / AM4 socket

Radiator Material : Aluminum

Radiator Dimensions : 394 x 119.2 x 27.2 mm / 15.5 x 4.7 x 1.1 inch

Tube Length : 400 mm / 15.75 inch

Pump Dimensions : 83 x 76.2 x 52.3 mm / 3.3 x 3 x 2.1 inch

Pump Profiles : Addressable RGB

Pump Speed : 3000 ± 300 RPM

Pump MTTF : >50,000 Hours

Pump Noise Level : 25 dBA (Max)

Pump Rated Voltage : 12 VDC

Pump Power Consumption : 3.6 W

Pump Connector : 3-Pin ARGB + 4-Pin PWM

Dimensions (L x W x H) : 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch

Fan Profiles : Addressable RGB

Fan Quantity : 3 PCS

Fan Speed : 650-1750 RPM ± 10%

Fan Airflow : 70.5 CFM (Max)

Fan Air Pressure : 2.0 mmH2O (Max)

Fan MTTF : >160,000 Hours

Fan Noise Level : 30 dBA (Max)

Fan Bearing Type : Sleeve Bearing

Fan Connector : 7-Pin PWM + ARGB

Fan Rated Voltage : 12 VDC

Fan Rated Current : 0.23 A

Fan Safety Current : 0.45 A

Fan Power Consumption : 2.76 W

Warranty : 5 years

Cooler Type : Liquid Cooler

Radiator Size : 360

Series : MasterLiquid Lite
