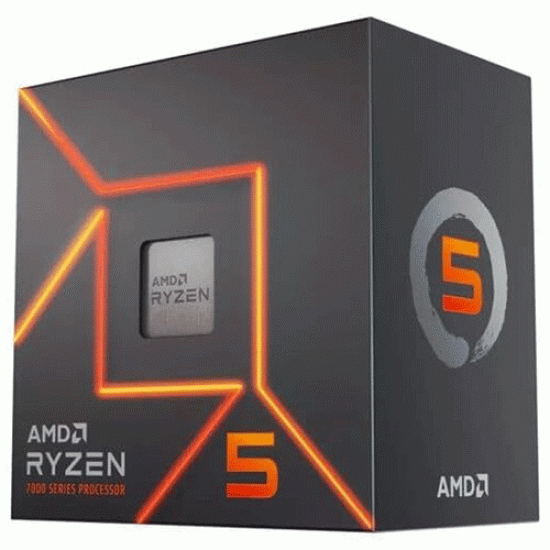

AMD Ryzen 5 7500F 3.7GHz Processor

Specification :

Name : AMD Ryzen™ 5 7500F

Family : Ryzen

Series : Ryzen 7000 Series

Form Factor : Desktops, Boxed Processor

Market Segment : Enthusiast Desktop

AMD PRO Technologies : No

Regional Availability : Global

Former Codename : Raphael AM5

Processor Architecture : Zen 4

# of CPU Cores : 6

Multithreading (SMT) : Yes

# of Threads : 12

Max. Boost Clock  : Up to 5 GHz

Base Clock  : 3.7 GHz

L1 Cache : 384 KB

L2 Cache : 6 MB

L3 Cache : 32 MB

Default TDP : 65W

Processor Technology for CPU Cores : TSMC 5nm FinFET

Processor Technology for I/O Die : TSMC 6nm FinFET

CPU Compute Die (CCD) Size : 71mm²

I/O Die (IOD) Size : 122mm²

Package Die Count : 2

Unlocked for Overclocking  : Yes

AMD EXPO™ Memory Overclocking Technology : Yes

Precision Boost Overdrive : Yes

Curve Optimizer Voltage Offsets : Yes

AMD Ryzen™ Master Support : Yes

CPU Socket : AM5

Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions :

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : AMD Wraith Stealth

Thermal Solution (MPK) : AMD Wraith Stealth

Max. Operating Temperature (Tjmax) : 95°C

Launch Date : 07/22/2023

*OS Support :

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity :

Native USB 3.2 Gen 2 (10Gbps) : 4

Native USB 3.2 Gen 1 (5Gbps) : 0

Native USB 2.0 (480Mbps) : 1

Native SATA Ports : 0

PCI Express® Version : PCIe® 5.0

Native PCIe® Lanes (Total/Usable) : 28 , 24

Additional Usable PCIe Lanes from Motherboard :

X670E 12x Gen4

X670 12x Gen4

B650E 8x Gen4

B650 8x Gen4

A620 4x Gen3

NVMe Support : Boot , RAID0 , RAID1 , RAID10

System Memory Type : DDR5

Memory Channels : 2

Max. Memory : 128 GB

System Memory Subtype : UDIMM

Max Memory Speed :

2x1R DDR5-5200

2x2R DDR5-5200

4x1R DDR5-3600

4x2R DDR5-3600

ECC Support : Yes (Requires mobo support)

Graphics Capabilities :

Graphics Model : Discrete Graphics Card Required

Key Features :

Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies
