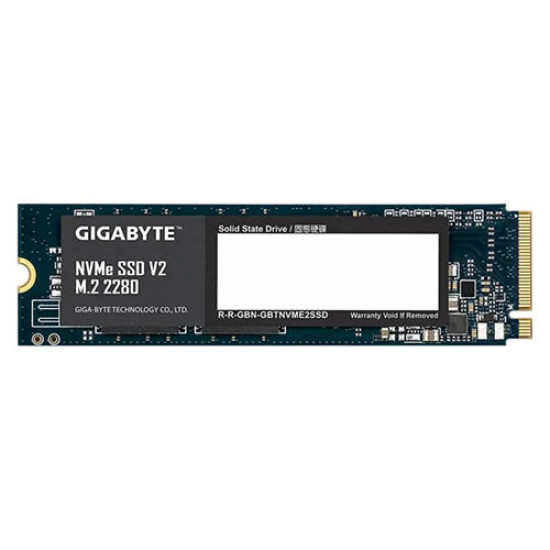

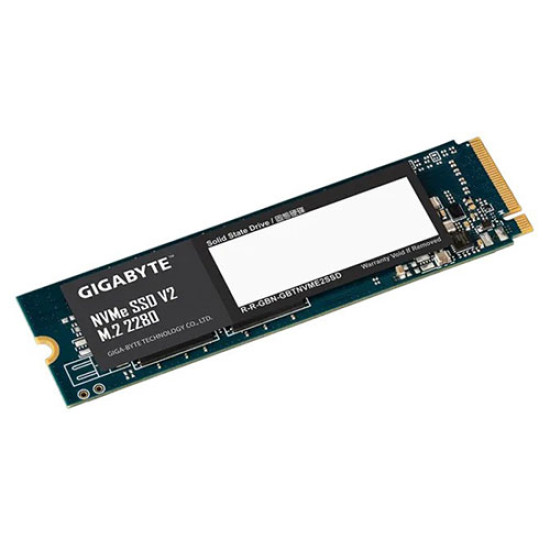

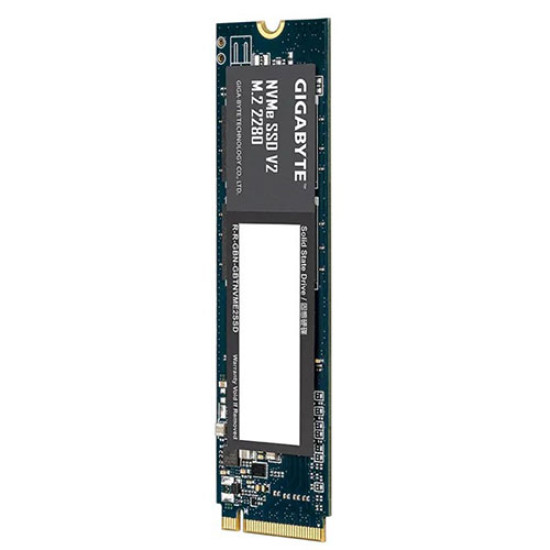

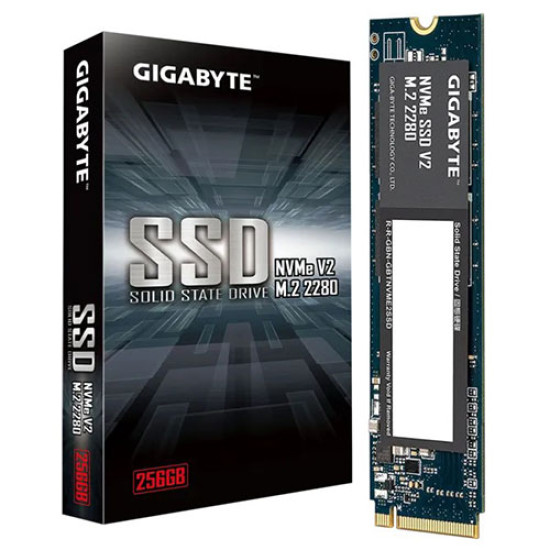

Gigabyte NVMe SSD V2 256GB M.2 2280 SSD

Performance . Stability

GIGABYTE NVMe SSD V2

Host Memory Buffer (HMB)

The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

* HMB feature is only supported by Windows 10 & 11.

Breaking the barriers of SATA limitations (256GB)

Outstanding performance

GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.

Sequential read speeds up to 3200 MB/s.

Sequential write speeds up to 1200 MB/s.

GIGABYTE NVMe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive

SSD Tool Box

The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Suppor

GIGABYTE CONTROL CENTER (GCC)

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

Unified software platform for all Gigabyte supported products

Intuitive user interface for an eased experience

Modularized control components only for installed hardware

Auto update function to keep system up to date and support future products

Specification

Interface : PCI-Express 3.0 x4, NVMe 1.4

Form Factor : M.2 2280

Total Capacity : 256GB

NAND : 3D TLC NAND Flash

External DDR Cache : N/A

Sequential Read speed : Up to 3,200 MB/s

Sequential Write speed : Up to 1,200MB/s

Dimension : 80 x 22 x 2.3 mm

Mean time between failure (MTBF)

Max. Operating Power : 1.5 million hours

Read : 4.2W; Write : 3.0W

Power Consumption (Idle, PS3) : 35mW

Power Consumption(PS4, L1.2) : 5mW

Temperature (Operating) : 0°C to 70°C

Temperature (Storage) : -40°C to 85°C
