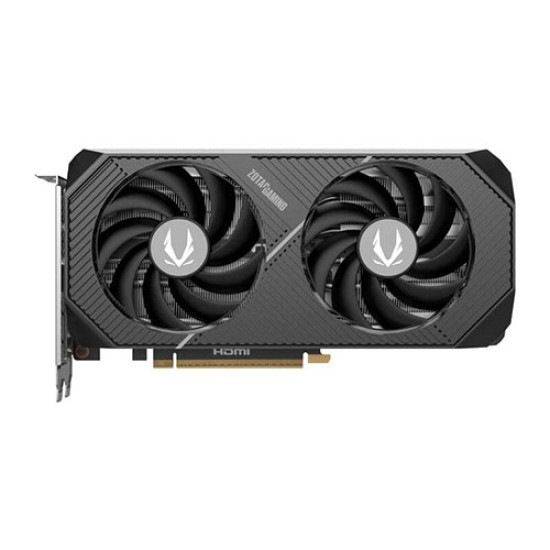

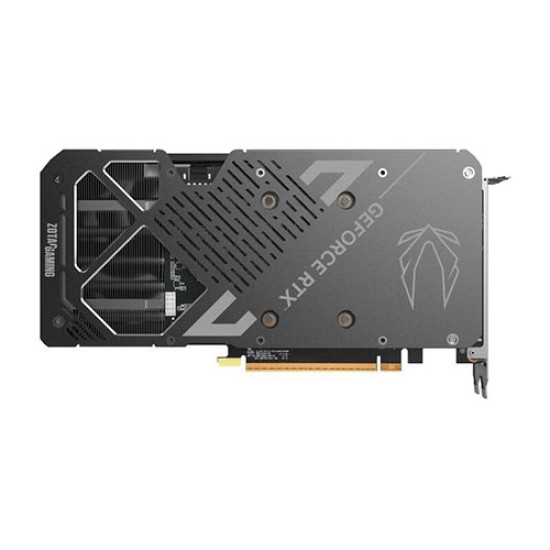

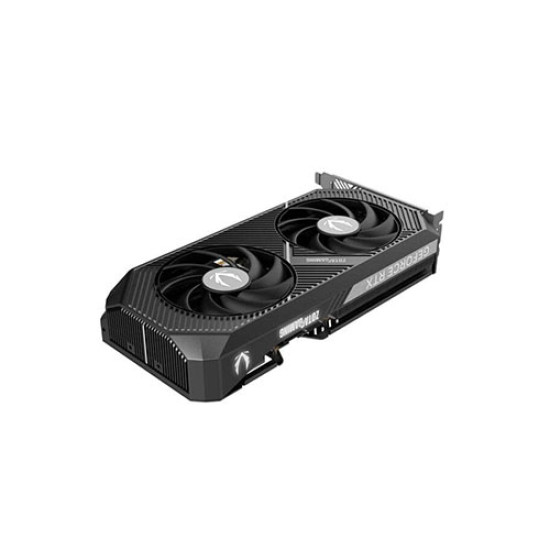

ZOTAC GAMING GeForce RTX 5070 Twin Edge OC 12GB GDDR7 (ZT-B50700H-10P)

ZT-B50700H-10P

The ZOTAC GAMING GeForce RTX 5070 Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 12GB of GDDR7 memory. Compact yet powerful, the Twin Edge OC is ready to take on both gaming and AI workloads with its impressive performance.

Feature Highlights:

- Powered by the NVIDIA Blackwell architecture and DLSS 4

- NVIDIA SFF-Ready Enthusiast GeForce Card

- Compact dual-fan form factor

- IceStorm 2.0 Cooling

- BladeLink Fans

- FREEZE Fan Stop

- Metal Backplate

- Power Safety Light

Specification

GPU : NVIDIA GeForce RTX 5070 GPU

CUDA cores : 6144

Video Memory : 12GB GDDR7

Memory Bus : 192-bit

Engine Clock : 2542 MHz

Memory Clock : 28 Gbps

AI TOPS : 988

PCI Express : PCI Express 5.0 x16

Display Outputs : 3 x DisplayPort 2.1b with UHBR20(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI® Connector : (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)

HDCP Support2.3

Multi Display Capability : Quad Display

Recommended Power Supply : 650W

Power Consumption : 250W

Power Input : 1 x 12v-2x6 power input

DirectX : Microsoft DirectX® 12 Ultimate

OpenGL : 4.6

Cooling : IceStorm 2.0

Slot Siz : 2

SLI : No

Supported : OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length : 241.5mm x 120.1mm x 40.6mm / 9.5" x 4.7" x 1.6"

AccessoriesUser Manual : 2 x 8-pin-to-16-pin cable
