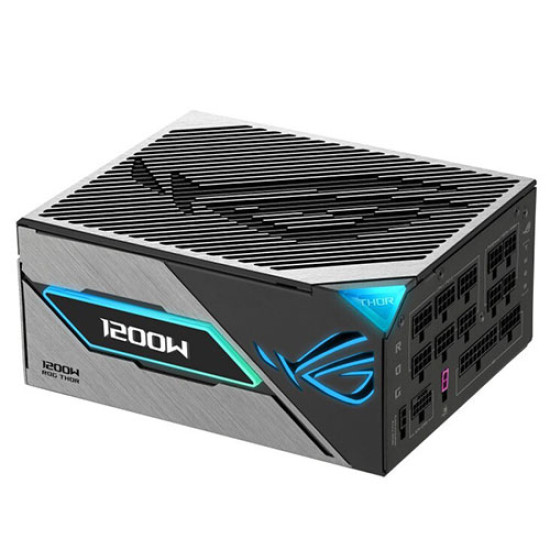

Asus ROG Thor 1200W Platinum III ATX 3.1 PSU (ROG-THOR-1200P3)

ULTIMATE POWER. UNMATCHED STABILITY.

The ROG Thor 1200W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

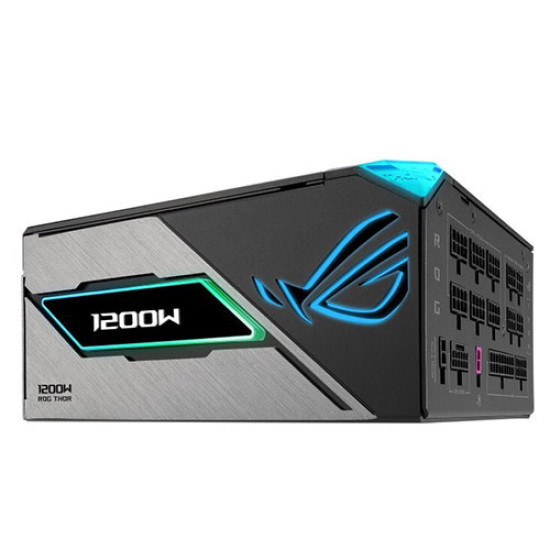

The ROG Thor 1200W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

GaN MOSFET

The ROG Thor 1200W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system's performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

Specification

Model : ROG Thor 1200W Platinum III

PFC Type : Active PFC

ATX Standard : ATX 3.1

Dimensions : 190 x 150 x 86 mm

Efficiency : 80Plus Platinum

MTBF : >120,000 hrs @ 25°C

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials : ROHS

AC Input Range : 100-240Vac

DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

Maximum Load : 30A 25A 100A 0.3A 3A

Combined Load : 125W 125W 1200W 3.6W 15W

Total Output : 1200W

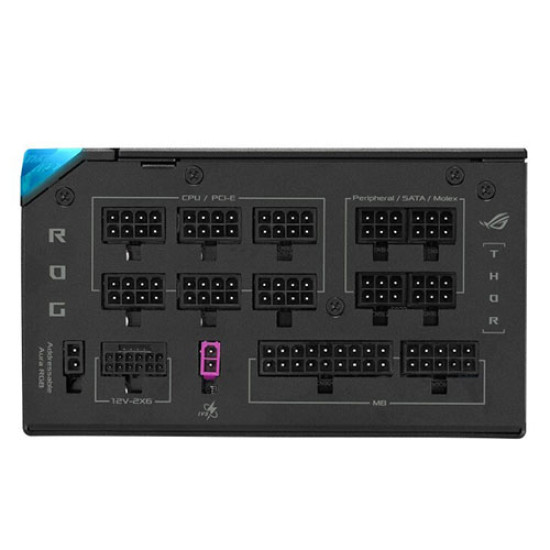

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1

PCI-E 6+2-pin x 4

SATA x 7

PERIPHERAL x 6

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (1000mm)

PCI-E Gen 5.1 16-pin Cable x 1 (750mm)

PCI-E Cable 1-to-1 x 4 (750mm)

SATA Cable 1-to-4 x 1 (400+120+120+120mm)

SATA Cable 1-to-3 x 1 (400+120+120mm)

Peripheral 1-to-3 x 2 (400+150+150mm)

Addressable RGB Cable x 1 (800mm)

ROG sticker x 1

ROG cable tie x 6

Chassis Screws Package x 1

Cable Tie x 12

User Manual x 1

Weight : 2.37 KG (single PSU)

AURA SYNC : ARGB

Cybenetics Noise Level Certification : A++

0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button : Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
