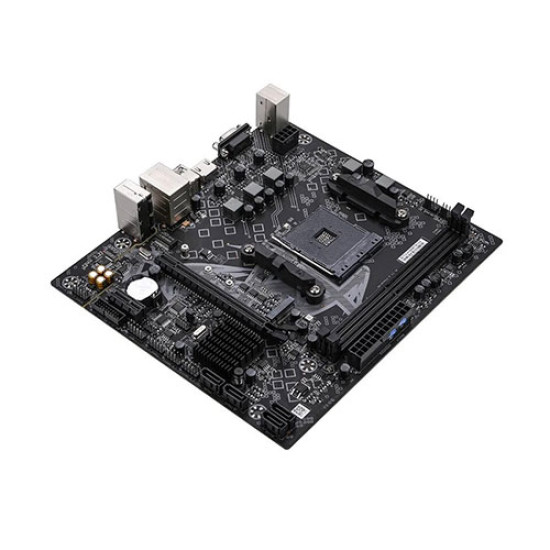

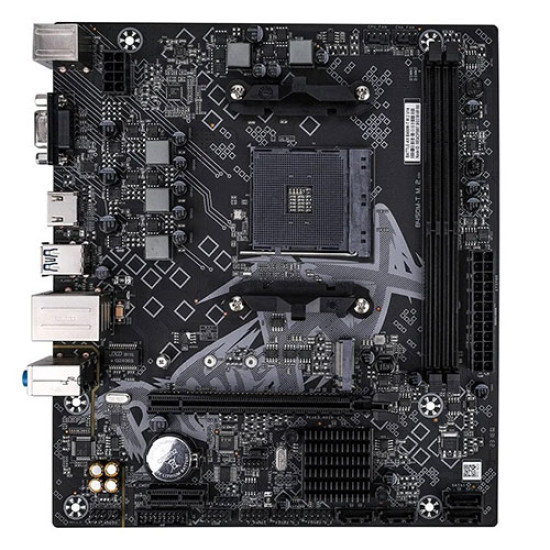

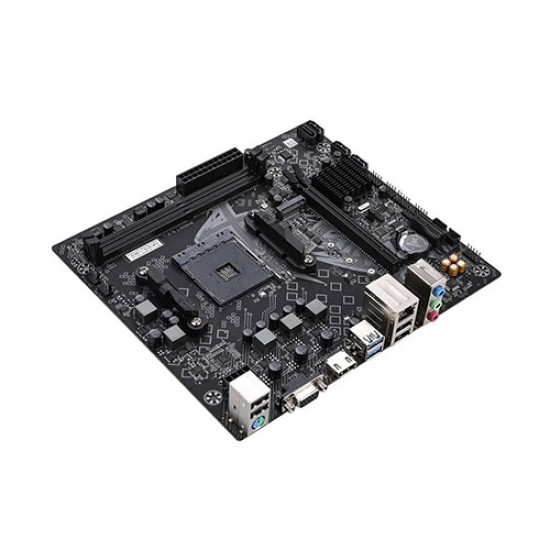

Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard

Feature Highlights:

Provide 1 PCIe 3.0 x4 M.2 SSD slot

Provide 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces

Provide 4 USB 2.0 interfaces

Equipped with RTL8111H gigabit wired network card

Provide HDMI+VGA display interface

Six major protective technologies for more stable product operation

Strict testing of 200 processes ensures quality assurance

PCB atomization process fully upgraded

Specification

Model : BATTLE-AX B450M-T M.2 V14

Product Series : BATTLE-AX series

Chipset : AMD B450

Processor : Ryzen series processors compatible with motherboard AM4 slots

(* Please visit the official website of Colorful at www.colorful.cn for the latest processor support list)

Memory : 2 DDR4 memory slots that can support up to 64 GB of memory capacity (up to 32 GB per slot)

- Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory

- Supports Extreme Memory Profile (XMP) memory technology

- Supports dual channel memory technology

(* Please visit the official website of Colorful at www.colorful. cn for the latest memory compatibility list)

SATA Ports : 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces

- M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel)

Board I/O Rear I/O:

-4×USB 2.0 interfaces

-2×USB 3.2 Gen 1 Type-A interfaces

-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution

-1×VGA interface

-1×PS/2 interface

-1×Gigabit network interface

-3×Audio interfaces (audio input/output/microphone)

On board :

-1×CPU fan pin

-1×System fan pin

-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

-1×Front audio pin

-1×Front panel pin

-1×Speaker pin

-1×COM port pin

-1×Clear CMOS jumper

-1×Debug light pin

Expansion Slots : 1 PCIe 3.0 x16 slot1 PCIe 3.0 x1 slot

BIOS : 128M UEFI, support multiple languages

Power Management : Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN : RTL8111H Gigabit Ethernet Card

Audio : Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels

Configuration : M-ATX220mmx195 mm
