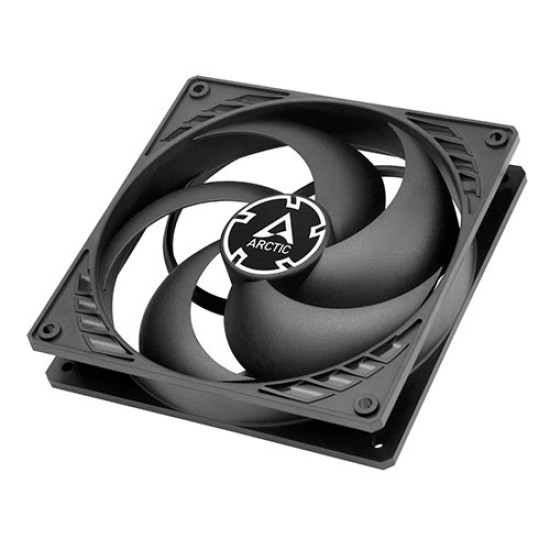

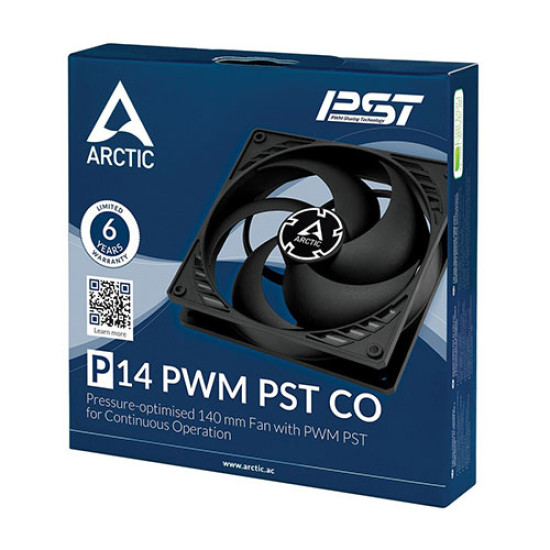

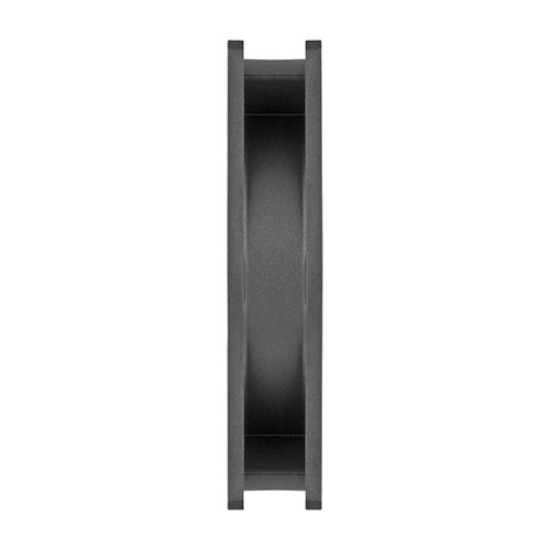

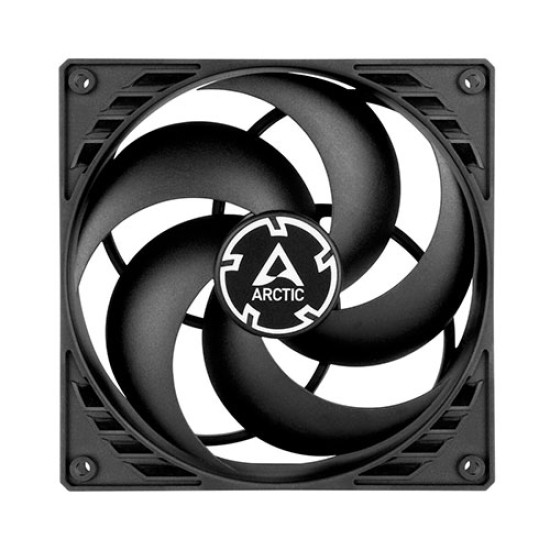

Arctic P14 Pro PST 140 mm PWM Fan with Cable Splitter (ACFAN00314A)

Optimised for Static Pressure

During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators.

0 dB Mode — Zero rpm

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

More Efficient Technology

The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM PST CO to run much more efficiently than its predecessors. This saves energy without compromising the performance.

For Continuous Operation

The premium quality of the dual ball bearing allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary sleeve or ball bearings. Therefore, the dual ball bearing is the perfect choice if you want to ensure continuous operation at maximum speed. Please note that ball bearings have a physically higher bearing noise compared to conventional sleeve bearings.

Maximum Quietness, Minimum Vibration

Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

200 to 1700 rpm Regulated via PWM

With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Two Way Installation

Push warm air out of the case

Pull cool air into your case

Specification

Fan Speed : 200—1700 rpm PWM Controlled (0 rpm below 5 % PWM)

Airflow : 72.80 cfm | 123.76 m³/h

Static Pressure : 2.40 mmH2O

Noise Level : 0.3 Sone

Operating Ambient Temperature : 0—40 °CFan Speed: 200—1700 rpm PWM Controlled (0 rpm below 5 % PWM)

Airflow: 72.80 cfm | 123.76 m³/h

Static Pressure: 2.40 mmH2O

Noise Level: 0.3 Sone

Operating Ambient Temperature: 0—40 °C

Fan Frame : Standard

Control Type : PWM PST

Connector : 4-Pin Connector + 4-Pin Socket

Fan Bearing : Dual Ball Bearing

Typical Voltage : 12 V DC

Starting Voltage : 3.9 V

Current | Voltage : 0.12 A | 12 V DC

Cable Length : 400 mm

Length : 140 mm

Width : 140 mm

Height : 27 mm

Weight : 194 g
