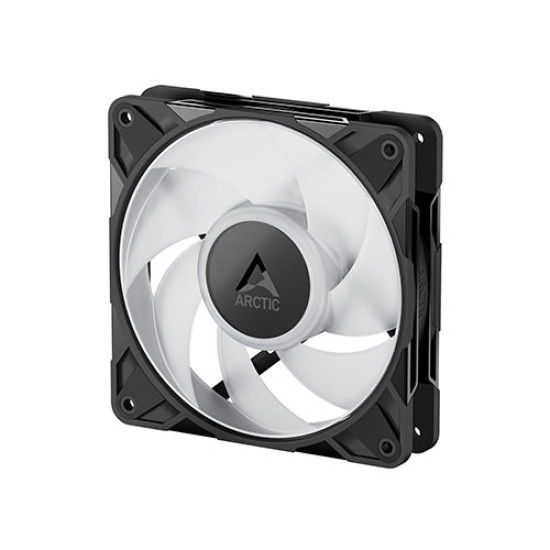

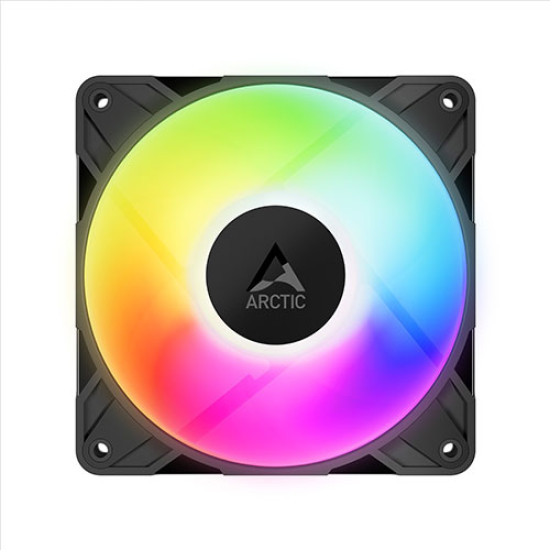

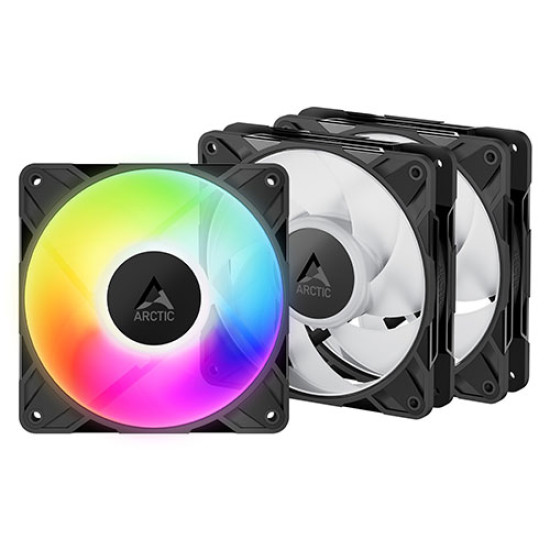

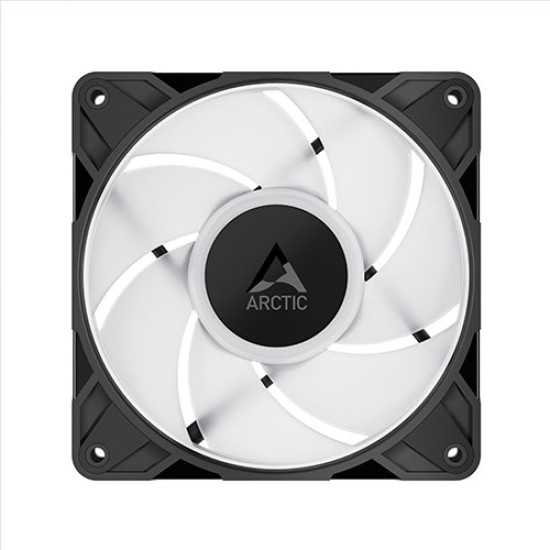

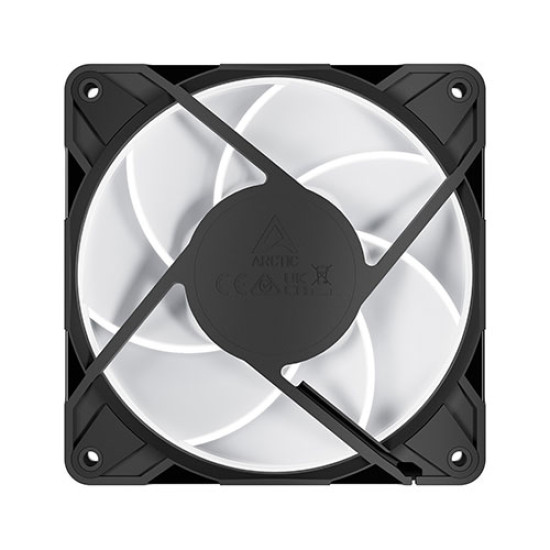

Arctic P12 Pro ARGB Cabinet Fan 3 Pack Black (ACFAN00310A)

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

Specification

Operating Ambient Temperature : 0–40 °C

Dimensions : 120 (L) x 120 (W) x 25 (H) mm

Net Weight : 185 g

Fan Speed : 600–3000 rpm, PWM controlled0 rpm below 5 % PWM

Airflow : 77 cfm | 131 m³/h

Static Pressure : 6.9 mmH2O

Fan Bearing : Fluid Dynamic Bearing

Typical Voltage : 12 V DC

Start Up Voltage : 3.3 V DC

Current : 0.33 A

Cable Length : 400 mm + 80 mm Daisy-Chain Cable

Connector : 4-Pin Fan Plug + 4-Pin Socket

LEDs : 12x A-RGB Gen2 LEDs

Current | Voltage : 0.40 A | 5 V DC

Connector : 3-Pin A-RGB Plug + 3-Pin Socket
