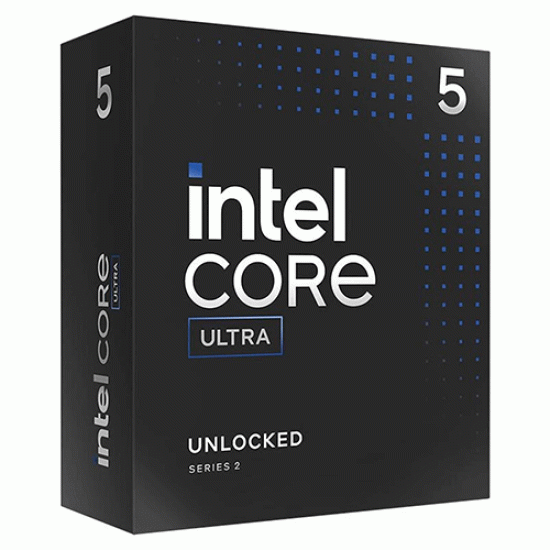

Intel Core Ultra 5 Processor 225 4.9GHz Processor

Specification

CPU Specifications

Total Cores : 10

# of Performance-cores : 6

# of Efficient-cores : 4

# of Low Power Efficient-cores : 0

Total Threads  : 10

Max Turbo Frequency  : 4.9 GHz

Performance-core Max Turbo Frequency : 4.9 GHz

Efficient-core Max Turbo Frequency : 4.4 GHz

Performance-core Base Frequency : 3.3 GHz

Efficient-core Base Frequency  : 2.7 GHz

Cache : 20 MB Intel® Smart Cache

Total L2 Cache : 22 MB

Processor Base Power : 65 W

Maximum Turbo Power : 121 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes

AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography : TSMC N3B

Supplemental Information

Marketing Status : Launched

Launch Date : Q1'25

Embedded Options Available : Yes

Use Conditions : PC/Client/Tablet

Memory Specifications

Max Memory Size (dependent on memory type) : 256 GB

Memory Types : Up to DDR5 6400 MT/s

Max # of Memory Channels : 2

ECC Memory Supported ‡ : No

GPU Specifications

GPU Name‡ : Intel® Graphics

Graphics Base Frequency : 300 MHz

Graphics Max Dynamic Frequency : 1.8 GHz

GPU Peak TOPS (Int8) : 4

Graphics Output : eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL

Xe-cores : 2

Max Resolution (HDMI)‡ :

4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)

7680 x 4320 @ 60Hz (HDMI 2.1 FRL)

Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡ : 3840 x 2400 @ 120Hz

DirectX* Support : 12

OpenGL* Support : 4.5

OpenCL* Support : 3

H.264 Hardware Encode/Decode : Yes

H.265 (HEVC) Hardware Encode/Decode : Yes

AV1 Encode/Decode : Yes

Intel® Quick Sync Video : Yes

# of Displays Supported ‡ : 4

Device ID : 0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU : Yes

AI Software Frameworks Supported by GPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications

NPU Name‡ : Intel® AI Boost

NPU Peak TOPS (Int8) : 13

Sparsity Support : Yes

Windows Studio Effects Support : Yes

AI Software Frameworks Supported by NPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision : 4

Max # of DMI Lanes : 8

Intel® Thunderbolt™ 4 : Yes

Scalability : 1S Only

PCI Express Revision : 5.0 and 4.0

PCI Express Configurations ‡ : Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

Max # of PCI Express Lanes : 24

Package Specifications

Sockets Supported  : FCLGA1851

Thermal Solution Specification  : PCG 2022C

Max Operating Temperature  : 105 °C

Package Size : 45 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator : 3.5

Intel® Thread Director : Yes

Intel® Speed Shift Technology : Yes

Intel® Turbo Boost Technology ‡ : 2.0

Intel® Hyper-Threading Technology ‡ : No

Intel® 64 ‡ : Yes

Instruction Set : 64-bit

Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States : Yes

Enhanced Intel SpeedStep® Technology : Yes

Thermal Monitoring Technologies : Yes

Intel® Volume Management Device (VMD) : Yes

Security & Reliability

Intel® Threat Detection Technology (TDT) : Yes

Intel® Active Management Technology (AMT) ‡ : No

Intel® Standard Manageability (ISM) ‡ : Yes

Intel® Remote Platform Erase (RPE) ‡ : No

Intel® One-Click Recovery ‡ : No

Intel® Secure Key  : Yes

Intel® Control-Flow Enforcement Technology : Yes

Intel® Total Memory Encryption - Multi Key : No

Intel® AES New Instructions : Yes

Intel® Trusted Execution Technology ‡ : Yes

Execute Disable Bit ‡ : Yes

Intel® OS Guard : Yes

Intel® Boot Guard : Yes

Mode-based Execute Control (MBEC) : Yes

Intel® Stable IT Platform Program (SIPP) : No

Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ : No

Intel® Virtualization Technology (VT-x) ‡ : Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes

Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes
