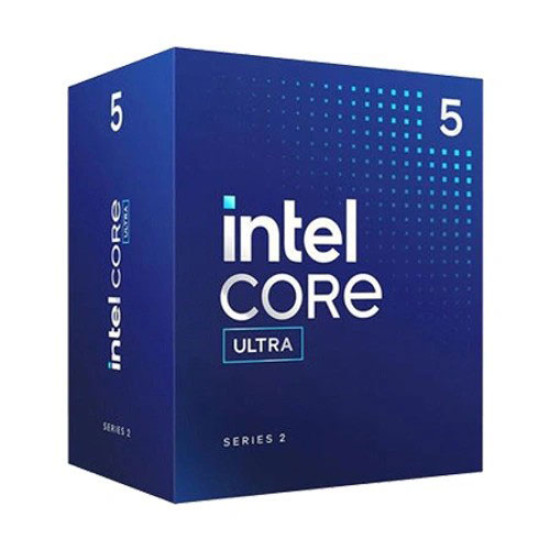

Intel Core Ultra 5 225F 4.9GHz Processor

Specification

Essentials

Product Collection : Intel® Core™ Ultra Processors (Series 2)

Code Name : Products formerly Arrow Lake

Vertical Segment : Desktop

Processor Number  : 225F

Overall Peak TOPS (Int8)  : 19

Recommended Customer Price  : $221.00-$231.00

CPU Specifications

Total Cores  : 10

# of Performance-cores : 6

# of Efficient-cores : 4

# of Low Power Efficient-cores : 0

Total Threads  : 10

Max Turbo Frequency  : 4.9 GHz

Performance-core Max Turbo Frequency  : 4.9 GHz

Efficient-core Max Turbo Frequency  : 4.4 GHz

Performance-core Base Frequency  : 3.3 GHz

Efficient-core Base Frequency  : 2.7 GHz

Cache  : 20 MB Intel® Smart Cache

Total L2 Cache : 22 MB

Processor Base Power  : 65 W

Maximum Turbo Power  : 121 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU  : Yes

AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography  : TSMC N3B

Supplemental Information

Marketing Status  : Launched

Launch Date  : Q1'25

Embedded Options Available  : No

Use Conditions  : PC/Client/Tablet

Datasheet : View now

Memory Specifications

Max Memory Size (dependent on memory type)  : 256 GB

Memory Types  : Up to DDR5 6400 MT/s

Max # of Memory Channels  : 2

ECC Memory Supported ‡  : No

GPU Specifications

Graphics Output  : n/a

Xe-cores : 0

Intel® Quick Sync Video  : No

# of Displays Supported ‡ : 0

NPU Specifications

NPU Name‡ : Intel® AI Boost

NPU Peak TOPS (Int8)  : 13

Sparsity Support : Yes

Windows Studio Effects Support : Yes

AI Software Frameworks Supported by NPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision : 4

Max # of DMI Lanes : 8

Intel® Thunderbolt™ 4  : Yes

Scalability : 1S Only

PCI Express Revision  : 5.0 and 4.0

PCI Express Configurations ‡  : Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

Max # of PCI Express Lanes   : 24

Package Specifications

Sockets Supported  : FCLGA1851

Thermal Solution Specification  : PCG 2022C

Max Operating Temperature  : 105 °C

Package Size : 45 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator : 3.5

Intel® Thread Director  : Yes

Intel® Speed Shift Technology  : Yes

Intel® Turbo Boost Technology ‡  : 2.0

Intel® Hyper-Threading Technology ‡  : No

Intel® 64 ‡  : Yes

Instruction Set  : 64-bit

Instruction Set Extensions  : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States  : Yes

Enhanced Intel SpeedStep® Technology  : Yes

Thermal Monitoring Technologies  : Yes

Intel® Volume Management Device (VMD)  : Yes

Security & Reliability

Intel® Threat Detection Technology (TDT) : Yes

Intel® Active Management Technology (AMT) ‡  : No

Intel® Standard Manageability (ISM) ‡  : Yes

Intel® Remote Platform Erase (RPE) ‡ : No

Intel® One-Click Recovery ‡ : No

Intel® Secure Key  : Yes

Intel® Control-Flow Enforcement Technology  : Yes

Intel® Total Memory Encryption - Multi Key : No

Intel® AES New Instructions  : Yes

Intel® Trusted Execution Technology ‡  : Yes

Execute Disable Bit ‡  : Yes

Intel® OS Guard : Yes

Intel® Boot Guard  : Yes

Mode-based Execute Control (MBEC)  : Yes

Intel® Stable IT Platform Program (SIPP)  : No

Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ : No

Intel® Virtualization Technology (VT-x) ‡  : Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡  : Yes

Intel® VT-x with Extended Page Tables (EPT) ‡  : Yes
