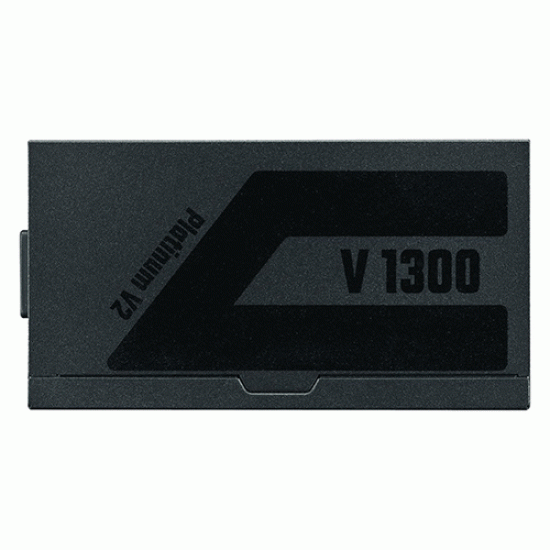

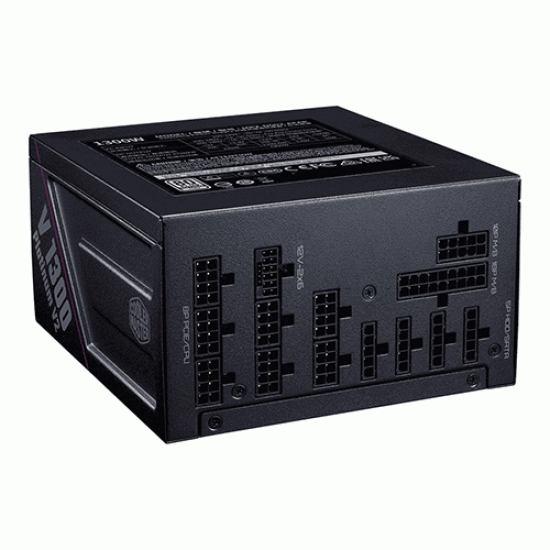

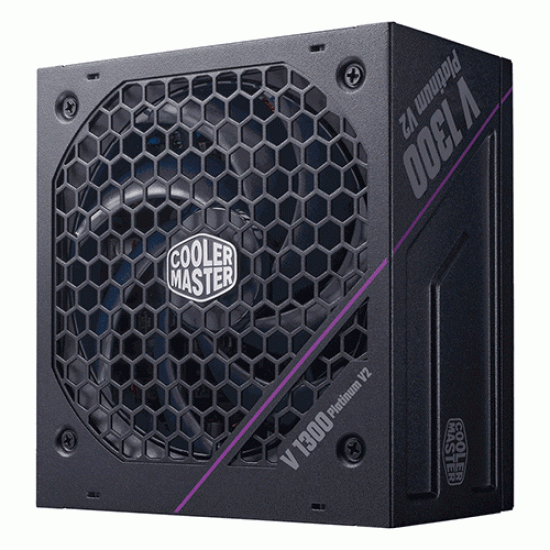

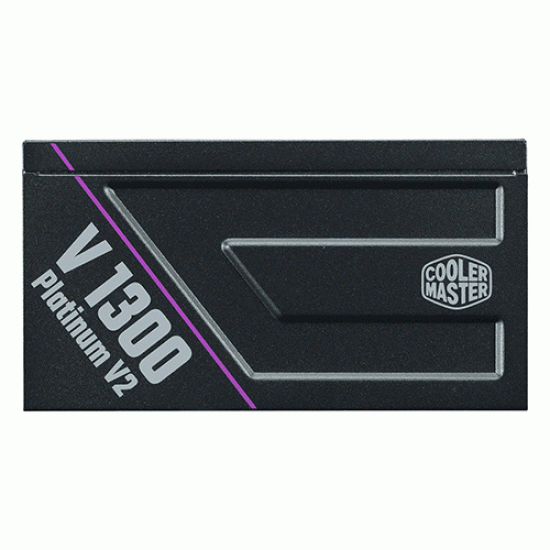

Cooler Master V Platinum 1300W V2 80 Plus Platinum Fully Modular ATX 3.1 Power Supply (MPZ-D002-AFAP-BIN)

QUIETLY SUPREME

V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.

MOBIUS FAN ENHANCES THERMAL PERFORMANCE AND A LONGER LIFESPAN

An ultra-quiet Mobius fan featuring high-performance oil reflow, an innovative ring blade design, and accelerated pressure air vents provides improved noise levels and advanced thermal performance.

OIL FLOWS BACK TO THE SEALED BEARING, ENSURING CONSTANT LUBRICATION.

A loop dynamic bearing with a thick oil coating ensures stable performance, prolongs the fan's lifespan, and effectively reduces noise.

SILENT FAN PERFORMANCE WITH A ZERO SPEED MODE

A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.

ADVANCED HEAT DISSIPATION

Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.

CERTIFIED EFFICIENCY

An interleaved PFC decreases power loss and improves efficiency by inimizing current, reducing interference, and reducing output capacitor ripple current.

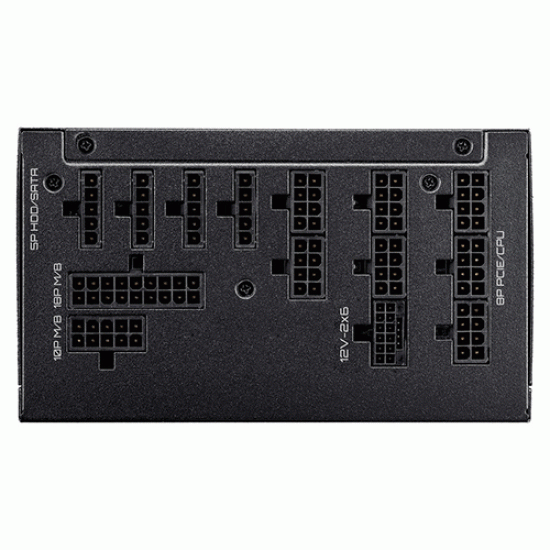

FULLY MODULAR CABLING

A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.

Specification

ATX Version : ATX 12V Ver. 3.1

PFC : Active PFC

Input Voltage : 100-240V

Input Current : 15-7A

Input Frequency : 50-60Hz

Dimensions (L x W x H) : 160 x 150 x 86 mm

Fan Size : 135mm

Fan Bearing : LDB

Fan Speed : 2400±10% RPM

Efficiency : ≥ 92% @ Typical Load

80 PLUS Rating : 80 PLUS Platinum

ErP 2014 Lot 3 : Yes

Operating Temperature : 0-50°C

Power Good Signal : 100 - 150 ms

Hold Up Time : ≥ 16ms

MTBF : >100,000 Hours

Protections : OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

Regulatory : cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

ATX 24 Pin Connectors : 1

EPS 4+4 Pin Connectors : 1

EPS 8 Pin Connector : 1

SATA Connectors : 16

Peripheral 4 Pin Connectors : 4

PCI-e 6+2 Pin Connectors : 5

12V-2x6 Connectors : 1

Series : V Platinum Series

80 Plus Efficiency : Platinum

Modular : Fully Modular

Category : Above 750W

Form Factor : ATX

Watts : 1300W
