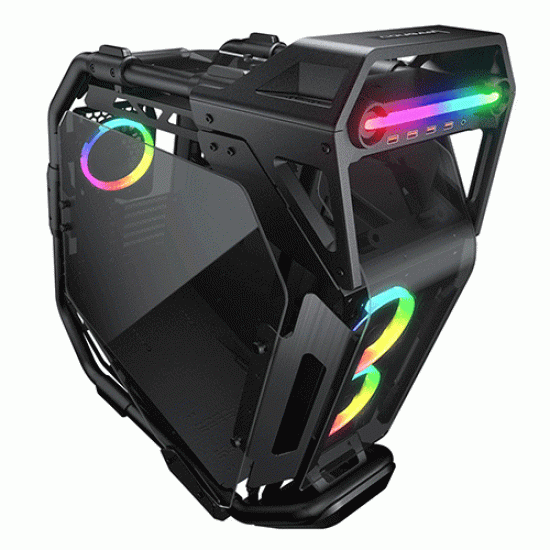

Cougar CRATUS Mid Tower Cabinet (CGR-5LMSB)

Creativity is Your Superpower

Fully loaded with an imposing variety of bleeding-edge innovations and customization features, the Cratus lets you go as far as your imagination takes you.

Precision Meets Art

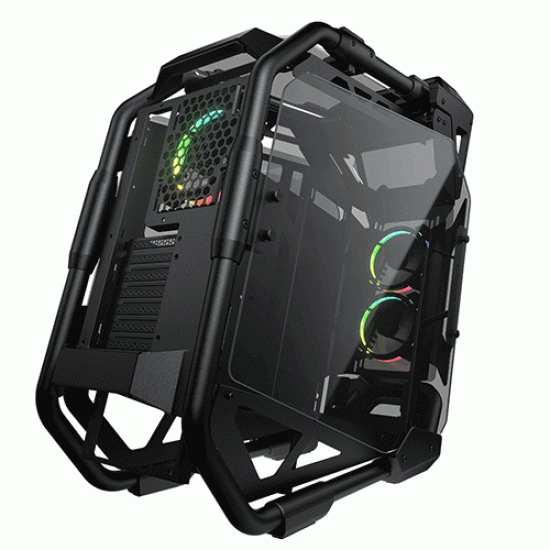

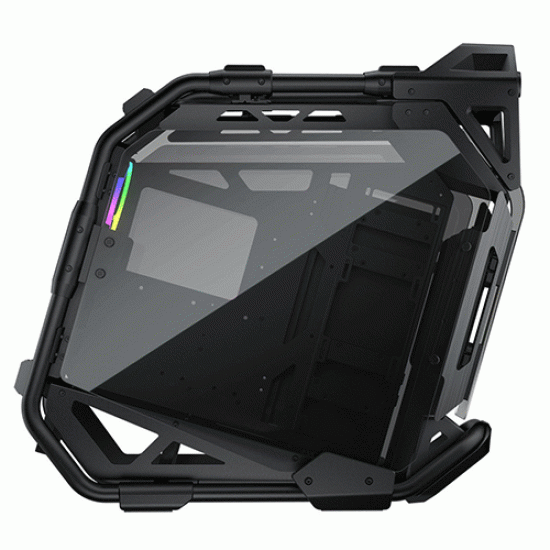

The Cratus combines precision-tooled steel tubes with contoured, tempered glass in a synthesis of sculpture and zero-deviance craftsmanship. Fully transparent panels showcase an abundance of space for high-end components and infinite modding options.

Convection Dynamics

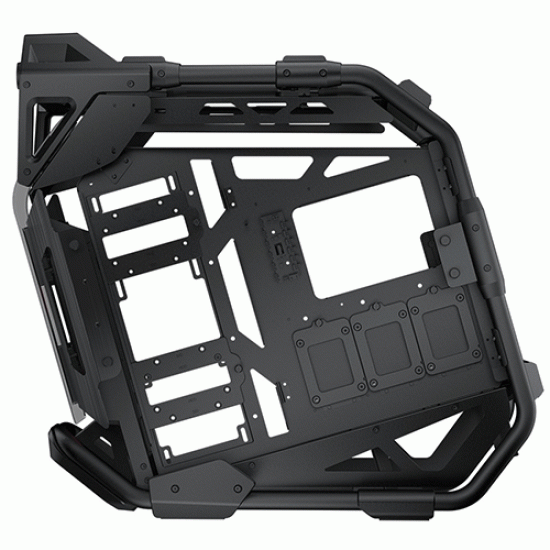

Inspired by the principles of heat convection, an elevated angle is engineered into the interior layout, delivering superior thermal performance and airflow as well as providing extra space for the PSU.

Strength and Beauty

Functionality is seamlessly integrated with aesthetics into the Cratus architecture: sturdy connectors and easy-carry handles blend organically into its structure, offering stability and strength without compromising its striking looks.

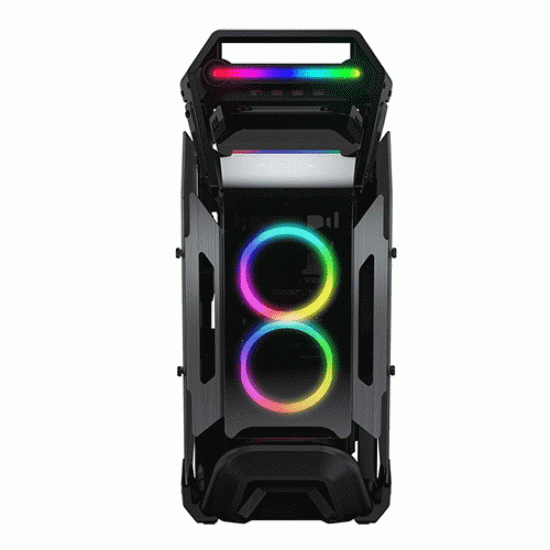

Dynamic Lighting

A distinctive lightbar accents the uniquely minimal bezel and a dedicated RGB button gives you total control of a dazzling array of lighting effects. The built-in LED controller is compatible with the motherboard’s 5V ARGB connection for system-wide lighting synchronization.

Limitless Build Capacity

With excellent support for an E-ATX motherboard, 460mm graphics cards, two 3.5” HDDs and three 2.5” SSDs, the mighty Cratus can house even the most extreme system builds.

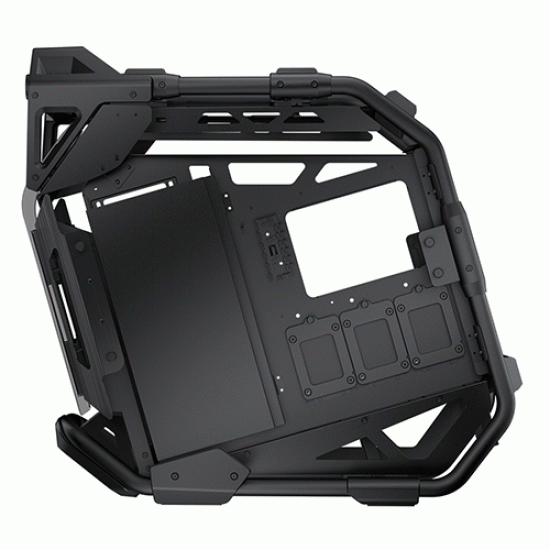

Peak Cable Management

Making it simple and fast to route cables into an ample 45mm storage space through a hinged cover allows you to show off an unobstructed, clean view of your build.

Total Cooling. Total Freedom.

The open-framed design supports up to 360mm water cooling radiators, a 190mm CPU cooler and 9 fans: the ability to optimize your cooling system with unparalleled freedom protects your rig from overheating during even the most intense sessions.

Specification

Product Name : Cratus

Model No. : CGR-5LMSB

Case Form Factor : Mid Tower

Motherboard Type : Mini ITX / Micro ATX / ATX / CEB / E-ATX

Dimensions (WxHxD) :

283 x 636 x 635 (mm)

11.1 x 25 x 25 (in)

I/O Panel :

Type C Gen 2 (Key A 20-pin connector) x 1, USB 3.0 x 4,

4 Pole Headset Audio Jack x1, RGB Button

3.5" Drive Bay : 2

2.5" Drive Bay : 3 + 2 (converted from 3.5" drive bays) / (3 SSD trays included)

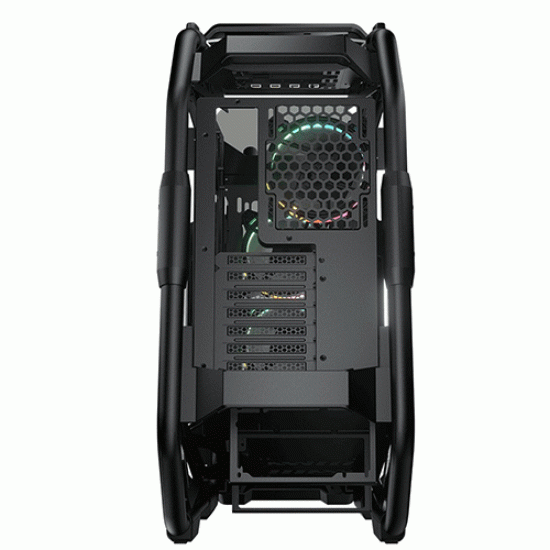

Expansion Slots : Horizontal : 7 / Vertical : 4 (install with a vertical bracket in the accessory kit)

Vertical GPU Support : Yes

Cooling Fan Support

Front : 120mm x 2 / 140mm x 2

Top : 120mm x 3 / 140mm x 2

M/B Side : 120mm x 3

Rear : 120mm x 1

Pre-installed Fans :

Front : 120mm ARGB fan x 2

Rear : 120mm ARGB fan x 1

Speed : 1000 ± 100 RPM

Connector : 5V 3 Pin (ARGB) / 3 Pin (Fan)

Maximun Number of Fans : 9 Max.

Water Cooling Support :

Front : 280mm / 240mm / 140mm / 120mm

Top : 360mm / 280mm / 240mm / 140mm / 120mm

M/B Side : 360mm / 240mm / 120mm

Transparent Panel : Tempered Glass x 4

Onboard Lighting System : Yes

RGB Sync with M/B : Yes

Max. Graphics Card Length :

460 (mm) / 18.1 (in) without fans and radiator at M/B side

325 (mm) / 12.8 (in) with fans and radiator at M/B side

Max. CPU Cooler Height : 190 (mm) / 7.5 (in)

Max. PSU Length : 200 (mm) / 7.9 (in)
