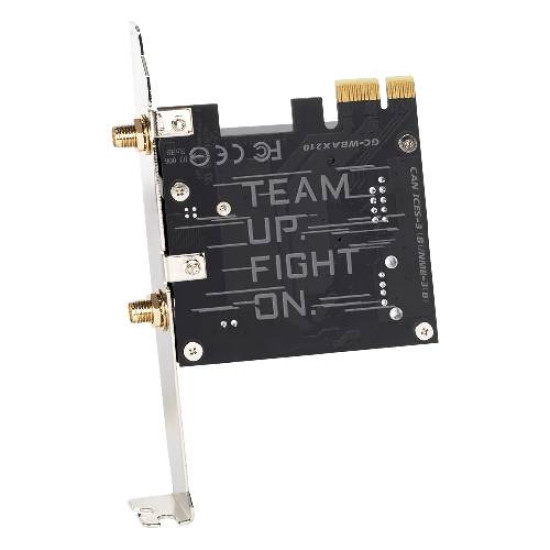

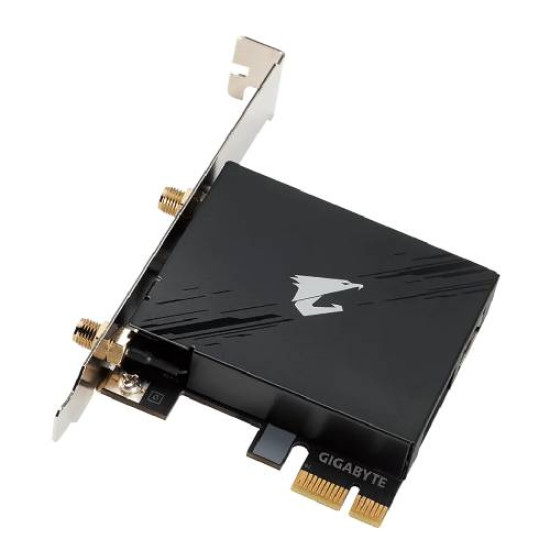

Gigabyte PCIe Expansion Card (GC-WBAX210)

GC-WBAX210

Intel® WI-FI 6E AX210 module built-in

Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies

Support dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bands

IEEE 802.11.acR2+ax compliant

High speed wireless connection up to 2400Mbps

Fully qualified BLUETOOTH 5.2

MU-MIMO TX/RX

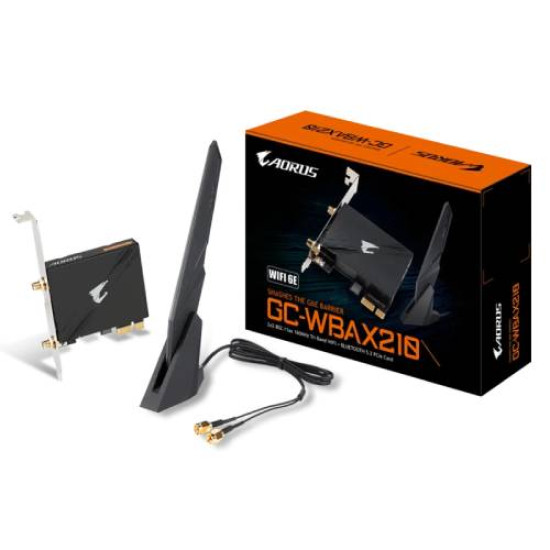

Paired with AORUS high performance 2Tx2R antenna

PCIe x1 interface card

Smashes the GbE Barrier!

2x2 802.11ax Tri-Band WIFI + BLUETOOTH 5.2 card GC-WBAX210 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Tri-Band WIFI and BLUETOOTH 5.2 connectivity.

AORUS Antenner WIFI Signaa Supports Tri-Band with Bettl

All new antenna supported Tri-band 802.11ax 2.4GHz / 5GHz / 6GHz.

Better signal strength compared to traditional antenna design

AORUS Antenna with smart antenna function for the best WIFI signal transmitting

Multiple angle tilt and magnetic base for the best signal strength direction and location

WIFI 6E Advantage

Spectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.

BLUETOOTH Function

Standard : BLUETOOTH 5.2

WIFI Function

Wireless Alliance*:

Wi-Fi CERTIFIED 6*, CERTIFIED* a/b/g/n/ac WMM*, WMM*-Power Save, WPA3, PMF*, Wi-Fi Direct*, WIFI Agile Multiband.

* Support of Wi-Fi Alliance certifications is OS-dependent.

IEEE WLAN Standard:

IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d ,e ,g ,h ,I ,k , n ,r ,u ,v ,w ,ac ,ax ; Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) HW readiness*

* IEEE 802.11az hardware readiness per expected Wi-Fi Location R2 feature support and based on draft 2.1 of the IEEE 802.11az amendment and is subject to change.

* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country.

Security Features*:

Security Methods - WPA2* ; WPA3 *

Authentication Protocols - 802.1X EAP-TLS,EAP-TTLS/MSCHAPv2, PEAPv0 –MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
