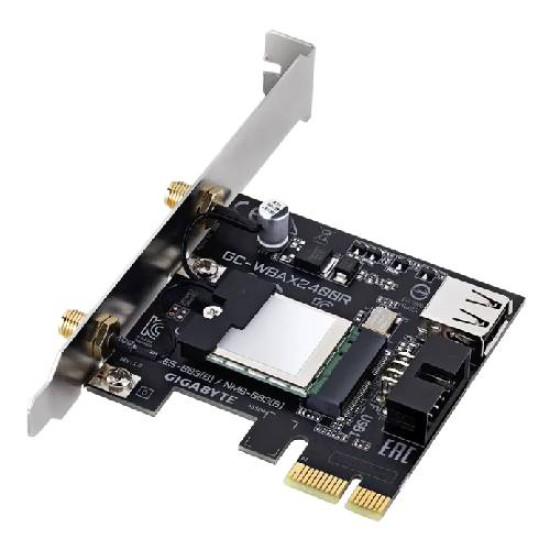

Gigabyte PCIe Expansion Card (GC-WBAX2400R)

GC-WBAX2400R

Realtek RTL8852CE module built in

Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies

High speed wireless connection up to 2400Mbps

Supports up to 160MHz bandwidth in 5GHz and 6GHz bands

BLUETOOTH 5.3 Compatible

Supports MU-MIMO TX/RX

IEEE 802.11 a/b/g/n/ac/ax compliant

Paired with High Performance 2Tx2R Antenna

PCIe x1 Interface Card

Wi-Fi 6E bring you the Ultimate VR experience!

Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.

Wi-Fi 6E compared to Wi-Fi 5 provide…

40% faster speed for smoother gaming/streaming experience

50% higher resolution for video game related content

Better battery life for VR devices

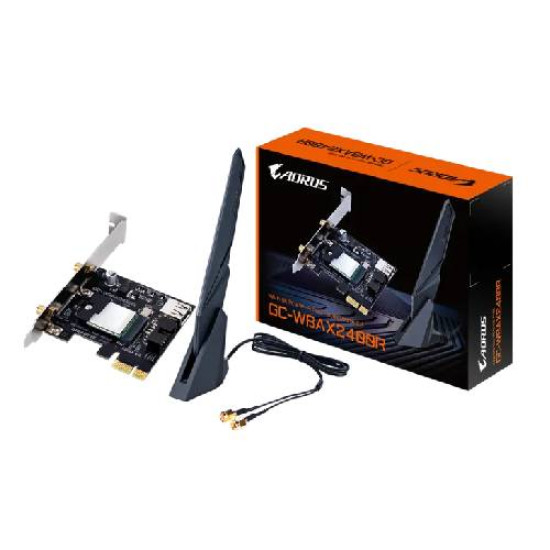

AORUS Antenna Supports Tri-Band with Better Wi-Fi Signal

All new antenna supported Tri-band 802.11ax 2.4GHz / 5GHz / 6GHz. Better signal strength compared to traditional antenna design

AORUS Antenna with smart antenna function for the best WIFI signal transmitting

Multiple angle tilt and magnetic base for the best signal strength direction and location

WIFI 6E Advantage

Spectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before

BLUETOOTH Function

Standard : BLUETOOTH 5.3

WIFI Function

Wireless Alliance*:

Wi-Fi CERTIFIED 6*, CERTIFIED* a/b/g/n/ac WMM*, WMM*-Power Save, WPA3.

* Support of Wi-Fi Alliance certifications is OS-dependent.

IEEE WLAN Standard:

IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d ,e ,h ,I ,k ,r ,v ,w ,ac ,ax.

* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country.

Security Features*:

Security Methods - WPA2* ; WPA3 *
