Cougar MX600 Mini V2 Cabinet (White)

MX600 Mini V2(white)

Maximum Cool. Minimum Size.

Featuring a square-perforated front panel, an airflow-guiding ramp, and support for up to 360mm water cooling, the MX600 Mini V2 packs formidable cooling into a space-efficient small form factor.

Type

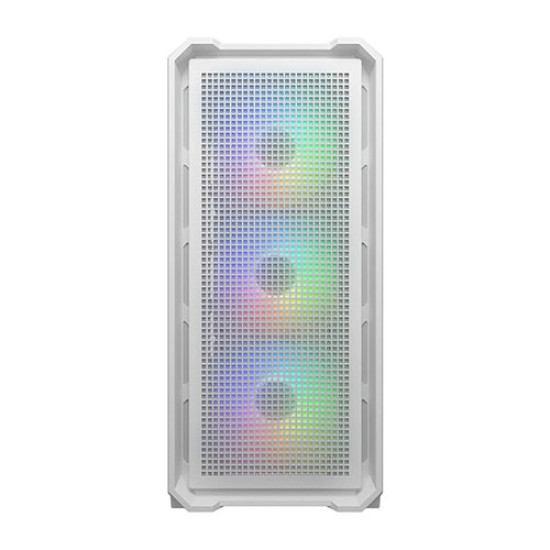

Square-perforated front panels ensure maximum, optimised airflow.

Airflow ramp precisely guides air current to cool components.

Preinstalled ARGB fans: 3x120mm in front and 1x120mm to the rear. Maximum capacity of 6 fans.

Water cooling support: up to 360mm in front OR up to 280mm on top.

Accommodates 360mm GPUs.

USB 3.0 Type-A x 2, 4 pole headset audio jack for fast, versatile device connectivity.

Houses 1 x 3.5” HDD drives and 2+1 2.5” SSD drives (converted from 3.5” drive bay)

Optimized Airflow

The MX600 Mini V2 is inoculated against escalating temperatures with a square-perforated front panel and precision-guided cooling.

11% increase

in airflow area provided by square vs circular perforations in grid alignment.

Airflow ramp

directs airflow with precision, cooling your components where they need it the most.

Undiminished Cooling Capacity

The impressive cooling capability of the MX600 Mini V2 is entirely undiminished by its small size. With preinstalled 3 x 120mm ARGB fans at the front, 1 x 120mm ARGB fan at the rear and a maximum capacity of 6 fans, the MX600 Mini V2 keeps its cool at peak operation.

Performance-ready GPU Support

Accommodating up to 360mm GPUs, the MX600 Mini V2 is more than ready for high-performance builds.

Memory Capacity

The MX600 Mini V2 can house up to 3 x 2.5” SSD drives or 2 x 2.5” SSD and 1 x 3.5” HDD.

I/O Features

The MX600 Mini V2’s I/O panel includes USB 3.0 Type-A x 2 ports and 4 pole headset audio jack for versatile device connectivity.

Specifications

Product Name :MX600 Mini V2 / MX600 Mini V2 (White)

Case Size  : Mini Tower

Motherboard Support Mini :  ITX / Micro ATX

Dimensions :  (WxHxD)210 x 450 x 415 (mm)

8.3 x 17.7 x 16.3 (in)

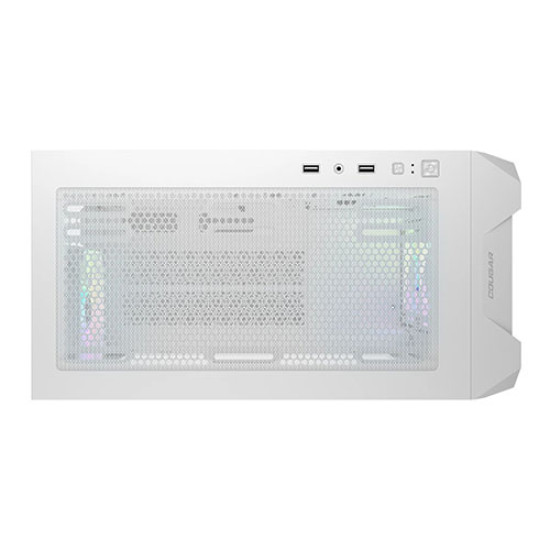

I/O Panel : USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack, RGB Button

3.5" Drive Bay : 1

2.5" Drive Bay : 2+1 (converted from 3.5" drive bays)

Expansion Slots  : 5

Cooling Fan Support Front :  120mm x 3 / 140mm x 2

Top 120mm x 2 / 140mm x 2

Rear : 120mm x 1

Pre-installed Fans : Front 120mm ARGB fan x 3

Rear : 120mm ARGB fan x 1

Speed : 1000 ± 10% RPM

Connector : 5V 3 Pin (ARGB) / 3 Pin (Fan)

Maximun Number of Fans 6

Water Cooling SupportFront :  * 360mm / 280mm / 240mm / 140mm / 120mm

Top * 280mm / 240mm / 140mm / 120mm

Rear : 120mm

RGB Hub Sync with M/B : Yes

Max. Graphics Card Length : 360 (mm) / 14.2 (in)

Max. CPU Cooler Height165(mm) / 6.5(in)

Max. PSU Length 140(mm) / 5.5(in)
