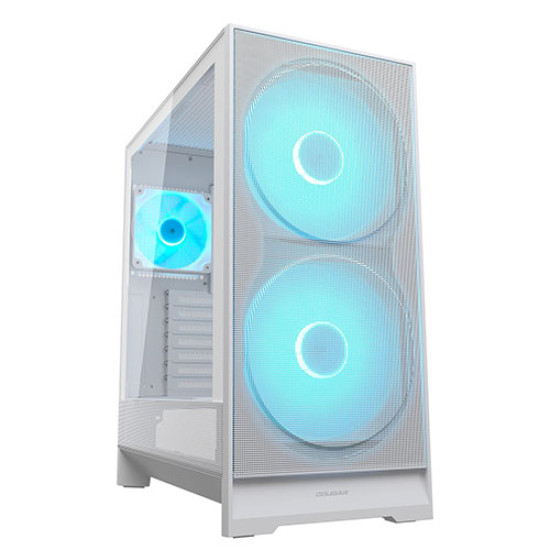

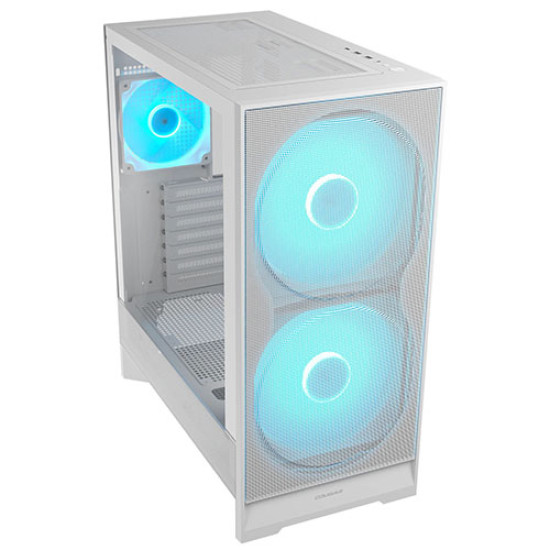

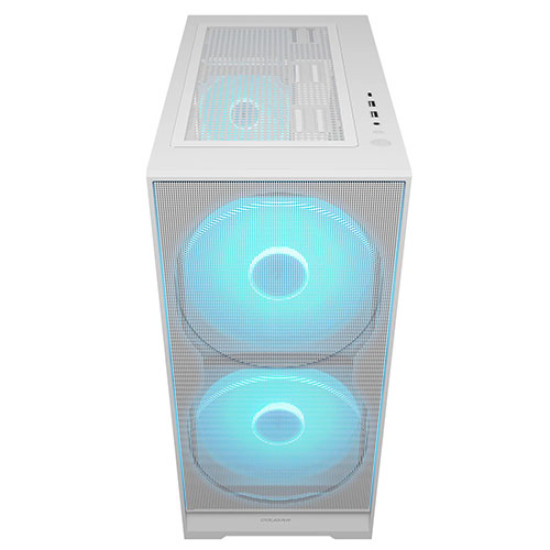

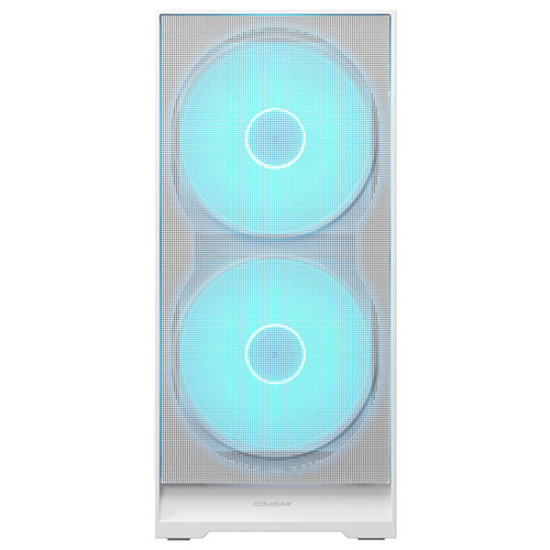

Cougar AIRFACE 180 Mid Tower Case (White)

AIRFACE 180

The Power of 180mm, Doubled.

The Airface 180 redefines out-of-the-box cooling with dual 180mm PWM ARGB front fans and a 120mm rear fan, delivering massive airflow for peak performance

With a magnetic front filter panel for effortless maintenance, a PSU cabin optimally placed for enhanced airflow, and a sleek minimalist aesthetic, the Airface 180 is built to keep its cool.

Pre-installed 2x180mm PWM ARGB front fans and 1x120m PWM ARGB rear fan deliver extreme cooling out of the box, with a total maximum fan capacity of 8 fans.

Front filter panel attaches magnetically for easy maintenance, with recessed finger groove providing easier handling.

Right-offset PSU cabin maximizes airflow space.

Accommodates up to 340mm GPU length.

Compatible with Reverse Connector/Mini ITX/M-ATX/ATX/CEB motherboards.

USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2 for  versatile device connectivity.

Houses 2×3.5” HDD drives and 1+1 2.5” SSD drives (converted from 3.5” drive bays)

Extreme Cooling Out of the Box

Pre-installed with 2x180mm PWM ARGB front fans and 1x120mm PWM ARGB rear fan, the Airface 180 delivers extreme cooling right out of the box.

Expand your cooling setup to a total of 8 fans to keep your system performing at its best when the game heats up.

Optimal PSU Cabin Placement

The PSU cabin is offset to the right of the case in contrast to the center placement of conventional PC case design, allowing for extra airflow from the side ventilation panel.

Specifications

Product NameAirface :  180 / Airface 180 (White)

Case Form Factor : Mid Tower

Motherboard Type : Mini ITX / Micro ATX / ATX / CEB

Dimensions (WxHxD) : 220 x 483 x 410 (mm)

8.7 x 19 x 16.1 (in)

I/O Panel USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button

3.5" Drive Bay : 2

2.5" Drive Bay : 1+1(converted from 3.5" drive bays)

Expansion Slots : 7 (horizontal slots can be converted into vertical slots)

Vertical GPU Support : Yes

Cooling Fan Support : Front 180mm x 2 / 140mm x 2 / 120mm x 3

Top : 140mm x 2/ 120mm x 2

PSU Shroud : 120mm x 2

Rear : 120mm x 1

Pre-installed Fans Front : 180mm ARGB PWM fan x 2

Rear : 120mm ARGB PWM fan x 1

Speed : 180mm ARGB PWM fan : 300-1200 ± 10% RPM

120mm ARGB PWM fan : 1200 ± 10% RPM

Connector : 180mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)

120mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)

Maximum Number of Fans 8:

Water Cooling Support Front 360mm / 280mm / 240mm

Top : 280mm / 240mm

Rear : 120mm

RGB Sync HUB with M/B : Yes

Max. Graphics Card Length : 340 (mm) / 13.4 (in)

Max. CPU Cooler Height : 170(mm)/ 6.7(in)

Max. PSU Length : 160 (mm) / 6.3 (in)
