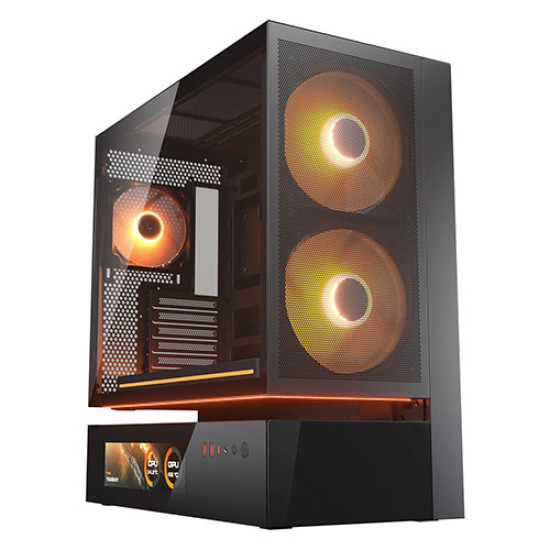

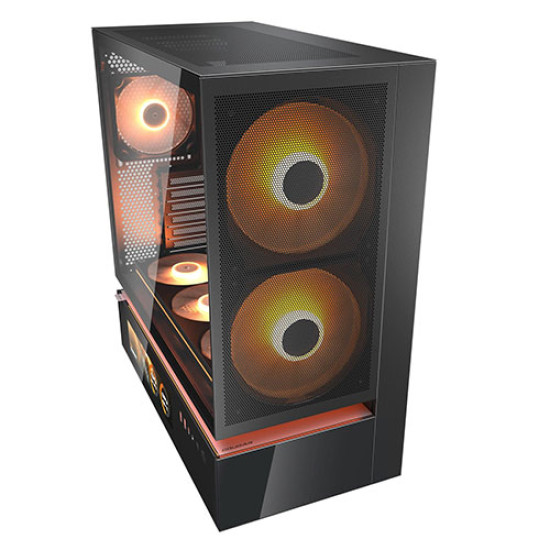

Cougar CFV235 Mesh Vision Black Mid Tower Case

CFV235 Mesh Vision

Float in Form. Flow in Function. Visualize in Motion.

The CFV235 Mesh Vision is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation, preserving a compact footprint without compromising architecturally-enhanced cooling. An integrated 9.16-inch IPS TFT LCD panel provides real-time, software-controlled system monitoring in ultra-crisp 1920x 462 resolution at a 60Hz refresh rate, displaying critical data and customizable visuals.

Paired with a 3-in-1 front panel module—combining mesh, dual 160mm ARGB PWM fans, and a dust filter into a single pre-assembled unit— and immersive display technology, the CFV235 Mesh Vision empowers airflow beyond ordinary dimensions, visualized.

Central Floating Ventilation free-floating separation provides a unique visual identity.

True floating void adds an extra dimension of airflow across 270° of access.

A 3-in-1 front panel module pre-assembles a dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into a single unit for even easier maintenance.

The module uses a pogo pin to connect with the case’s built-in counterpart, minimizing cabling for easy setup and a cleaner view.

9.16-inch IPS TFT LCD delivers real-time readouts and customizable visuals in 1920 x 462 resolution with 60Hz refresh rate, fully accessible from your desktop through control software.

The Aurora RGB lighting strip brings the awe and glory of RGB lighting to the free-floating space.

Accommodates a maximum GPU length of 400mm.

Compatible with Reverse Connector / Mini ITX / Micro ATX / ATX / CEB motherboards.

USB 3.2 Gen 2×2 Type-C (20 Gbps) x 1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.

Houses 2 x 3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays)

True Free-Floating Structural Separation

Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.

270° Airflow Access Within Suspended Space

The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.

Plug and Play With One Module

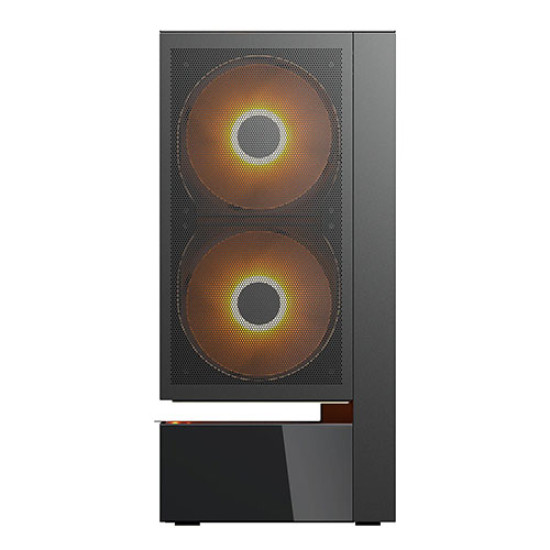

The 3-in-1 front panel module - merging dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into one pre-assembled unit - lets you handle maintenance in one smooth step.

A. Dust Filter

Magnetically attaches to bracket

B. Dual 160mm ARGB PWM fans (pre-installed)

Fits into a bracket pre-attached to the front mesh panel.

C. Front Mesh Panel and Bracket

The front mesh panel and pre-attached bracket form one, complete component.

Smart Pogo Pin Connector

A pogo pin on the 3-in-1 module maintains physical contact with a counterpart built into the CFV case minimizing cabling without compromising critical power and signal relay.

Pre-Installed Dual 160mm ARGB PWM Fans

Let your build hit the ground running: dual 160mm ARGB PWM fans are pre-installed and assimilated into the 3-in-1 front panel module, saving you setup time and providing ready-to-go, optimum cooling.

The Eye in the Machine

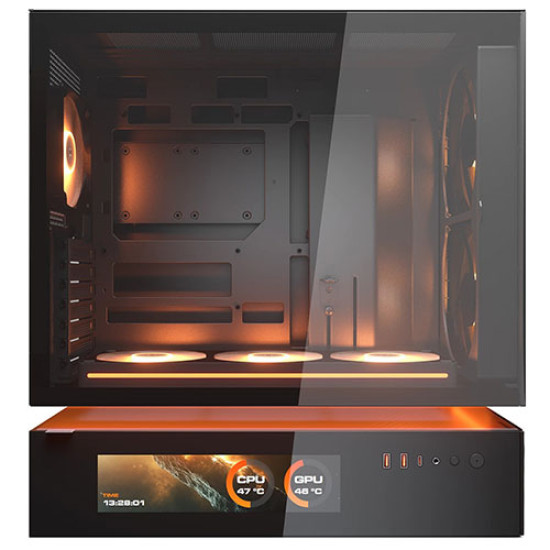

The CFV235 Mesh Vision integrates a 9.16-inch IPS TFT LCD panel for real-time system monitoring in an ultra-crisp 1920 x 462 resolution with a 60Hz refresh rate. Keep an eye on critical data from temperatures to fan speeds, while you personalize the display with JPG, PNG, GIF, or MP4 content, all managed through desktop software that acts as a live command center.

Operational Control

Performance data and absolute control over customisation and display alignment can be instantly and fully accessed through the installable software, equipping you with a command center console directly on your desktop.

Light. Speed

The CFV235 Mesh Vision features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.

Light. Speed

The CFV235 Mesh Vision features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.

Vertical Spatial Efficiency

The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.

Space Engineering

38mm of clearance behind the motherboard tray improves cable management ,offering more room to route and conceal cables of varying thickness. Five adjustable Velcro straps offer versatile options to secure and tidy your layout.

Architectural Strength

A 1.5mm-thick steel frame reinforces the chassis, preserving structural integrity even with the suspended central ventilation design. The result is a bold, open architecture that stays rigid, reliable, and ready for high-performance builds.

Versatile Compatibility

Compatible with reverse connector motherboards and accommodating GPUs of up to 400mm, the CFV235 Mesh Vision is engineered for the gaming rigs of the future. A cover pulls triple duty as airflow guide, cable management facilitator and GPU holder which can be optimally placed according to motherboard specifications: this makes the most efficient use of available space by not only reducing cable clutter but improving performance stability.

Guided Airflow

The cable cover also acts as an airflow ramp to direct airflow with precision, cooling your CPU and graphics card where it's needed most.

Cooling Capacity

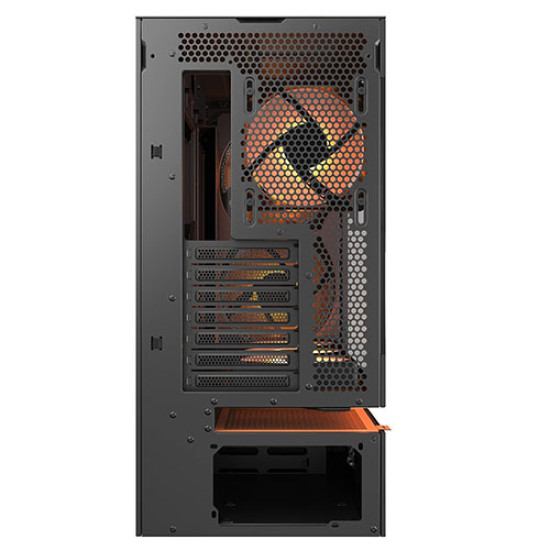

The CFV235 Mesh Vision has a fan capacity of 3x120mm or 2x140mm on the top, 3x120mm on the floor of the main chamber, 2x160mm fans on the front, and 1x120mm on the rear (2x160mm and rear 120 mm ARGB PWM fans are pre-installed). Water cooling support maxes out at 360mm on the top.

Peripheral Vision

The CFV235 Mesh Vision is equipped with USB 3.2 Gen 2x2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.

Full House

Accommodating 2x3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays), versatile storage options gives you plenty of room to expand your storage as needed.

Specification:

Product Name  : CFV235 Mesh Vision / CFV235 Mesh Vision (White)

Case Form Factor : Mid Tower

Motherboard Type : Mini ITX / Micro ATX / ATX / CEB

Dimensions (WxHxD)  :235 x 493 x 460 (mm)

9.3 x 19.4 x 18.1 (in)

9.16" LCD Monitor (1920 x 462 px) Yes

I/O Panel  : USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button

3.5" Drive Bay  :2

2.5" Drive Bay   : 2+2 (converted from 3.5" drive bays)

Expansion Slots : 7

Cooling Fan Support Front : 160mm x 2

Top 120mm x 3 / 140mm x 2

Bottom : 120mm x 3

Rear : 120mm x 1

Pre-installed FansFront : 160mm ARGB PWM fan x 2

Bottom : Unity 360 ARGB PWM Reversed fan x 1

Rear : 120mm ARGB PWM fan x 1

Speed : 160mm ARGB PWM fan: 500-1200 ± 10% RPM

Unity 360 ARGB PWM Reversed fan: 700-1600 RPM ±10%

120mm ARGB PWM fan: 500-1400 ± 10% RPM

Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)

Maximun Number of Fans 9

Water Cooling Support : Top360mm / 280mm / 240mm / 140mm / 120mm

Rear : 120mm

Aurora LED Strip : Yes

PWM and RGB hub Sync with M/B :Yes

Max. Graphics Card Length :400 (mm) / 15.7 (in)

Max. CPU Cooler Height :175 (mm) / 6.9 (in)

Max. PSU Length 200 (mm) / 7.9 (in)
