Cougar AIRFACE FLO RGB Mid Tower Case

AIRFACE FLO RGB

Classic Design. Powerful Cooling.

The Airface Flo RGB continues the “cooling first” design philosophy of the Airface ECO RGB with dual pre-installed 180mm ARGB PWM fronted by a classic mesh panel, delivering powerful airflow with classic style.

Features such as the quick-slide dust filter, removable top panel and detachable front bracket have been inherited from the Airface ECO RGB, as well as a modular front I/O which allows for versatile placement options so that all your ports and buttons are easily accessed regardless of the case’s orientation.

Preinstalled 2 x front 180mm ARGB PWM cooling fans

Classic front mesh panel design

Modular front I/O allows versatile placement

Innovative quick-slide dust filter

Removable top panel facilitates effortless assembly

Supports up to 360mm AIO radiator or a 190mm air cooler

Upgraded vertical GPU space improves cooling

Increased cable routing

Preinstalled Front 180mm ARGB PWM Cooling Fans

Two powerful 180mm ARGB PWM front cooling fans keep your system cool under heavy loads. These fans are preinstalled to provide optimal airflow right out of the box, with speeds that modulate according to your system’s needs. The Airface Flo RGB also comes with a preinstalled 120mm rear exhaust fan.

Classic Mesh Front Panel

The classic good looks of the mesh front panel perfectly complement the dual 180mm ARGB PWM fan-powered cooling.

Modular Front I/O

Whether you prefer your ports and buttons on the top or bottom, this feature allows you to position them wherever they are most convenient for you. This adaptability ensures that all your connections are easily accessible, no matter which way you orient your case. The Airface Flo RGB’s I/O panel includes USB 3.2 Gen 2×1 (10Gbps) Type-C x 1, USB 3.0 Type-A x 2 ports, 4 pole headphone jack, RGB button.

Full Protection from Dust

Filters on the three ventilated sides – front, top, bottom – effectively prevent dust from entering, keeping your components clean. The front quick slide dust filter pulls out without removing the front panel, making maintenance a breeze, and the addition of a rubber tag augments the ease of use by providing a better grip on the filter. The top side filter attaches magnetically while the bottom filter slides out for easy removal.

Easiest. Assembly. Ever.

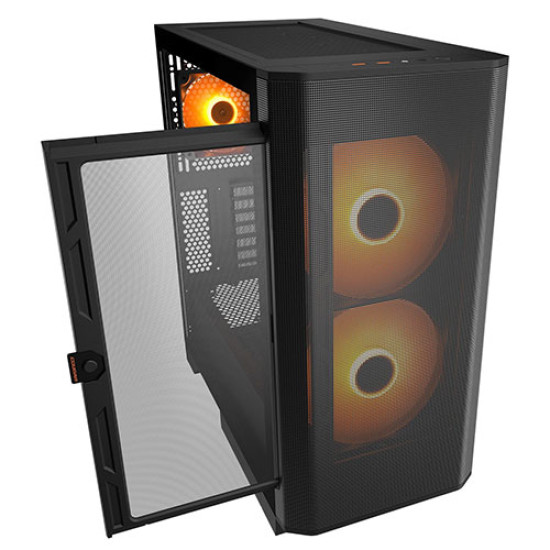

The removable top panel simplifies access to the interior of your case, giving you extra space to make assembling your rig a breeze.

Cooling Capacity

Support for up to a 360mm AIO radiator or an air cooler with a height of up to 190mm with the option to expand your cooling setup to 6 fans keeps your system performing at its best when the game heats up.

Upgraded GPU Space

The Airface Flo RGB accommodates a maximum GPU length of 390mm, which can be set up both horizontally or vertically. Improved vertical GPU space provides more room for unobstructed airflow around the GPU.

Increased Cable Routing

Efficient cable management is crucial for both aesthetics and maintenance. Increased cable routing options allows you to keep your cables neatly organized and out of the way.

Drive Capacity

The Airface Flo RGB houses up to 1 x 2.5” SSD and 2 x 3.5” HDD drives.

Versatile Motherboard Compatibility

The Airface Flo RGB is compatible with Mini-ITX, Micro-ATX, ATX, CEB, and E-ATX motherboards, offering flexibility for various build configurations.

Specification:

Product Name : Airface Flo RGB / Airface Flo RGB(White)

Case Form Factor : Mid Tower

Motherboard Type  : Mini ITX / Micro ATX / ATX / CEB / E-ATX

Dimensions (WxHxD) : 240 x 509 x 480 (mm)

9.4 x 20 x 18.9 (in)

I/O Panel USB 3.2 Gen 2x1 (10Gbps) Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, Reset Button

3.5" Drive Bay : 2

2.5" Drive Bay : 1

Expansion Slots : 7 (horizontal slots can be converted into vertical slots)

Vertical GPU Support : Yes

Cooling Fan Support Front : 180mm x 2

Top : 120mm x 3 / 140mm x 2

Rear : 120mm x 1 / 140mm x 1

Pre-installed Fans Front : 180mm ARGB PWM fan x 2

Rear  : 120mm ARGB PWM fan x 1

Speed  : 180mm ARGB PWM fan: 300-1200 ± 10% RPM

120mm ARGB PWM fan: 600-1200 ± 10% RPM

Connector  :180mm ARGB PWM fan: 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)

120mm ARGB PWM fan: 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)

Maximun Number of Fans : 6

Water Cooling Support

Top : 360 mm / 280 mm / 240 mm / 140 mm / 120 mm

Rear : 140 mm / 120 mm

Max. Graphics Card Length 390 mm / 15.4 in

Max. CPU Cooler Height 190 mm / 7.5 in

Max. PSU Length 200 mm / 7.9 in
